EPC Data

SEAT BELT

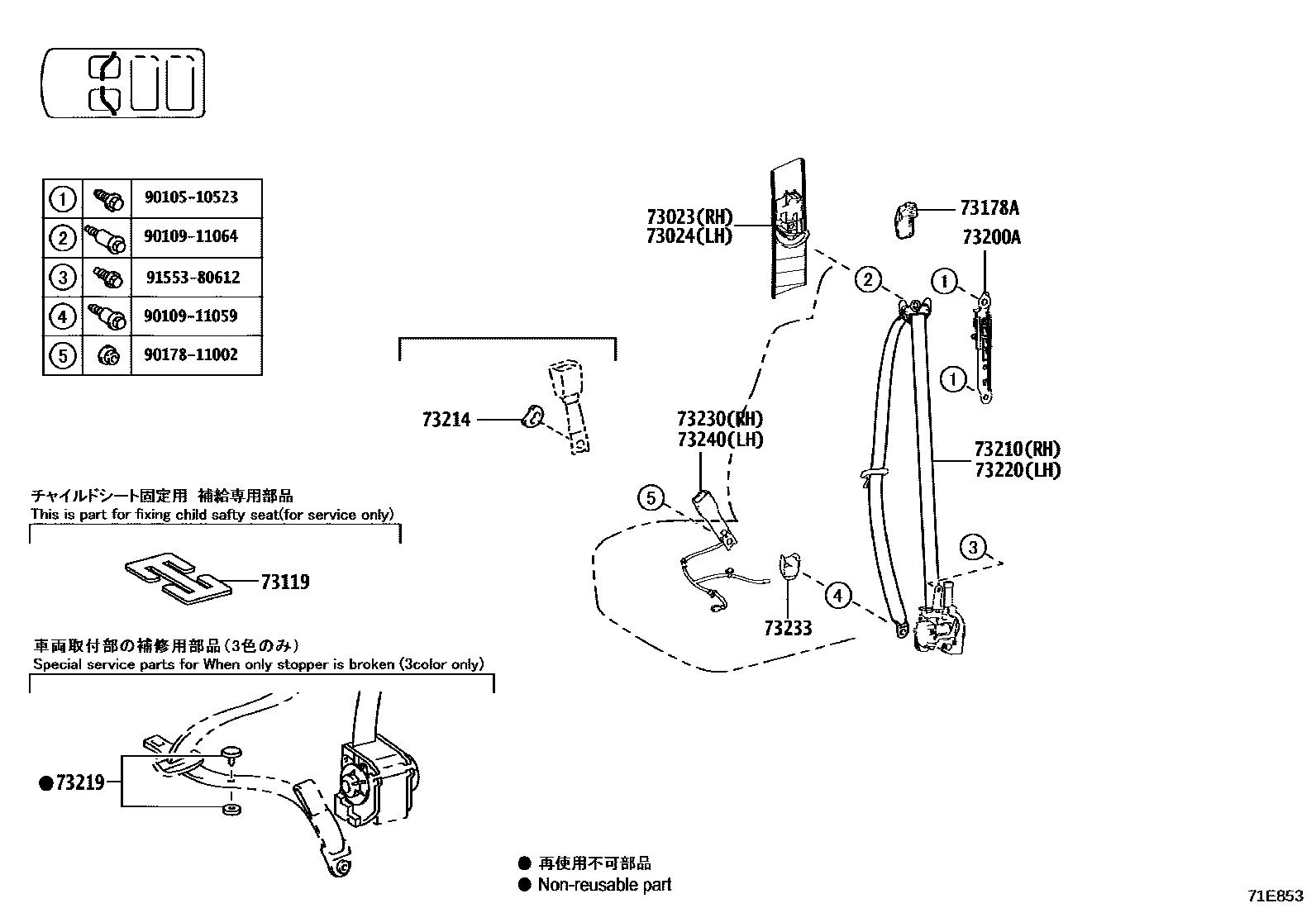

Parts diagram
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-12020-C0i202201
BLACK,TRIM0#,2#
main73023-12020-C0i202201-202501
BLACK,TRIM2#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73023-12020-C0i202201-202501
BLACK,TRIM2#
main73023-12020-C0i202201
BLACK,TRIM0#,2#
73119PLATE, SEAT BELT WEBBING CLIP
main73119-22010i202201-202501
73178ACAP, SEAT BELT ANCHOR COVER
main73178-26010-C0i202201-202501
BLACK,TRIM2#
main73178-26010-C0i202201
BLACK,TRIM0#,2#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-26030-C0i202201-202501
BLACK,TRIM2#
main73200-26030-C0i202201
BLACK,TRIM0#,2#
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-28860-C0i202201-202210
BLACK,TRIM0#,2#
sub73210-28861
main73210-28860-C0i202201-202210
BLACK,TRIM2#
sub73210-28861
main73210-28861-C0i202211-202501
BLACK,TRIM2#
main73210-28861-C0i202211
BLACK,TRIM0#,2#
73214PLATE, FRONT SEAT BELT ANCHOR
main73214-75010i202201-202501
73219STOPPER, TONGUE PLATE
main73219-33010i202201-202501
BLACK
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-28830-C0i202201-202210
BLACK,TRIM0#,2#
sub73220-28831
main73220-28830-C0i202201-202210
BLACK,TRIM2#
sub73220-28831
main73220-28831-C0i202211-202501
BLACK,TRIM2#
main73220-28831-C0i202211
BLACK,TRIM0#,2#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-V1010-C0i202201-202501
BLACK,TRIM2#
main73230-V1010-C0i202201
BLACK,TRIM0#,2#
73233COVER, LAP BELT OUTER ANCHOR
main73233-60020-C1i202201-202501
BLACK,TRIM2#
sub73233-60020
sub73233-35010
main73233-60020-C1i202201
BLACK,TRIM0#,2#
sub73233-60020
sub73233-35010
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-V1010-C0i202201-202501
BLACK,TRIM2#
main73240-V1010-C0i202201
BLACK,TRIM0#,2#
9010510523
main90105-10523
9010911059
main90109-11059
9010911064
main90109-11064
9017811002
main90178-11002
9155380612
main91553-80612

17 parts on this diagram · 4 diagrams in section
