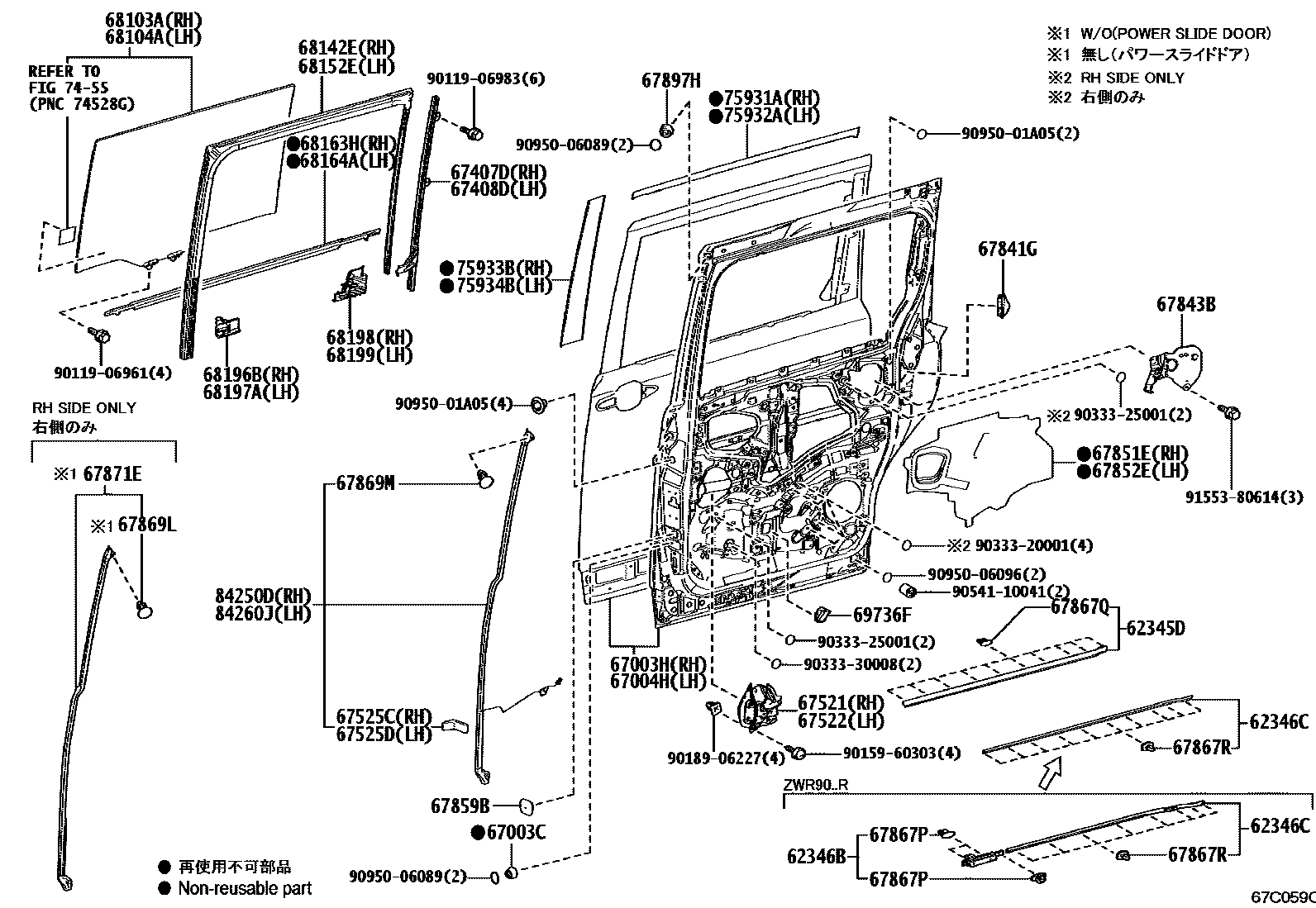

REAR DOOR PANEL & GLASS
62345DWEATHERSTRIP, SLIDE DOOR, NO.3 RH
62346BWEATHERSTRIP, SLIDE DOOR, NO.3 LH
62346CWEATHERSTRIP, SLIDE DOOR, NO.3 LH
67003CCUSHION, REAR DOOR PANEL
67004HDOOR SUB-ASSY, SLIDE, LH
67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67521COVER SUB-ASSY, SLIDE DOOR PANEL, RH
67522COVER SUB-ASSY, SLIDE DOOR PANEL, LH
67525CCOVER, SLIDE DOOR PANEL, LOWER RH
67525DCOVER, SLIDE DOOR PANEL, LOWER LH
67841GCOVER, SLIDE DOOR SERVICE HOLE, RH
67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH
67859BCOVER, REAR DOOR LOWER HOLE
67867PRETAINER, SLIDE DOOR WEATHERSTRIP, NO.1
67867QRETAINER, SLIDE DOOR WEATHERSTRIP, NO.2
67867RRETAINER, SLIDE DOOR WEATHERSTRIP, NO.3
67869LCLIP, REAR DOOR WEATHERSTRIP
67869MCLIP, DOOR WEATHERSTRIP
67871EWEATHERSTRIP, SLIDE DOOR, NO.1 RH
67897HCUSHION, REAR DOOR
68103AGLASS SUB-ASSY, SLIDE DOOR, RH
68104AGLASS SUB-ASSY, SLIDE DOOR, LH
68142ERUN, SLIDE DOOR GLASS, RH
68152ERUN, SLIDE DOOR GLASS, LH
68163HWEATHERSTRIP, REAR DOOR GLASS, OUTER RH
68164AWEATHERSTRIP, REAR DOOR GLASS, OUTER LH
68196BSEAL, REAR DOOR BELT, FRONT RH
68197ASEAL, REAR DOOR BELT, FRONT LH
68198SEAL, REAR DOOR BELT, REAR RH
68199SEAL, REAR DOOR BELT, REAR LH
69736FGUIDE, SLIDE DOOR LOCKING LINK
7455
75931ATAPE, BLACK OUT, OUTER UPPER RH
75932ATAPE, BLACK OUT, OUTER UPPER LH
75933BTAPE, BLACK OUT, OUTER FRONT RH
75934BTAPE, BLACK OUT, OUTER FRONT LH
84250DSENSOR ASSY, POWER SLIDE DOOR, RH
84260JSENSOR ASSY, POWER SLIDE DOOR, LH
9011906961
main90119-06961
9011906983
main90119-06983
9015960303
main90159-60303
9018906227
main90189-06227
9033320001
main90333-20001
9033325001
main90333-25001
9033330008
main90333-30008
9054110041
main90541-10041
9095001A05
main90950-01A05
9095006089
main90950-06089
9095006096
main90950-06096
9155380614
main91553-80614
54 parts on this diagram · 2 diagrams in section
