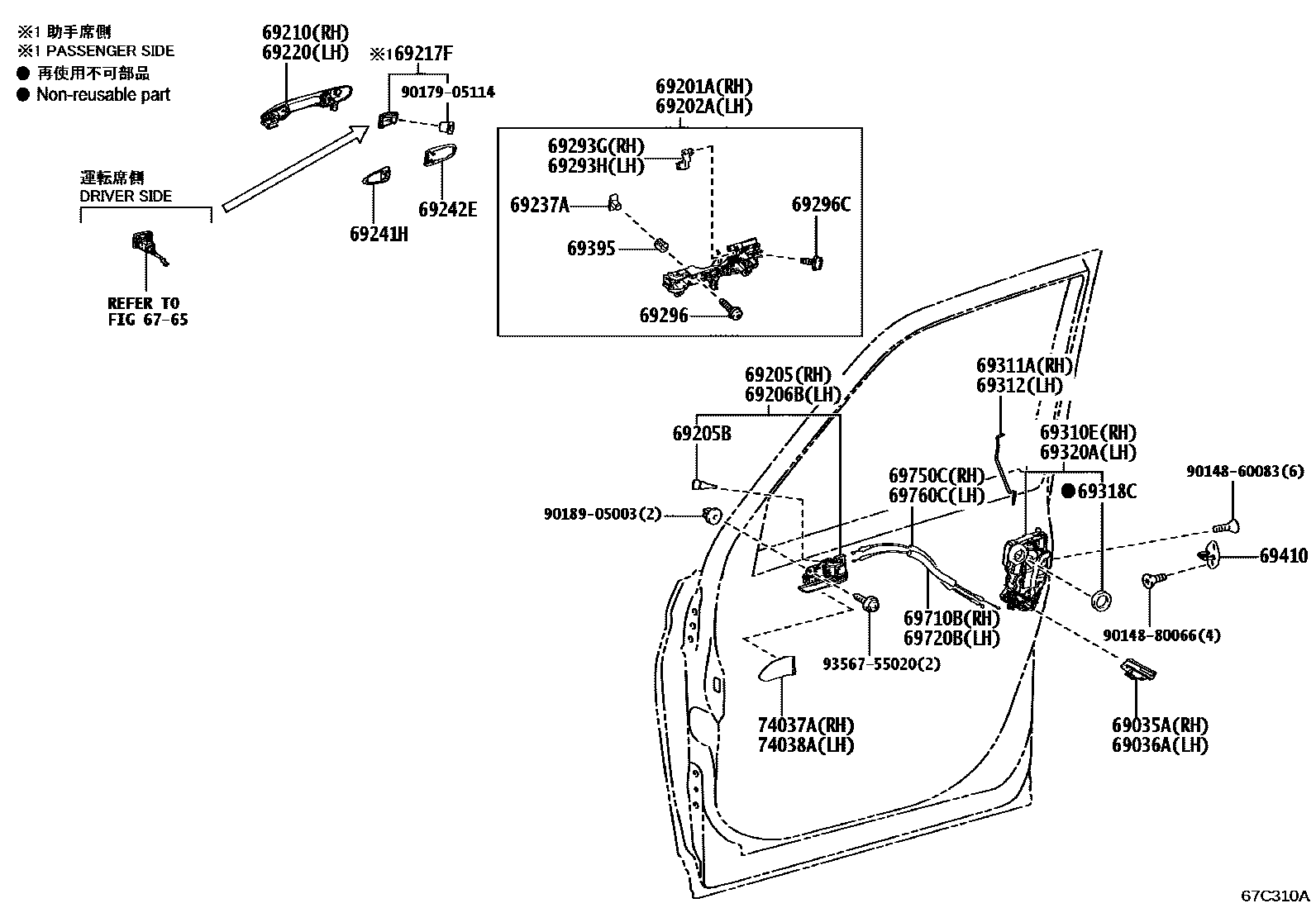

FRONT DOOR LOCK & HANDLE
6765
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM0#,2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,070
METAL STREAM ME,1K0
MASSIVE GRAY,1L6
ATTITUDE BLACK MC.,218
SPARKLING BLACK PEARL CS.,220
GLITTER BLACK GF.,226
RED M.M.,3R3
STEEL BLONDE ME.,4X1
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE PEARL CS.,070
METAL STREAM ME,1K0
MASSIVE GRAY,1L6
ATTITUDE BLACK MC.,218
SPARKLING BLACK PEARL CS.,220
GLITTER BLACK GF.,226
RED M.M.,3R3
STEEL BLONDE ME.,4X1
69237ANUT, FRONT DOOR HANDLE
sub69237-0E010
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
FRAME NO.=8XXXXXX
FRAME NO.=0XXXXXX
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69296CSCREW, DOOR INSIDE HANDLE
69310ELOCK ASSY, FRONT DOOR W/COURTESY LAMP SWITCH, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320ALOCK ASSY, FRONT DOOR W/COURTESY LAMP SWITCH, LH
69395BUSH(FOR DOOR OUTSIDE HANDLE)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
74037ACOVER SUB-ASSY, FRONT DOOR ARMREST, RH
BLACK,TRIM2#
TAUPE,TRIM0#
74038ACOVER SUB-ASSY, FRONT DOOR ARMREST, LH
BLACK,TRIM2#
TAUPE,TRIM0#
9014860083
main90148-60083
9014880066
main90148-80066
9017905114
main90179-05114
9018905003
main90189-05003
9356755020
main93567-55020
36 parts on this diagram · 1 diagram in section
