FLOOR MAT & SILENCER PAD
58401JCLIP(FOR DECK BOAD)
CREAM YELLOW
58410RBOARD ASSY, DECK
BLACK,TRIM2#
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM2#
BLACK,TRIM2#
58511MAT, FLOOR, FRONT
58511ECLIP(FOR FRONT FLOOR MAT)
BLACK
58518BMAT, REAR FLOOR, NO.2
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
58518CMAT, REAR FLOOR, NO.2
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
58520CCLIP(FOR FRONT FLOOR CARPET)
58521BHOOK, FLOOR CARPET
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM2#
58569HCLIP, FRONT FLOOR CAUTION PLATE COVER, NO.1
58595MOULDING, FLOOR CARPET, NO.3
BLACK,TRIM2#
58625DPLATE, REAR FLOOR MAT, NO.1
BLACK,TRIM2#
58625ECLIP(FOR REAR FLOOR MAT PLATE)
58694APLATE, MAT SET, UPPER
58698BPLATE, MAT SET, LOWER
58766COVER, JACK BOX HOLE
64771CCOVER, SPARE WHEEL
64993CBOX, DECK FLOOR, REAR
67935PLATE, BACK DOOR SCUFF
BLACK,TRIM2#

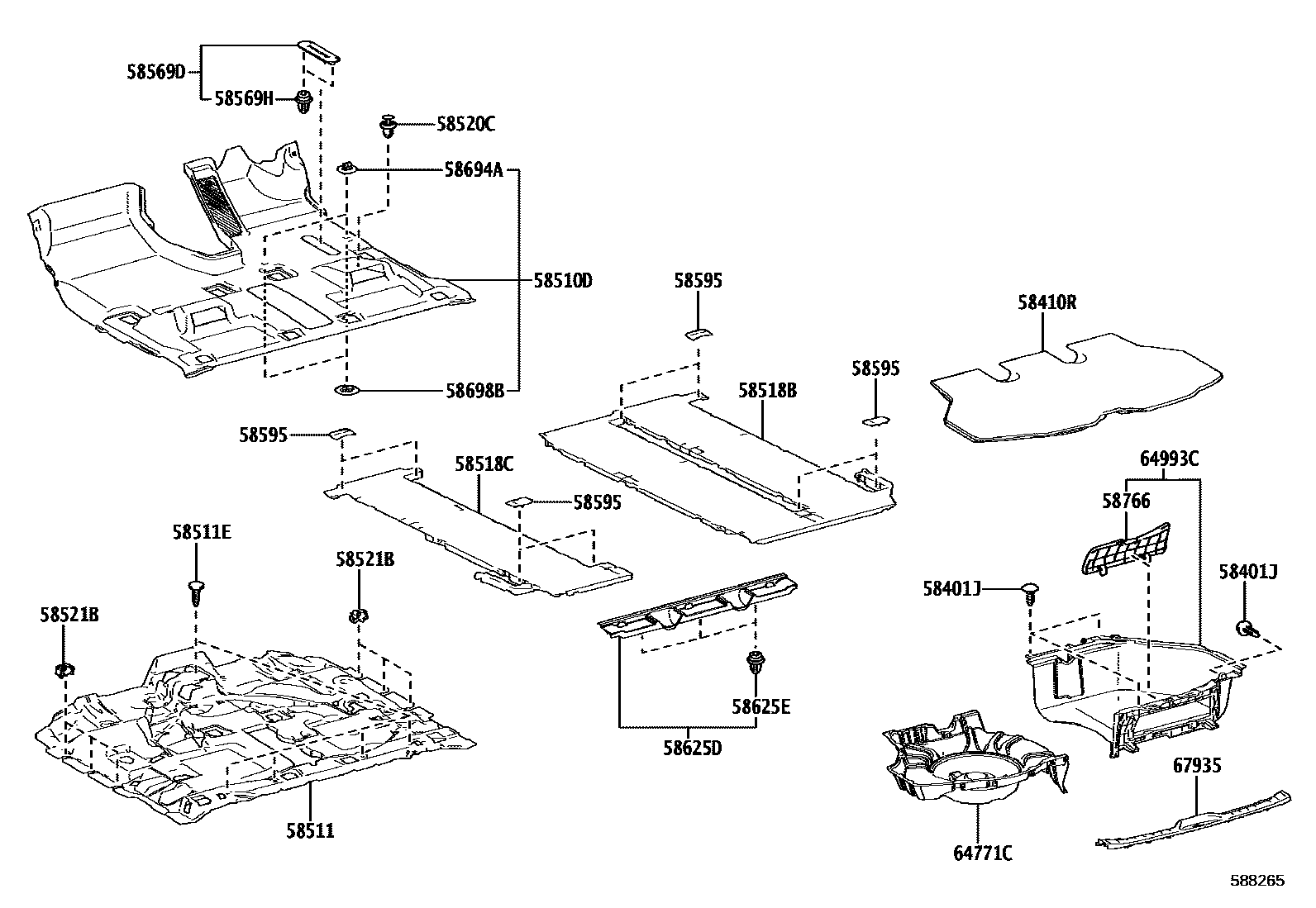

20 parts on this diagram · 2 diagrams in section
