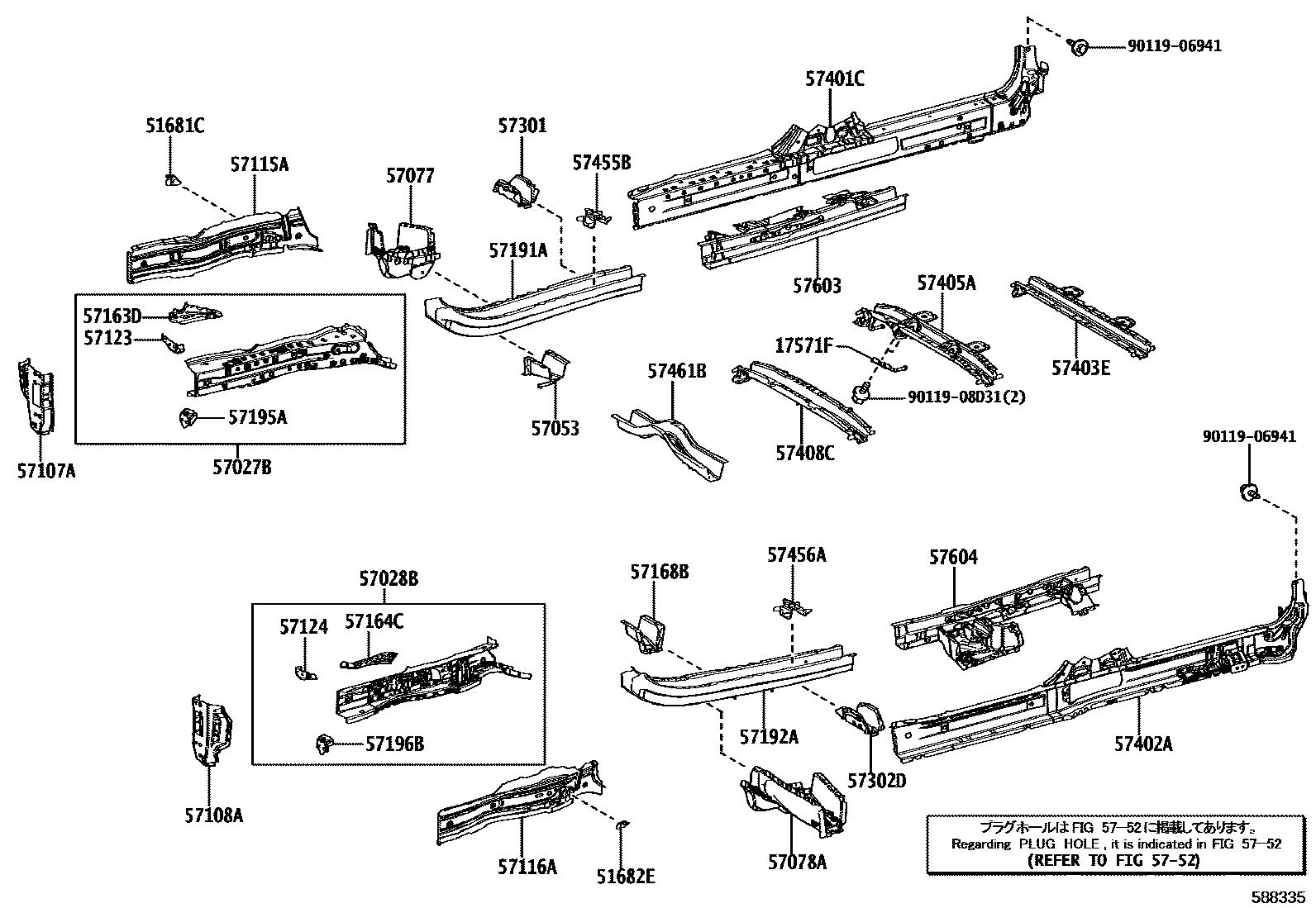

FRONT FLOOR PANEL & FRONT FLOOR MEMBER
17571FBRACKET, EXHAUST PIPE SUPPORT
51681CPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH
51682EPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH
57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH
57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57077BOX SUB-ASSY, TORQUE, FRONT RH
57078ABOX SUB-ASSY, TORQUE, FRONT LH
57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57123SUPPORT, FRONT SIDE MEMBER, RH
57124SUPPORT, FRONT SIDE MEMBER, LH
57163DEXTENSION, FRONT SIDE MEMBER, RH
57164CEXTENSION, FRONT SIDE MEMBER, LH
57168BGUSSET, FRONT CROSSMEMBER SIDE, LH
57191AMEMBER, FRONT SIDE, INNER REAR RH
57192AMEMBER, FRONT SIDE, INNER REAR LH
57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH
57196BREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH
57301OUTRIGGER SUB-ASSY, NO.1 RH
57302DOUTRIGGER SUB-ASSY, NO.1 LH
57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57403EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3
57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2
57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS
57455BGUSSET, FRONT FLOOR CROSSMEMBER, RH
57456AGUSSET, FRONT FLOOR CROSSMEMBER, LH
57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
5752
57603MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH
57604MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH
9011906941
main90119-06941
9011908D31
main90119-08D31
36 parts on this diagram · 2 diagrams in section
