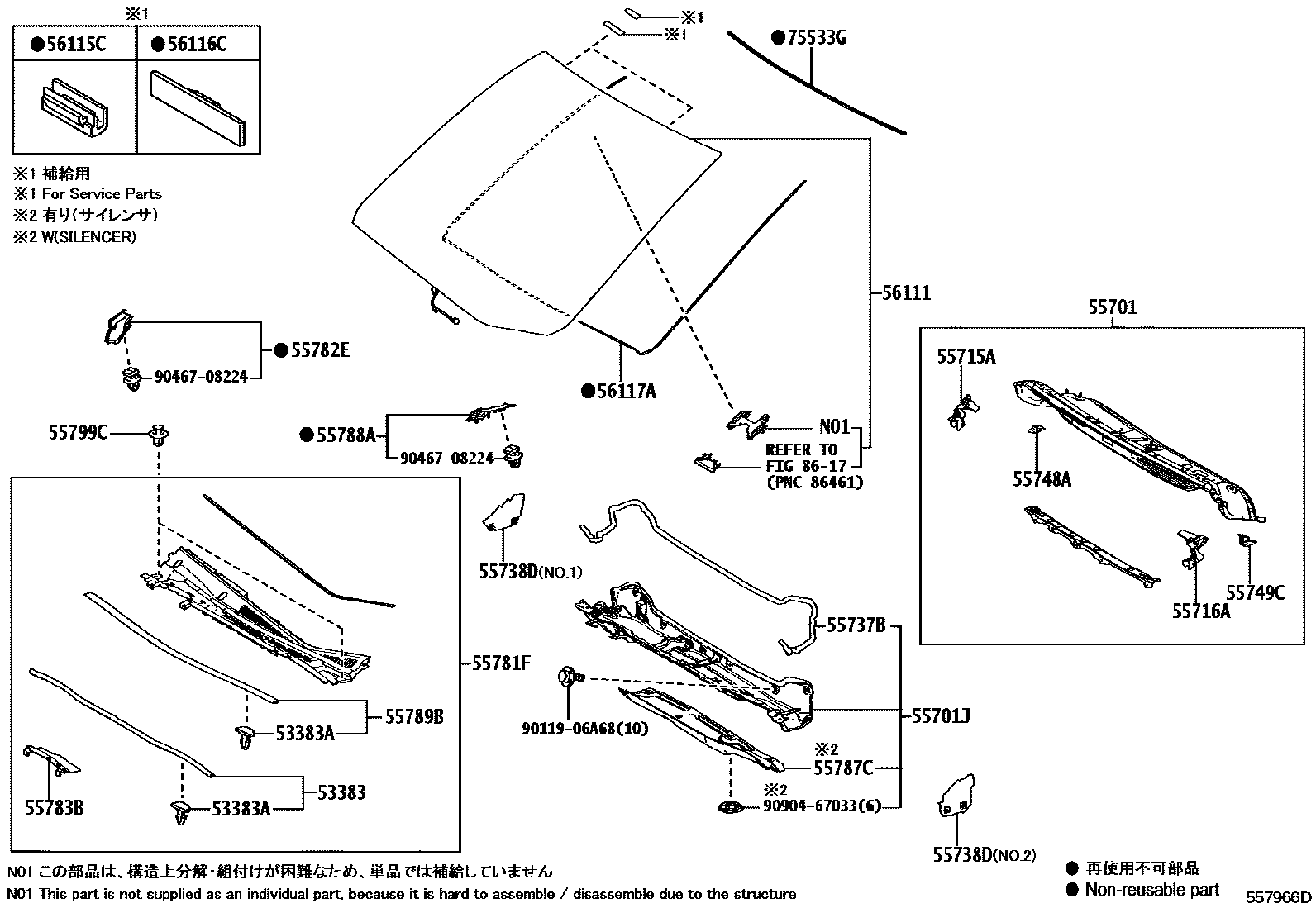

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53383ACLIP(FOR HOOD TO COWL TOP SEAL)
55701PANEL SUB-ASSY, COWL
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
NO.1
NO.2
55748ABRACE, COWL TOP INNER TO PILLAR
55749CBRACE, COWL TOP INNER TO PILLAR, LH
55781FLOUVER, COWL TOP VENTILATOR
55782EPROTECTOR, COWL TOP VENTILATOR LOUVER
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55787CINSULATOR, COWL TOP PANEL, NO.1
55788APROTECTOR, COWL TOP VENTILATOR LOUVER
55789BPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2
55799CCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
56115CSTOPPER, WINDSHIELD GLASS
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=1089
75533GMOULDING, WINDSHIELD, OUTSIDE
8617
9011906A68
9046708224
9090467033
26 parts on this diagram · 1 diagram in section
