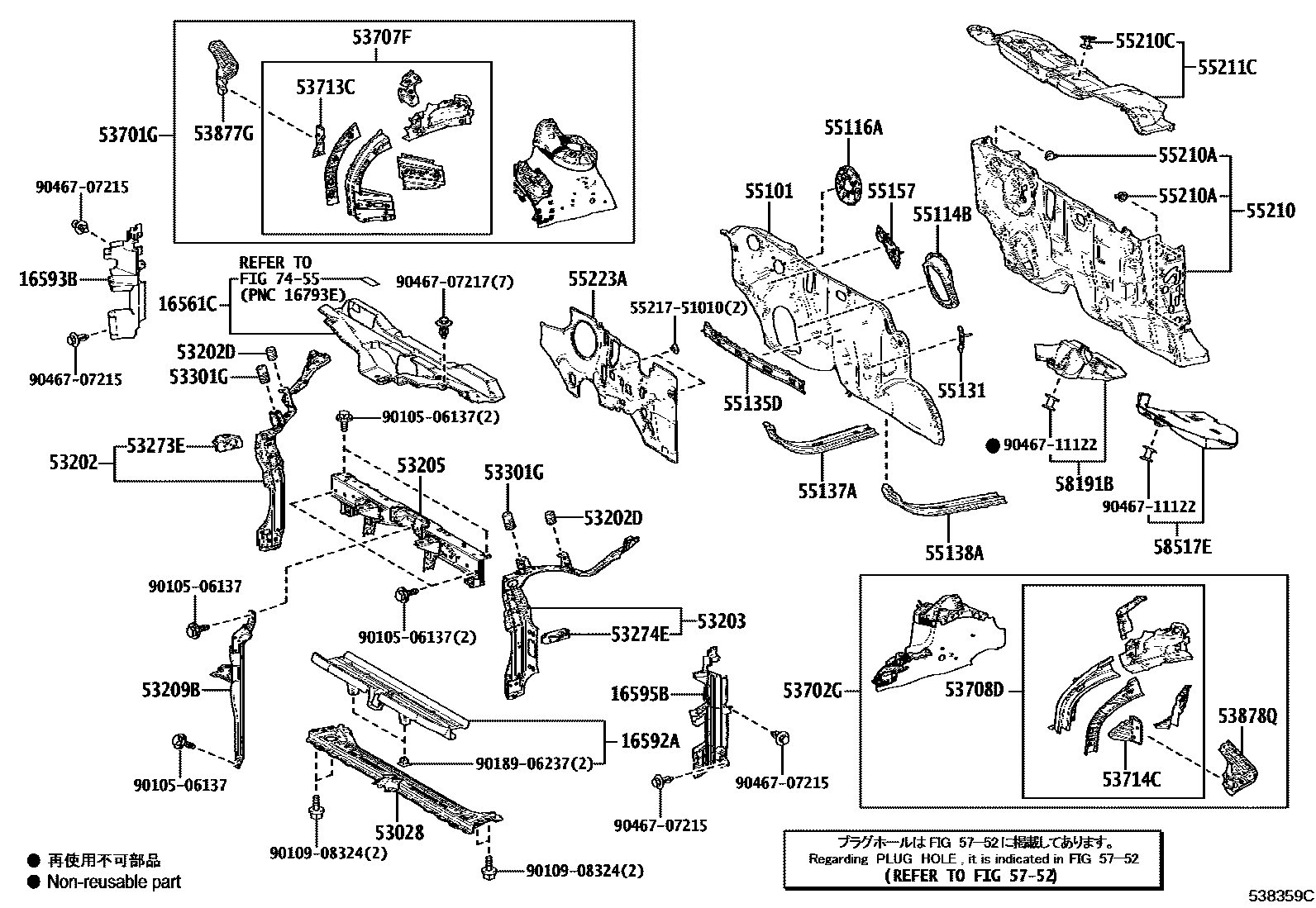

FRONT FENDER APRON & DASH PANEL
16561CSEAL, RADIATOR TO SUPPORT, NO.1
16592AGUIDE, RADIATOR AIR, NO.3
16593BGUIDE, RADIATOR AIR, NO.1 RH
16595BGUIDE, RADIATOR AIR, NO.1 LH
53028SUPPORT SUB-ASSY, RADIATOR, LOWER
53202SUPPORT SUB-ASSY, RADIATOR, RH
53202DCUSHION, RADIATOR SUPPORT
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT
53273EBRACKET, FRONT BUMPER ARM MOUNTING, RH
53274EBRACKET, FRONT BUMPER ARM MOUNTING, LH
53301GCUSHION, HOOD BUMPER
53701GAPRON SUB-ASSY, FRONT FENDER, RH
53702GAPRON SUB-ASSY, FRONT FENDER, LH
53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH
53708DAPRON SUB-ASSY, FENDER SIDE, LH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
53877GBRACKET, FRONT FENDER REAR SIDE PANEL, LOWER RH
53878QBRACKET, FRONT FENDER REAR SIDE PANEL, LOWER LH
55101PANEL SUB-ASSY, DASH
55114BPANEL, DASH, LOWER
55116APLATE, BRAKE PEDAL SUPPORT MOUNTING
55131REINFORCEMENT, DASH PANEL
55135DMEMBER, FRONT PANEL
55137ABRACE, DASH TO FRAME, RH
55138ABRACE, DASH TO FRAME, LH
55157BRACKET, PEDAL, RH
55210INSULATOR ASSY, DASH PANEL
55210ACLIP
55210CCLIP
55211CCOVER, DASH PANEL INSULATOR
55223AINSULATOR, DASH PANEL, OUTER
5752
58191BFOOTREST, FRONT FLOOR
58517EPAD, HEEL
7455
5521751010STRIP, DASH PANEL SILENCER FINISH
main55217-51010
9010506137
main90105-06137
9010908324
main90109-08324
9018906237
main90189-06237
9046707215
main90467-07215
9046707217
main90467-07217
9046711122
main90467-11122
45 parts on this diagram · 2 diagrams in section
