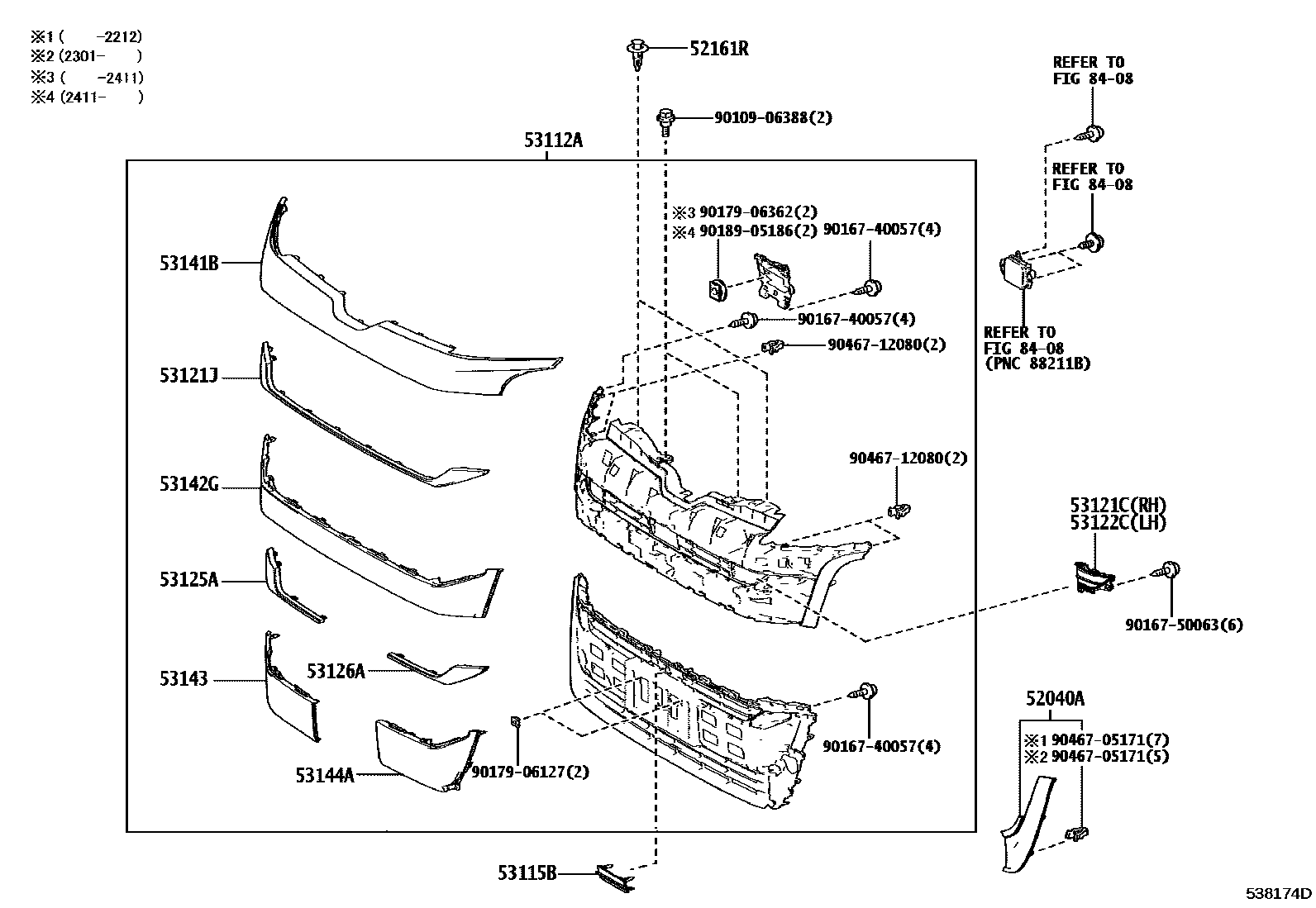

RADIATOR GRILLE
52040ACOVER ASSY, FRONT BUMPER HOLE, LH
WHITE PEARL CS.,070
METAL STREAM ME,1K0
ATTITUDE BLACK MC.,218
SPARKLING BLACK PEARL CS.,220
STEEL BLONDE ME.,4X1
52161RPIECE, FRONT BUMPER
sub52161-0K040
53112AGRILLE, RADIATOR, LOWER
WHITE PEARL CS.,070
METAL STREAM ME,1K0
ATTITUDE BLACK MC.,218
SPARKLING BLACK PEARL CS.,220
STEEL BLONDE ME.,4X1
53115BBRACKET, RADIATOR GRILLE
53121CPLATE, RADIATOR GRILLE FINISH, RH
53121JMOULDING, RADIATOR GRILLE, NO.1
53122CPLATE, RADIATOR GRILLE FINISH, LH
53125AMOULDING, RADIATOR GRILLE, CENTER RH
53126AMOULDING, RADIATOR GRILLE, CENTER LH
53141BGARNISH, RADIATOR GRILLE, NO.1
WHITE PEARL CS.,070
METAL STREAM ME,1K0
ATTITUDE BLACK MC.,218
SPARKLING BLACK PEARL CS.,220
STEEL BLONDE ME.,4X1
53142GGARNISH, RADIATOR GRILLE, NO.2
WHITE PEARL CS.,070
METAL STREAM ME,1K0
ATTITUDE BLACK MC.,218
SPARKLING BLACK PEARL CS.,220
STEEL BLONDE ME.,4X1
53143GARNISH, RADIATOR GRILLE, NO.3
WHITE PEARL CS.,070
METAL STREAM ME,1K0
ATTITUDE BLACK MC.,218
SPARKLING BLACK PEARL CS.,220
STEEL BLONDE ME.,4X1
53144AGARNISH, RADIATOR GRILLE, NO.4
WHITE PEARL CS.,070
METAL STREAM ME,1K0
ATTITUDE BLACK MC.,218
SPARKLING BLACK PEARL CS.,220
STEEL BLONDE ME.,4X1
8408
9010906388
main90109-06388
9016740057
main90167-40057
9016750063
main90167-50063
9017906127
main90179-06127
9017906362
main90179-06362
9018905186
main90189-05186
9046705171
main90467-05171
9046712080
main90467-12080
22 parts on this diagram · 3 diagrams in section
