FRONT AXLE HUB

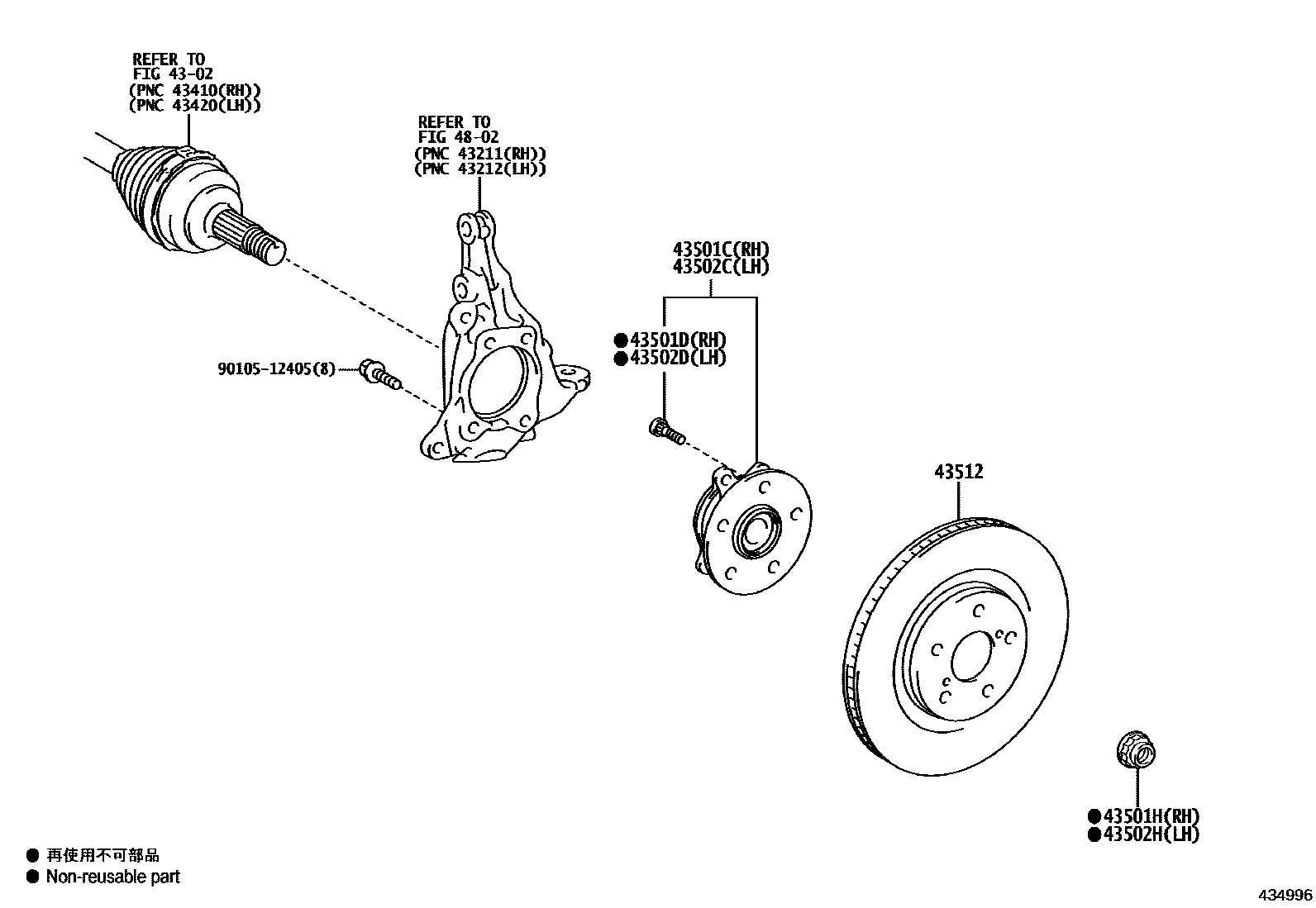

Parts diagram

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-33020i202201-202501

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049i202201-202501

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i202201-202501

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-33020i202201-202501

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049i202201-202501

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i202201-202501

43512DISC, FRONT

main43512-33150i202201-202501

4802

9010512405

main90105-12405

10 parts on this diagram · 1 diagram in section
