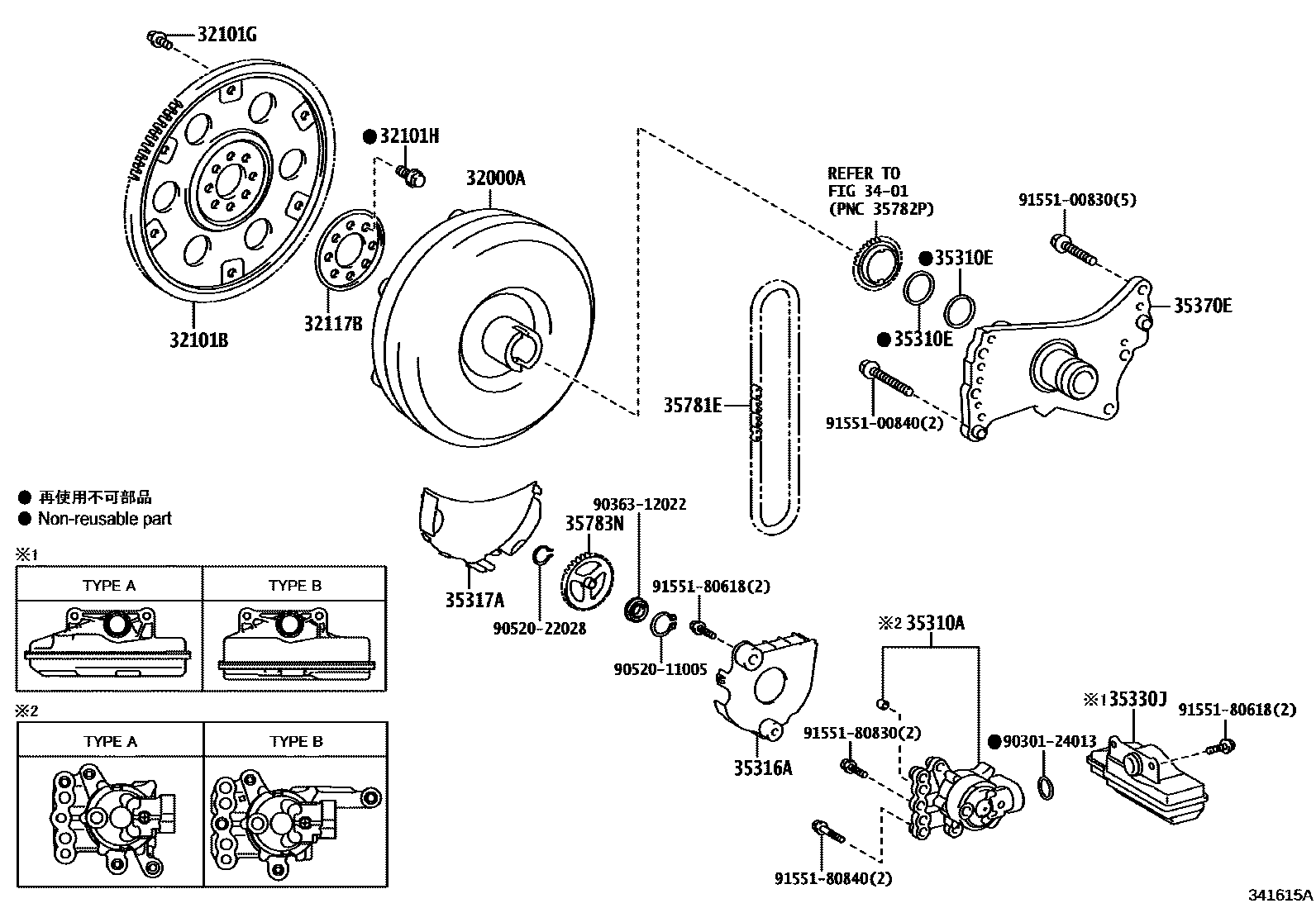

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-12520iMZRA90..S¥74,000202201-202501

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12120iMZRA90..S¥13,400202201-202501

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iMZRA90..S¥80202201-202501

*9-1.25PX12.4-7.3,BLACK

main90119-09025iMZRA90..G,R¥80202201-202501

*9-1.25PX12.4-8.4,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12404iMZRA90..S¥100202201-202501

32117BSPACER, DRIVE PLATE, REAR

main32117-33010iMZRA90..S¥920202201-202501

3401

35310APUMP ASSY, FRONT OIL

main35310-12200iMZRA90¥16,000202201-202203

TYPE A:REFER ILLUST.

main35310-28050iMZRA90¥14,500202201-202203

TYPE B:REFER ILLUST.

main35310-28050iMZRA90..S¥14,500202203-202501

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12060iMZRA90..S¥160202201-202501

35316APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1

main35316-12010iMZRA90..S¥980202201-202501

35317APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2

main35317-12010iMZRA90..S¥590202201-202501

35330JSTRAINER ASSY, OIL

main35330-12080iMZRA90¥3,950202201-202203

TYPE A:REFER ILLUST.

main35330-28040iMZRA90¥3,580202201-202203

TYPE B:REFER ILLUST.

main35330-28040iMZRA90..S¥3,580202203-202501

35370ESHAFT ASSY, STATOR (CVT)

main35370-12120iMZRA90..S¥14,900202201-202501

35781ECHAIN, TRANSMISSION DRIVE

main35781-12010iMZRA90¥5,100202201-202205

main35781-42010iMZRA90..S¥1,420202206-202501

35783NSPROCKET, DRIVEN

main35783-12060iMZRA90..S¥1,310202201-202501

9030124013

main90301-24013¥140

9036312022

main90363-12022¥640

9052011005

main90520-11005¥70

9052022028

main90520-22028¥90

9155100830

main91551-00830¥80

9155100840

main91551-00840¥80

9155180618

main91551-80618¥60

9155180830

main91551-80830¥80

9155180840

main91551-80840¥120

23 parts on this diagram · 1 diagram in section
