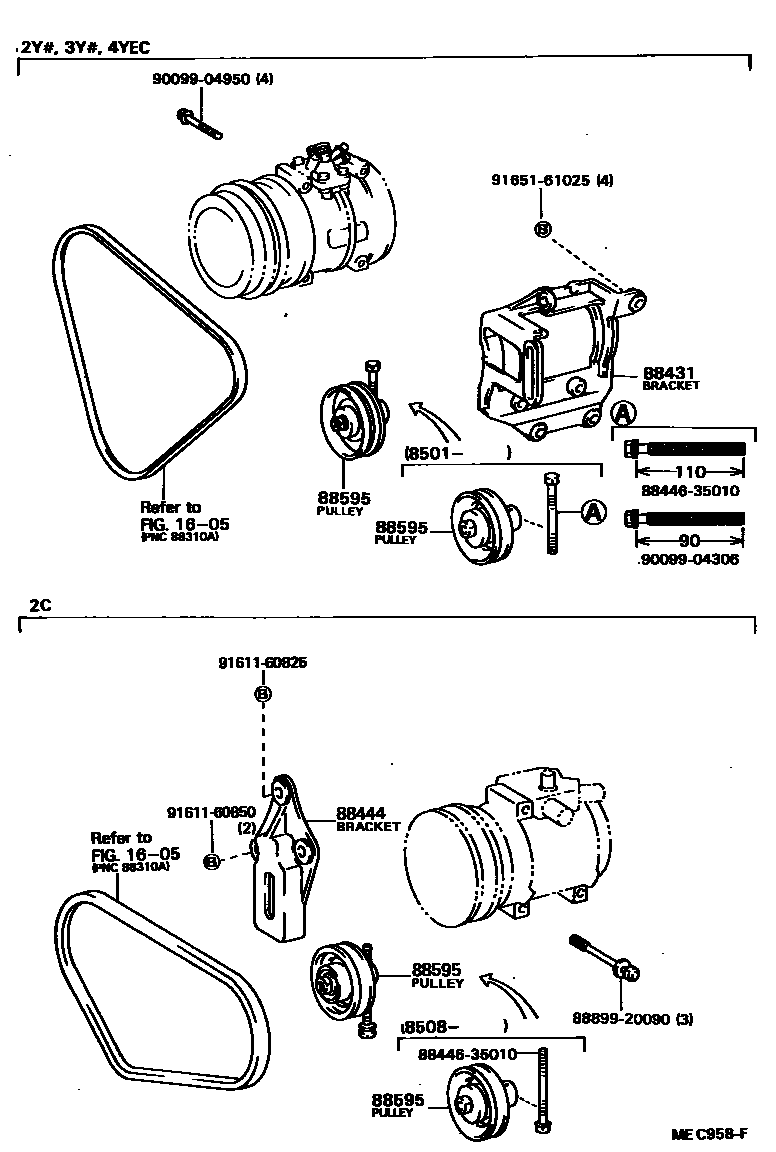

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

1605

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-28050iYR2#..ARL,GEN198211-198508

sub88431-22200

main88431-28070iYR2#,31..ARL,GEN198508-198808

88444BRACKET, IDLE PULLEY

main88444-20200iCR21..ARL,GEN198305-198808

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-28030iCR21..ARL,GEN198305-198508

main88440-28050iYR2#..ARL,GEN198211-198501

main88440-35020iYR21..ARL,GEN198501-198808

8844635010BOLT, IDLE PULLEY

main88446-35010

8889920090COVER, EVAPORATOR

main88899-20090

9009904306

main90099-04306

9009904950

main90099-04950

9161160825

main91611-60825

9161160850

main91611-60850

9165161025

main91651-61025

11 parts on this diagram · 4 diagrams in section
