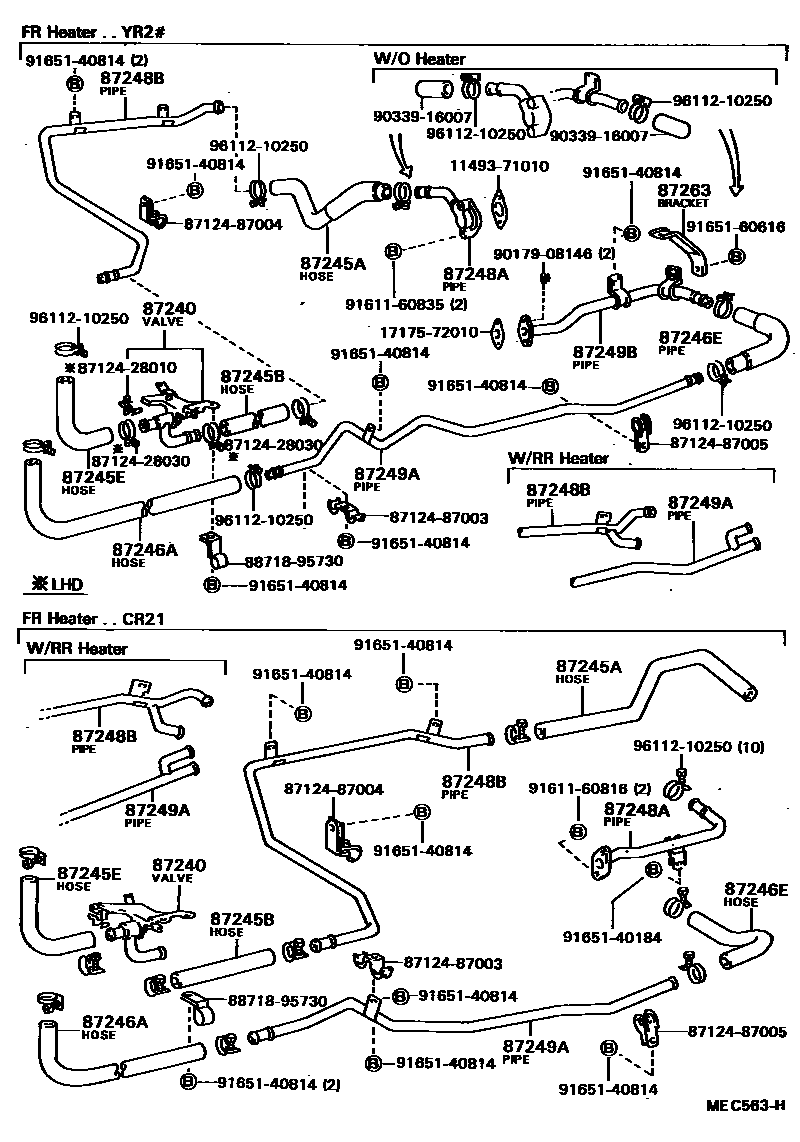

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87240VALVE ASSY, HEATER WATER

main87240-28010iCR21,YR20..LHD198211-198308

sub87240-28011

main87240-28011iCR21,YR2#..LHD198308-198508

main87240-28020iYR2#,31..LHD198508-198708

main87240-28030iYR2#,31..LHD198708-198808

main87240-87008iCR21,YR2#..RHD198211-198508

main87240-87009iCR21,YR2#..RHD198508-198708

sub87240-87010

main87240-87010iCR21,YR2#,31..RHD198708-198808

main87240-95D00iYR31..ARL198601-198708

sub87240-87010

sub99556-30500

87245AHOSE, HEATER WATER, INLET A

main87245-87014iYR2#198211-198808

main87245-87015iCR21198305-198508

main87245-87030iCR21198508-198610

main87245-95D09iYR31198601-198808

87245BHOSE, HEATER WATER, INLET B

main87245-28021iYR2#,31..LHD198508-198708

main87245-28050iYR2#,31..LHD198708-198808

main99552-30500iCR21,YR20198211-198308

*H,L=400

sub99556-30500

main99556-30500iCR21,YR2#..RHD198308-198808

*H,L=400

main99556-30500iYR31..ARL198601-198708

*H,L=350

87245EHOSE, HEATER WATER, INLET E

main87245-28010iCR21,YR2#..LHD198211-198508

sub87245-2B020

main87245-28030iYR2#,31..LHD198508-198708

main99552-30200iCR21,YR2#..RHD198211-198408

*H,L=180

sub99556-30200

main99556-30165iCR21,YR21,31..RHD198607-198808

*H,L=165

sub99556-30200

main99556-30180iCR21,YR21,31..RHD198408-198607

sub99556-30200

main99556-30500iYR2#,31..LHD198708-198808

*H,L=390

87246AHOSE, HEATER WATER, OUTLET A

main87245-87024iCR21,YR2#..RHD198211-198508

sub99552-31000

main87245-87031iCR21,YR2#..RHD198508-198808

main99552-31000iCR21,YR20..LHD198211-198308

*H,L=820

sub99556-31000

main99556-30980iYR31..ARL198602-198808

*H,L=560

sub99556-31000

main99556-30980iCR21,YR2#..LHD198308-198808

*H,L=820

sub99556-31000

main99556-30980iYR2#..LHD198508-198808

*H,L=840

sub99556-31000

87246EHOSE, HEATER WATER, OUTLET E

main87245-87016iYR2#198211-198808

main87245-87017iCR21198305-198808

main87245-95D08iYR31198601-198808

87248APIPE, HEATER WATER INLET, A

main87208-28010iYR2#,31198211-198808

main87208-28030iCR21198305-198307

main87208-28031iCR21198307-198508

87248BPIPE, HEATER WATER INLET, B

main87208-28070iYR2#198308-198501

W/RR HEATER

main87208-28071iYR2#..LHD198410-198708

W/RR HEATER

sub87208-28140

main87208-28080iYR21;YR20..5F;YR20..LHD..4FC;YR20..4FC..ARL198308-198501

main87208-28081iYR2#..LHD198410-198708

sub87208-28160

main87208-28090iCR21198308-198501

W/RR HEATER

main87208-28100iCR21198308-198501

main87208-28140iYR2#..LHD198708-198808

W/RR HEATER

main87208-28160iYR2#..LHD198708-198808

main87208-87002iYR21..RHD198211-198508

W/RR HEATER

sub87208-28070

main87208-87003iCR21198305-198508

W/RR HEATER

main87208-87004iCR21..RHD198211-198508

main87208-87009iCR21..LHD198305-198508

main87208-87018iCR21198508-198610

main87208-87019iYR2#..RHD198508-198610

W/RR HEATER

main87208-87020iYR21..RHD198508-198610

main87208-87022iYR2#..RHD198708-198808

W/RR HEATER

main87208-87023iCR21198508-198610

W/RR HEATER

main87208-87026iYR2#..RHD198610-198708

W/RR HEATER

sub87208-87022

main87208-87028iYR21..RHD198610-198708

sub87208-87034

main87208-87031iCR21198610-198708

W/RR HEATER

sub87208-87036

main87208-87032iCR21198610-198708

sub87208-87038

main87208-87034iYR21..RHD198708-198808

main87208-87036iCR21198708-198808

W/RR HEATER

main87208-87038iCR21198708-198808

main87208-95D04iYR31198601-198611

main87208-95D05iYR31198601-198611

W/RR HEATER

main87208-95D08iYR31..EUR198608-198708

sub87208-95D18

main87208-95D09iYR31..EUR198608-198708

W/RR HEATER

sub87208-95D20

main87208-95D18iYR31198708-198808

main87208-95D20iYR31198708-198808

W/RR HEATER

87249APIPE, HEATER WATER OUTLET, A

main87208-28050iYR21198308-198708

W/RR HEATER

sub87208-28150

main87208-28060iCR21,YR21..RHD198308-198708

sub87208-28170

main87208-28150iCR21,YR2#..RHD198708-198808

W/RR HEATER

main87208-28170iYR2#..LHD198708-198808

main87208-87005iCR21,YR2#..RHD198211-198610

W/RR HEATER

main87208-87007iCR21,YR21..RHD198211-198610

main87208-95D01iYR31198601-198611

W/RR HEATER

main87208-95D11iYR31..ARL198601-198611

main87208-95D12iYR31..ARL198608-198708

sub87208-95D19

main87208-95D13iYR31..ARL198608-198708

W/RR HEATER

sub87208-95D21

main87208-95D19iYR31198708-198808

sub87208-95D25

main87208-95D21iYR31198708-198808

W/RR HEATER

sub87208-95D26

87249BPIPE, HEATER WATER OUTLET, B

main87208-28020iYR2#198211-198502

main87208-28021iYR2#198502-198808

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-28010iYR2#198211-198409

sub87263-28011

sub91651-40616

main87263-28011iYR21198409-198808

1149371010GASKET, WATER SEAL PLATE

main11493-71010

1717572010GASKET, INTAKE MANIFOLD INLET

main17175-72010

8712428010CLAMP, HEATER

main87124-28010

8712428030CLAMP, HEATER

main87124-28030

8712487003CLAMP, HEATER

main87124-87003

8712487004CLAMP, HEATER

main87124-87004

8712487005CLAMP, HEATER

main87124-87005

8871895730PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95730

9017908146

main90179-08146

9033916007

main90339-16007

9161160816

main91611-60816

9161160835

main91611-60835

9165140184

main91651-40184

9165140814

main91651-40814

9165160616

main91651-60616

9611210250

main96112-10250

27 parts on this diagram · 2 diagrams in section
