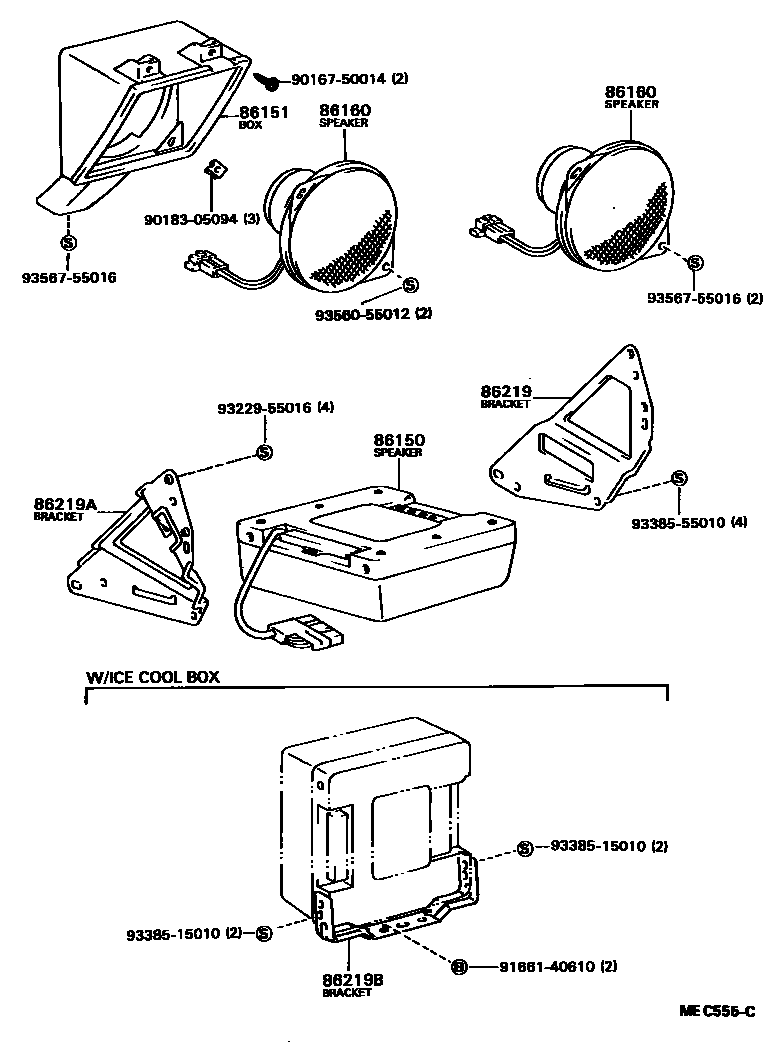

SPEAKER

0001 1 0002 1

86150SPEAKER ASSY, W/BOX, NO.1

main86150-87003iYR2#..ARL,GEN198211-198408

WOOFER

main86150-87011iCR21,YR2#,31..ARL,GEN198408-198808

WOOFER

86151BOX, SPEAKER

main86151-87001iCR21,YR2#,31..RHD198211-198808

86160SPEAKER ASSY, FRONT NO.1

main86160-10140iCR21,YR2#,31198211-198808

W/SPEAKER BOX

main86160-87011iCR21,YR2#,31198311-198808

W/SPEAKER BOX

86219BRACKET, STEREO COMPONENT SPEAKER, NO.1

main86211-87004iYR21..RHD..EUR198211-198808

main86219-28010iYR2#,31..LHD..EUR198211-198808

main86219-87014iYR2#,31..RHD..GL198508-198808

RR SPEAKER

86219ABRACKET, STEREO COMPONENT SPEAKER, NO.2

main86212-87003iCR21,YR2#,31..RHD..(ARL,GEN)198211-198808

main86219-28020iYR2#,31..LHD..EUR198211-198808

86219BBRACKET, STEREO COMPONENT SPEAKER, NO.3

main86219-87001iCR21,YR2#..ARL,GEN198211-198808

9016750014

main90167-50014

9018305094

main90183-05094

9166140610

main91661-40610

9322955016

main93229-55016

9338515010

main93385-15010

9338555010

main93385-55010

9356055012

main93560-55012

9356755016

main93567-55016

14 parts on this diagram · 2 diagrams in section
