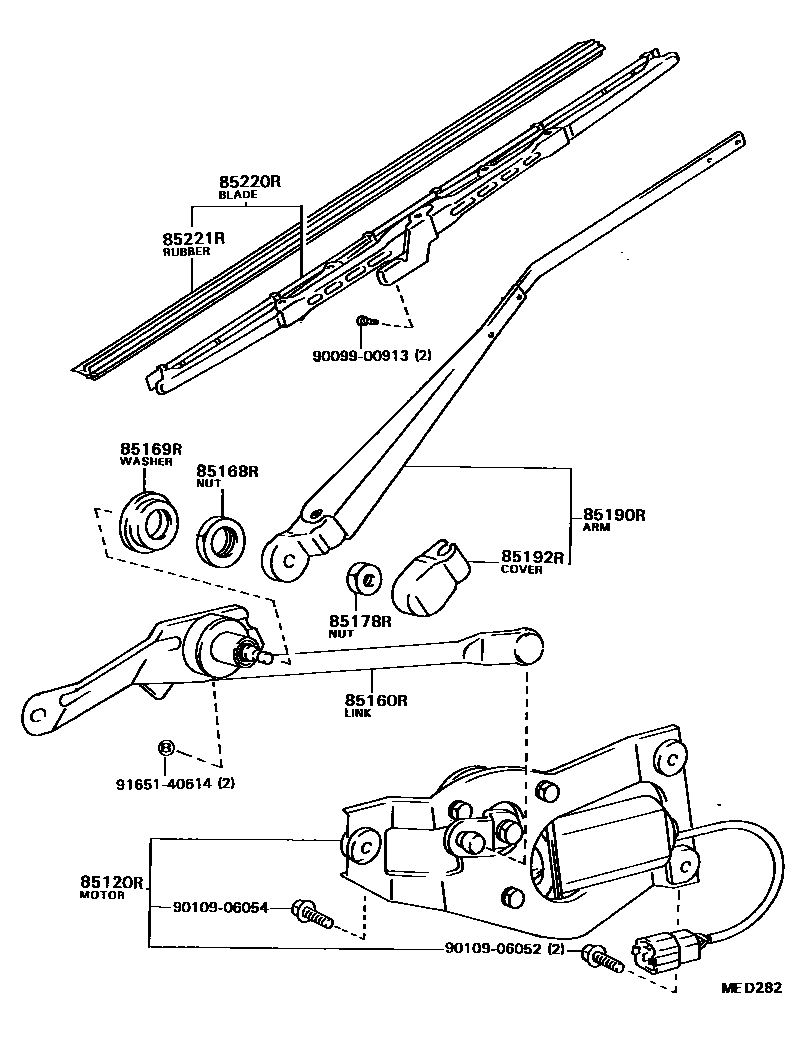

REAR WIPER

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85120-87002iCR21,YR2#,31198211-198808

85160RLINK ASSY, REAR WIPER

main85160-87004iCR21,YR2#,31198211-198808

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iCR21,YR2#,31198211-198808

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-87004iCR21,YR2#,31198211-198808

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06115iCR21,YR2#,31198211-198808

85190RARM ASSY, REAR WIPER

main85190-87004iCR21,YR2#198211-198408

main85190-87014iCR21,YR2#,31198408-198808

85192RCOVER, REAR WIPER ARM

main85192-14020iCR21,YR2#,31198211-198808

sub85192-13060

85220RBLADE ASSY, REAR WIPER

main85220-22370iCR21,YR2#,31198211-198703

sub85220-22600

main85220-22600iCR21,YR2#,31198703-198808

85221RBLADE, REAR WIPER

main85221-87002iCR21,YR2#,31198211-198708

sub85214-12H90

main85221-87003iCR21,YR2#,31198708-198808

sub85221-87002

9009900913

main90099-00913

9010906052

main90109-06052

9010906054

main90109-06054

9165140614

main91651-40614

13 parts on this diagram · 1 diagram in section
