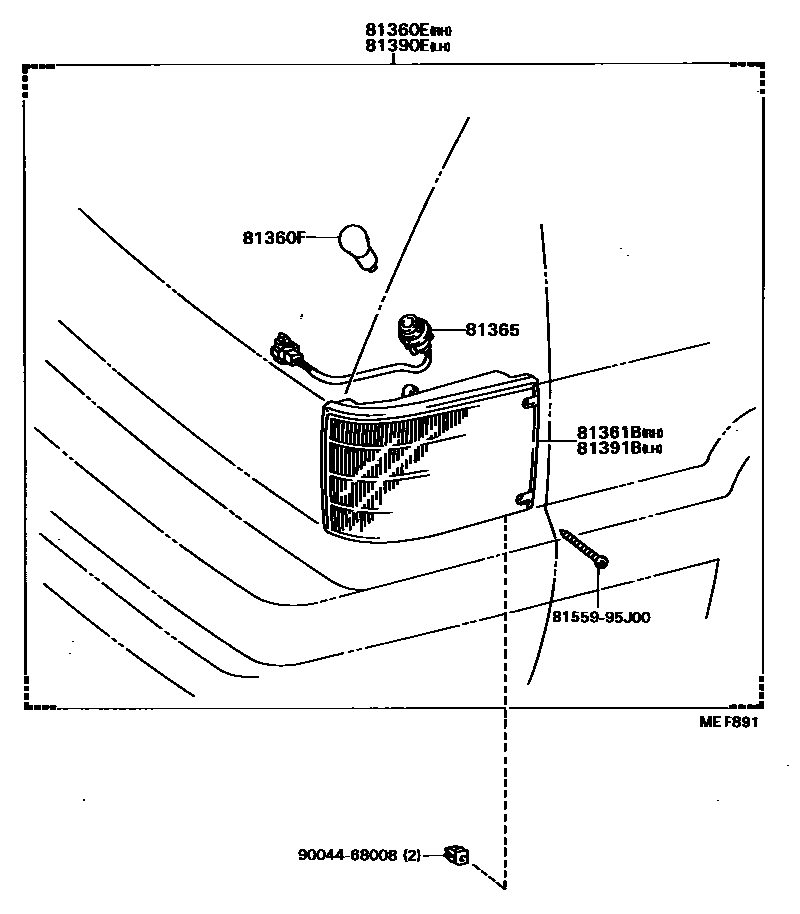

CORNERING LAMP

81360ELAMP ASSY, CORNERING, RH

main81360-87006iCR21,YR2#,31..ARL198508-198808

81360FBULB, CORNERING LAMP

main99132-11050iCR21,YR2#,31..ARL198508-198808

12V 5W,12V 5W

81361BLENS & BODY, CORNERING LAMP, RH

main81361-87004iCR21,YR2#,31..ARL198508-198808

81365SOCKET & WIRE, CORNERING LAMP

main81365-87006iCR21,YR2#,31..ARL198508-198808

81390ELAMP ASSY, CORNERING, LH

main81390-87004iCR21,YR2#,31..ARL198508-198808

81391BLENS & BODY, CORNERING LAMP, LH

main81391-87002iCR21,YR2#,31..ARL198508-198808

8155995J00MOULDING, REAR COMBINATION LAMP, RH

main81559-95J00

9004468008

main90044-68008

8 parts on this diagram · 1 diagram in section
