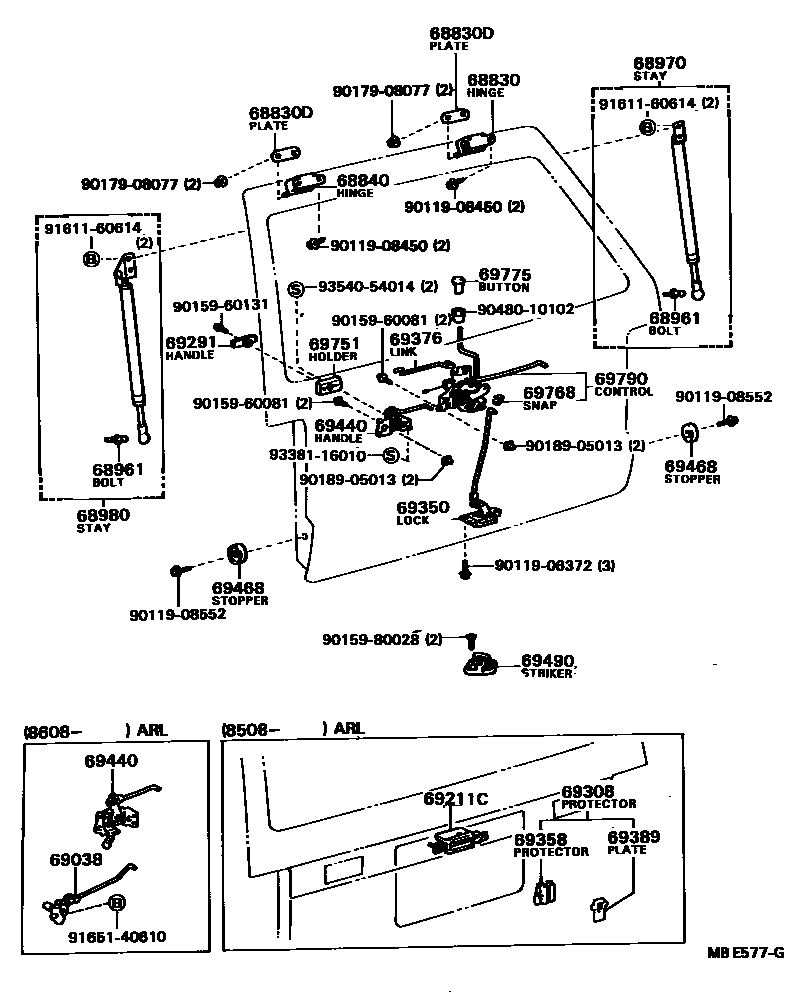

BACK DOOR LOCK & HINGE

68830HINGE ASSY, BACK DOOR, RH

main68801-87001iCR21,YR2#..DLX;YR20,21..GL..GEN198211-198808

sub68801-87005

main68801-87002iCR21,YR2#,31198211-198808

W/*RW

sub68801-87006

68830DPLATE, BACK DOOR HINGE

main68715-87001iCR21,YR20,21,31198211-198808

68840HINGE ASSY, BACK DOOR, LH

main68801-87001iCR21,YR2#,31198211-198808

sub68801-87005

68961BOLT, BACK DOOR STAY

main68459-87501iCR21,YR2#198211-198407

main68961-28010iCR21,YR2#,31198507-198808

main68961-87002iCR21,YR2#198407-198507

sub68961-28010

68970STAY ASSY, BACK DOOR, RH

main68950-29125iYR20..DLX;YR20..GL..GEN198211-198304

main68950-29135iYR20..EUR198211-198304

W/*RW & COLD SPEC

main68950-29135iYR20..EUR198211-198304

W/*RW OR COLD SPEC

main68950-29195iYR2#..GL..GEN;CR21,YR2#..DLX198304-198408

main68950-29205iCR21,YR20..EUR198304-198408

W/*RW OR COLD SPEC

main68950-29205iCR21,YR20..EUR198304-198408

W/*RW & COLD SPEC

main68950-29285iYR21..GL..GEN;CR21,YR21..DLX198408-198508

main68950-29295iYR21..EUR198408-198508

W/*RW OR COLD SPEC

main68950-29295iYR21198408-198508

W/*RW & COLD SPEC

main68950-29365iYR22..HRF198508-198808

main68950-29535iYR21..GEN;CR21,YR2#,31..DLX..(ARL,EUR)198508-198808

main68950-29545iYR2#,31..EUR198508-198808

W/*RW OR COLD SPEC

main68950-29545iYR2#,31..EUR198508-198808

W/*RW & COLD SPEC

68980STAY ASSY, BACK DOOR

main68960-29085iYR20198211-198304

main68960-29115iYR20..EUR198211-198304

W/*RW & COLD SPEC

main68960-29115iYR20198302-198304

W/*RW

main68960-29125iYR2#..GL..GEN;CR21,YR2#..DLX198304-198408

main68960-29135iCR21,YR2#198304-198408

W/*RW & COLD SPEC

main68960-29135iCR21,YR2#198304-198408

W/*RW

main68960-29205iYR21..GL..GEN;CR21,YR2#,31..DLX198408-198808

main68960-29215iCR21,YR2#,31..MRF198408-198808

W/*RW

main68960-29215iCR21,YR2#,31..MRF198408-198808

W/*RW & COLD SPEC

main68960-29225iYR22..HRF198508-198808

69038PROTECTOR SUB-ASSY, BACK DOOR CHILD

main69038-28010iCR21,YR2#,31..ARL198608-198808

69211CHANDLE, BACK DOOR OUTSIDE

main69230-87005iCR21,YR2#,31..ARL198508-198808

sub69230-87008

69291HANDLE ASSY, BACK DOOR INSIDE

main69291-95J00-03iCR21,YR2#,31..GL198211-198808

GRAY,GRAY,TRIM1#,8#

sub69291-95J00

main69291-95J00-25iCR21,YR2#..GL198211-198408

BEIGE,BEIGE,TRIM4#

sub69291-95J00

main69291-95J00-35iYR21..GL198408-198508

BEIGE,BEIGE,TRIM4#

sub69291-95J00

main69291-95J00-36iYR2#,31..GL198508-198808

BROWN,BROWN,TRIM4#

sub69291-95J00

69308PROTECTOR SUB-ASSY, BACK DOOR LOCK

main69308-87001iCR21,YR2#,31..ARL198708-198808

69350LOCK ASSY, BACK DOOR

main69350-87003iCR21,YR2#198211-198408

main69350-87004iCR21,YR2#,31198408-198608

main69350-87005iCR21,YR2#,31198608-198702

main69350-87006iCR21,YR2#,31198702-198808

69358PROTECTOR, BACK DOOR LOCK

main69358-87001iCR21,YR2#,31..ARL198708-198808

69376LINK, BACK DOOR LOCK

main69764-87005iCR21,YR2#..GL198211-198408

main69764-87006iYR2#,31..GL198408-198808

69389PLATE, BACK DOOR LOCK

main69389-87001iCR21,YR2#,31..ARL198708-198808

69440HANDLE ASSY, BACK DOOR INSIDE

main69209-28010iCR21,YR2#,31..ARL198608-198808

main69209-87001iCR21,YR2#,31..GL198211-198808

69468STOPPER, BACK DOOR SIDE MALE

main69463-87002iCR21,YR2#,31198211-198808

69490STRIKER ASSY, BACK DOOR LOCK

main69430-28010iCR21,YR2#,31198703-198808

sub69430-95702

main69430-87002iCR21,YR2#,31198211-198703

sub69430-95702

69751HOLDER, DOOR LOCK CONTROL KNOB

main69783-95J00-03iCR21,YR2#,31..GL198211-198808

GRAY,GRAY,TRIM1#,8#

sub69783-95J00

main69783-95J00-15iCR21,YR2#..GL198211-198408

BEIGE,BEIGE,TRIM4#

sub69783-95J00

main69783-95J00-25iYR21..GL198408-198508

BEIGE,BEIGE,TRIM4#

sub69783-95J00

main69783-95J00-35iYR2#,31..GL198508-198808

BEIGE,BEIGE,TRIM4#

sub69783-95J00

69768SNAP, BACK DOOR LOCK CONTROL LINK

main69377-13020iCR21,YR2#,31198211-198808

69775BUTTON, DOOR LOCKING(FOR BACK DOOR)

main69747-87701iCR21,YR2#,31..GL198211-198808

sub69743-87001

69790CONTROL ASSY, BACK DOOR LOCK

main69790-87001iCR21,YR2#..DLX198211-198408

main69790-87002iCR21,YR20..GL198211-198308

main69790-87004iCR21,YR2#..GL198308-198408

main69790-87005iCR21,YR2#,31..DLX198408-198808

main69790-87008iYR2#,31..GL198408-198808

9011906372

main90119-06372

9011908450

main90119-08450

9011908552

main90119-08552

9015960081

main90159-60081

9015960131

main90159-60131

9015980028

main90159-80028

9017908077

main90179-08077

9018905013

main90189-05013

9048010102

main90480-10102

9161160614

main91611-60614

9165140610

main91651-40610

9338116010

main93381-16010

9354054014

main93540-54014

34 parts on this diagram · 1 diagram in section
