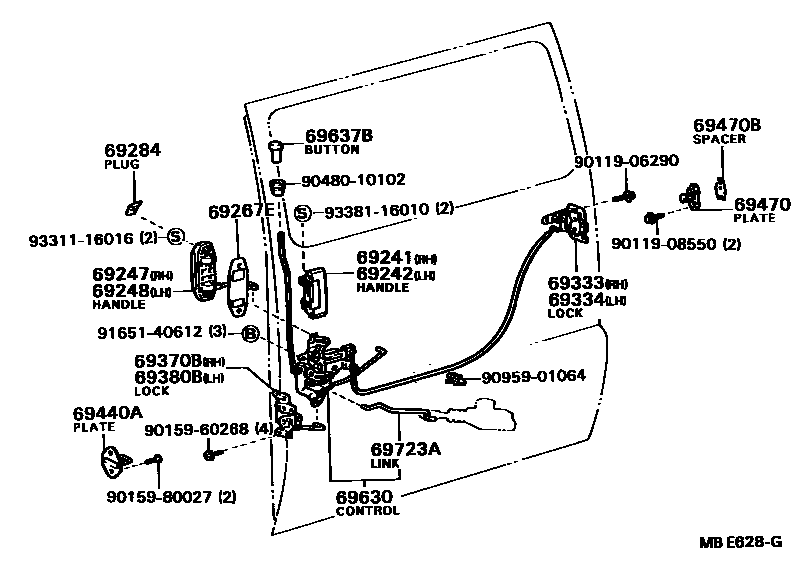

REAR DOOR LOCK & HANDLE

69241HANDLE ASSY, SLIDE DOOR OUTSIDE, RH

main69230-87001iYR20..LHD198211-198304

sub69230-87003

main69230-87003iCR21,YR2#,31..LHD198304-198808

69242HANDLE ASSY, SLIDE DOOR OUTSIDE, LH

main69240-87001iYR20..RHD198211-198304

sub69240-87002

main69240-87002iCR21,YR2#,31..RHD198304-198808

69247HANDLE, SLIDE DOOR INSIDE, RH

main69270-87001-03iCR21,YR2#,31..LHD..GL198211-198808

GRAY,GRAY,TRIM1#,8#

main69270-87001-05iCR21,YR2#..LHD198211-198408

BEIGE,BEIGE,TRIM4#

main69270-87001-15iYR21..LHD198408-198508

BEIGE,BEIGE,TRIM4#

main69270-87001-25iYR2#,31..LHD198508-198808

BEIGE,BEIGE,TRIM4#

69248HANDLE, SLIDE DOOR INSIDE, LH

main69280-87001-03iYR2#,31..RHD..GL198211-198808

GRAY,GRAY,TRIM1#,8#

main69280-87001-05iCR21,YR2#..RHD198211-198408

BEIGE,BEIGE,TRIM4#

main69280-87001-15iCR21,YR21..RHD198408-198508

BEIGE,BEIGE,TRIM4#

main69280-87001-25iCR21,YR2#,31..RHD198508-198808

BEIGE,BEIGE,TRIM4#

69267ESEAL, SLIDE DOOR INSIDE HANDLE, NO.1

main69267-87001iCR21,YR2#,31..RHD198801-198808

69284PLUG, SLIDE DOOR INSIDE HANDLE

main69284-87001-03iCR21,YR2#,31..GL198211-198808

GRAY,GRAY,TRIM1#,8#

main69284-87001-05iCR21,YR2#198211-198408

BEIGE,BEIGE,TRIM4#

main69284-87001-15iCR21,YR21198408-198508

BEIGE,BEIGE,TRIM4#

main69284-87001-25iCR21,YR2#,31198508-198808

BEIGE,BEIGE,TRIM4#

69333LOCK ASSY, SLIDE DOOR, RH

main69330-87001iCR21,YR2#,31..LHD198211-198808

69334LOCK ASSY, SLIDE DOOR, LH

main69340-87001iCR21,YR2#,31..RHD198211-198808

69370BLOCK ASSY, SLIDE DOOR, FRONT RH

main69370-28010iCR21,YR2#,31..LHD..EUR198211-198808

69380BLOCK ASSY, SLIDE DOOR, FRONT LH

main69380-28010iCR21,YR2#,31..RHD..(ARL,EUR)198211-198808

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-28010iCR21,YR2#,31..ARL,EUR198211-198808

sub69440-46010

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-87001iCR21,YR2#198311-198408

PLANT.K11

sub69470-95D00

main69470-87001iCR21,YR2#,31198408-198808

sub69470-95D00

main69470-95J00iCR21,YR2#198311-198408

PLANT.C21-C24

sub69470-87001

main69470-95J00iCR21,YR20198211-198311

sub69470-87001

69470BSPACER, SLIDE DOOR LOCK STRIKER

main69413-87002iCR21,YR2#,31198408-198808

sub69413-28020

main69413-87002iCR21,YR2#198311-198408

PLANT.K11

sub69413-28020

main69473-95700iCR21,YR20..LHD198211-198311

main69473-95700iCR21,YR2#..LHD198311-198408

PLANT.C21-C24

main69474-95700iCR21,YR2#..RHD198311-198408

PLANT.NO.C21-C24

main69474-95700iCR21,YR20..RHD198211-198311

69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE

main69630-87001iCR21,YR20..LHD..DLX198211-198408

RH

main69630-87002iCR21,YR2#..LHD..GL198211-198408

RH

main69630-87003iYR2#,31..LHD..DLX198408-198808

RH

main69630-87004iYR2#,31..LHD..GL198408-198808

RH

main69640-28010iCR21,YR2#..RHD..DLX..(ARL,EUR)198211-198408

LH

main69640-28011iCR21,YR21..RHD..DLX..(ARL,EUR)198408-198808

LH

main69640-28020iYR2#..RHD..GL198211-198408

LH

main69640-28021iYR2#,31..RHD..GL198408-198808

LH

main69640-87001iCR21,YR20..RHD..GEN198211-198408

LH

main69640-87003iCR21,YR21..RHD..GEN198408-198508

LH

69637BBUTTON, DOOR LOCKING(FOR SLIDE DOOR)

main69747-87701iCR21,YR2#,31198211-198808

sub69743-87001

69723ALINK, SLIDE DOOR LOCK ACTUATOR

main69723-87001iCR21,YR2#..LHD..GL198211-198808

RH

main69723-87002iYR21..LHD..GL198408-198411

RH

sub69723-87001

9011906290

main90119-06290

9011908550

main90119-08550

9015960268

main90159-60268

9015980027

main90159-80027

9048010102

main90480-10102

9095901064

main90959-01064

9165140612

main91651-40612

9331116016

main93311-16016

9338116010

main93381-16010

25 parts on this diagram · 1 diagram in section
