REAR DOOR PANEL & GLASS

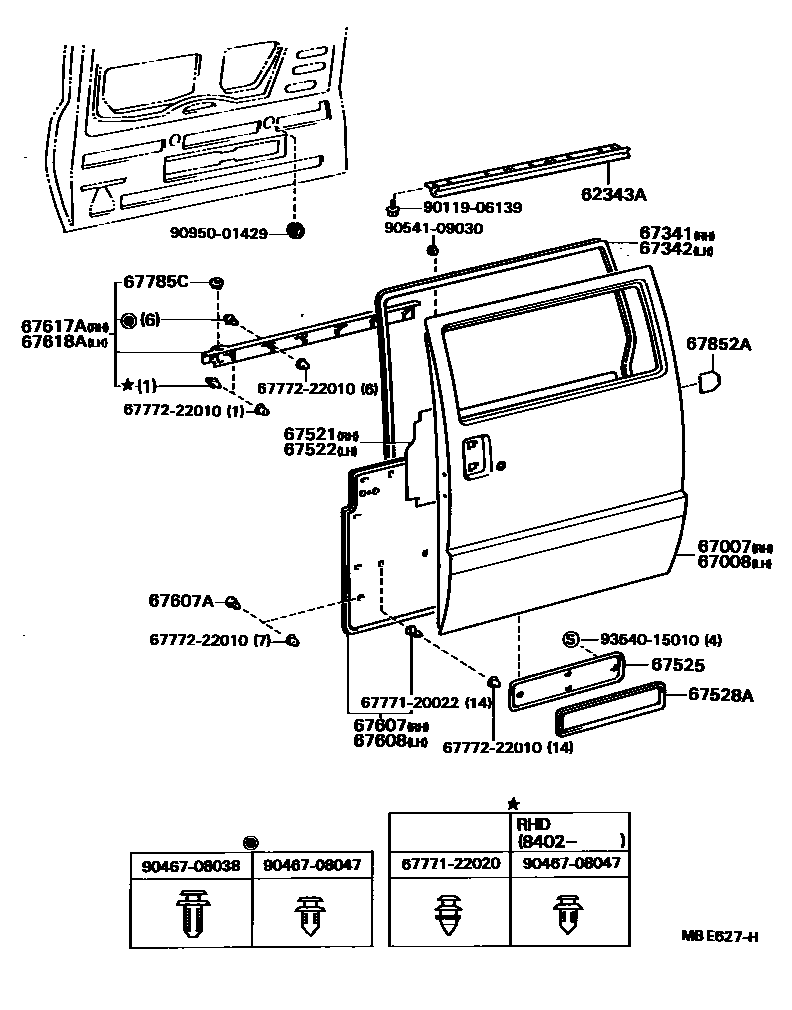

Parts diagram
62343AWEATHERSTRIP, SLIDE DOOR, NO.2
main62343-87001i198211-198808
sub67887-28010
67007PANEL SUB-ASSY, SLIDE DOOR, RH
main67003-28010i198211-198406
sub67003-28080
sub90333-25001
sub90950-01429
main67003-28020i198211-198406
sub67003-28090
sub90333-25001
sub90950-01429
main67003-28030i198211-198406
sub67003-28100
sub90333-25001
sub90950-01429
main67003-28040i198211-198406
sub67003-28120
sub90333-25001
sub90950-01429
main67003-28080i198406-198808
main67003-28090i198406-198808
main67003-28100i198406-198808
main67003-28120i198406-198808
67008PANEL SUB-ASSY, SLIDE DOOR, LH
main67004-87006i198211-198508
main67004-87008i198211-198508
sub67004-87013
main67004-87009i198211-198312
main67004-87013i198312-198508
main67004-87016i198508-198808
W/LARGE SIDE MOULDING
sub67004-95D00
main67004-87018i198508-198808
sub67004-87019
main67004-87019i198508-198808
67341WEATHERSTRIP, SLIDE DOOR, RH
main67871-87001i198211-198808
67342WEATHERSTRIP, SLIDE DOOR, LH
main67872-87001i198211-198808
67521COVER SUB-ASSY, SLIDE DOOR PANEL, RH
main67851-87002i198211-198808
67522COVER SUB-ASSY, SLIDE DOOR PANEL, LH
main67851-87002i198211-198808
67525COVER, SLIDE DOOR PANEL, LOWER
main67525-28010i198308-198808
main67525-87001i198211-198308
67528APACKING, SLIDE DOOR LOWER COVER
main67528-87001i198211-198808
67607BOARD SUB-ASSY, SLIDE DOOR TRIM, RH
main67630-28010i198211-198308
BEIGE
main67630-28011i198308-198406
BEIGE
main67630-28012-05i198406-198408
BEIGE,BEIGE,TRIM4#
sub67630-28012
main67630-28013-05i198408-198508
BEIGE,BEIGE,TRIM4#
sub67630-28013
main67630-28014-05i198508-198808
BEIGE,BEIGE,TRIM4#
main67630-28020-03i198211-198308
GRAY,GRAY,TRIM1#
main67630-28020-05i198211-198308
BEIGE,BEIGE,TRIM4#
main67630-28030-03i198308-198406
GRAY,GRAY,TRIM1#
sub67630-28030
main67630-28030-05i198308-198406
BEIGE,BEIGE,TRIM4#
sub67630-28030
main67630-28031-03i198406-198408
GRAY,GRAY,TRIM1#
sub67630-28031
main67630-28031-05i198406-198408
BEIGE,BEIGE,TRIM4#
sub67630-28031
main67630-28032-03i198408-198508
GRAY,GRAY,TRIM1#
sub67630-28032
main67630-28032-05i198408-198508
BEIGE,BEIGE,TRIM4#
sub67630-28032
main67630-28033-03i198508-198608
GRAY,GRAY,TRIM8#
main67630-28033-05i198508-198808
BEIGE,BEIGE,TRIM4#
main67630-28033-13i198608-198808
GRAY,GRAY,TRIM1#
67607ACLIP(FOR SLIDE DOOR TRIM BOARD)
main90467-09033-03i198211-198212
GRAY,GRAY,TRIM1#
main90467-09033-05i198211-198212
BEIGE,BEIGE,TRIM4#
main90467-12078-03i198212-198408
GRAY,GRAY,TRIM1#
sub90467-12078
main90467-12078-05i198212-198408
BEIGE,BEIGE,TRIM4#
sub90467-12078
main90467-12078-13i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub90467-12078
main90467-12078-22i198408-198508
WINE,WINE,TRIM4#
sub90467-12078
main90467-12078-24i198408-198508
BLUE,BLUE,TRIM1#
sub90467-12078
main90467-12078-34i198508-198808
BLUE,BLUE,TRIM8#
sub90467-12078
main90467-12078-46i198508-198808
BROWN,BROWN,TRIM4#
sub90467-12078
67608BOARD SUB-ASSY, SLIDE DOOR TRIM, LH
main67640-87006i198211-198312
BEIGE
main67640-87009-03i198211-198308
GRAY,GRAY,TRIM1#
main67640-87009-05i198211-198308
BEIGE,BEIGE,TRIM4#
main67640-87010-03i198308-198312
GRAY,GRAY,TRIM1#
sub67640-87010
main67640-87010-05i198308-198312
BEIGE,BEIGE,TRIM4#
sub67640-87010
main67640-87012i198312-198408
BEIGE
main67640-87015-03i198312-198408
GRAY,GRAY,TRIM1#
sub67640-87015
main67640-87015-05i198312-198408
BEIGE,BEIGE,TRIM4#
sub67640-87015
main67640-87017-05i198408-198508
BEIGE,BEIGE,TRIM4#
sub67640-87028
main67640-87017-15i198508-198602
BEIGE,BEIGE,TRIM4#
sub67640-87028
main67640-87018-03i198408-198508
GRAY,GRAY,TRIM1#
main67640-87018-05i198408-198508
BEIGE,BEIGE,TRIM4#
main67640-87024-03i198508-198602
GRAY,GRAY,TRIM8#
sub67640-87026
main67640-87024-05i198508-198602
BEIGE,BEIGE,TRIM4#
sub67640-87026
main67640-87026-03i198602-198808
GRAY,GRAY,TRIM8#
sub67640-87029
main67640-87026-05i198602-198808
BEIGE,BEIGE,TRIM4#
sub67640-87029
main67640-87028-05i198602-198701
BEIGE,BEIGE,TRIM4#
sub67640-87026
main67640-87029-03i198701-198808
GRAY,GRAY,TRIM1#,8#
sub67640-87026
main67640-87029-05i198701-198808
BEIGE,BEIGE,TRIM4#
sub67640-87026
main67640-87030-05i198701-198808
BEIGE,BEIGE,TRIM4#
sub67640-87029
67617ABASE, REAR DOOR TRIM, RH
main62035-28010-03i198211-198508
GRAY,GRAY,TRIM1#
main62035-28010-05i198211-198408
BEIGE,BEIGE,TRIM4#
main62035-28010-13i198508-198808
GRAY,GRAY,TRIM1#,8#
main62035-28010-15i198408-198508
BEIGE,BEIGE,TRIM4#
main62035-28010-25i198508-198808
BEIGE,BEIGE,TRIM4#
main67617-28010i198211-198408
BEIGE
main67617-28010-15i198408-198508
BEIGE,BEIGE,TRIM4#
sub67617-28010
main67617-28010-25i198508-198808
BEIGE,BEIGE,TRIM4#
sub67617-28010
67618ABASE, REAR DOOR TRIM, LH
main62036-87001-03i198211-198508
GRAY,GRAY,TRIM1#
main62036-87001-05i198211-198408
BEIGE,BEIGE,TRIM4#
main62036-87001-13i198508-198808
GRAY,GRAY,TRIM8#
main62036-87001-15i198408-198508
BEIGE,BEIGE,TRIM4#
main62036-87001-25i198508-198808
BEIGE,BEIGE,TRIM4#
main67618-87001-05i198211-198408
BEIGE,BEIGE,TRIM4#
main67618-87001-15i198408-198508
BEIGE,BEIGE,TRIM4#
main67618-87001-25i198508-198808
BEIGE,BEIGE,TRIM4#
67785CHOLDER, DOOR LOCKING BUTTON COLLAR(FOR SLIDE DOOR)
main69751-87001i198211-198808
67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2
main67852-87001i198211-198808
6777120022WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20022
6777122020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-22020
6777222010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-22010
9011906139
main90119-06139
9046708038
main90467-08038
9046708047
main90467-08047
9054109030
main90541-09030
9095001429
main90950-01429
9354015010
main93540-15010

25 parts on this diagram · 1 diagram in section
