E
EPC Data

SIDE MEMBER

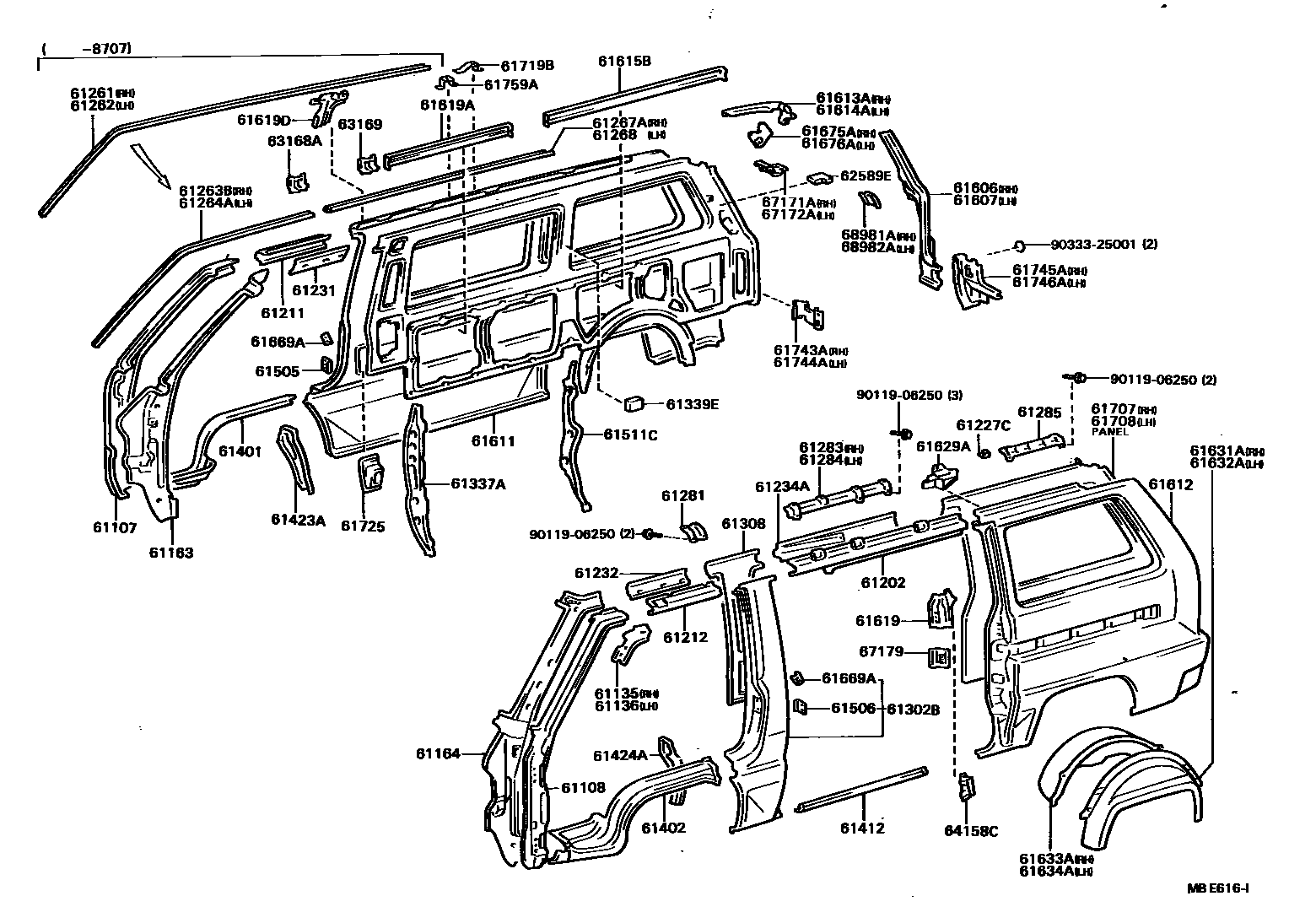

Parts diagram
61107PILLAR SUB-ASSY, FRONT BODY OUTER, RH
main61027-87005i198211-198808
main61027-87006i198211-198808
W/ANTENNA
main61027-87008i198211-198508
W/*UB
main61027-87009i198508-198808
61108PILLAR SUB-ASSY, FRONT BODY OUTER, LH
main61028-28020i198211-198808
W/ANTENNA
main61028-28040i198211-198508
W/*UB,ANTENNA
main61028-87006i198211-198808
main61028-87009i198211-198508
W/*UB
main61028-87012i198508-198808
61135REINFORCEMENT, FRONT BODY PILLAR, UPPER RH
main61135-87001i198211-198808
61136REINFORCEMENT, FRONT BODY PILLAR, UPPER LH
main61136-87001i198211-198808
61163PILLAR, FRONT BODY, INNER RH
main61023-28010i198211-198309
sub61023-28020
main61023-28020i198211-198309
W/SUN ROOF
main61023-28020i198309-198808
main61023-87014i198508-198808
main61023-87014i198211-198508
W/SUN ROOF
main61023-87015i198211-198508
61164PILLAR, FRONT BODY, INNER LH
main61024-28010i198211-198309
sub61024-28020
main61024-28020i198211-198309
W/SUN ROOF
main61024-28020i198309-198808
main61024-87010i198508-198808
main61024-87010i198211-198508
W/SUN ROOF
main61024-87011i198211-198508
61202RAIL SUB-ASSY, ROOF SIDE, LH
main61202-87009i198211-198808
sub61202-28080
main61202-87010i198211-198808
W/SUN ROOF
sub61201-28100
main61202-87014i198508-198808
61211RAIL, ROOF SIDE, OUTER RH
main61203-87001i198508-198808
main61211-87005i198211-198808
61212RAIL, ROOF SIDE, OUTER LH
main61204-87001i198508-198808
main61212-87007i198211-198808
61227CBRACKET, REAR DOOR RAIL
main61227-87001i198211-198808
61231RAIL, ROOF SIDE, INNER RH
main61231-87003i198211-198808
61232RAIL, ROOF SIDE, INNER LH
main61232-87003i198211-198808
61234ARAIL, ROOF SIDE, INNER NO.2 LH
main61208-87002i198211-198808
W/SUN ROOF
main61208-87003i198508-198808
sub61208-87002
main61234-87003i198211-198808
sub61208-87002
61261CHANNEL, ROOF DRIP, RH
main61261-28010i198307-198707
main61261-87002i198211-198307
sub61261-28010
61262CHANNEL, ROOF DRIP, LH
main61262-28010i198307-198707
main61262-87002i198211-198307
sub61262-28010
61263BCHANNEL, ROOF DRIP SIDE, FRONT RH
main61263-87004i198707-198808
61264ACHANNEL, ROOF DRIP SIDE, FRONT LH
main61264-87004i198707-198808
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
main61267-87003i198707-198808
61268CHANNEL, ROOF DRIP SIDE, REAR LH
main61268-87003i198707-198808
61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1
main61281-87001i198211-198808
W/SUN ROOF
61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH
main63067-28010i198211-198808
W/SUN ROOF
main63067-87001i198211-198808
W/SUN ROOF
61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH
main63068-28010i198211-198808
W/SUN ROOF
main63068-87001i198211-198808
W/SUN ROOF
61285BRACKET, SLIDING ROOF HOUSING SIDE
main61285-87001i198211-198808
W/SUN ROOF
61302BPILLAR, CENTER BODY, OUTER LH
main61302-87003i198211-198310
sub61302-87012
main61302-87004i198211-198808
sub61302-95D02
main61302-87005i198310-198508
sub61302-87003
main61302-87007i198508-198707
W/LARGE SIDE MOULDING
sub61302-87009
main61302-87008i198707-198808
sub61302-95D02
main61302-87009i198707-198808
W/LARGE SIDE MOULDING
main61302-95D02i198601-198808
61308PILLAR SUB-ASSY, CENTER BODY, INNER LH
main61308-87024i198211-198808
main61308-87028i198211-198508
sub61308-87024
main61308-87029i198211-198808
main61308-87035i198508-198808
W/SWIVEL SEAT
main61308-87036i198508-198808
W/ROOF RACK
61337AREINFORCEMENT, CENTER BODY PILLAR, INNER RH
main61337-87001i198211-198808
61339ESEAL, CENTER BODY PILLAR, INNER NO.2
main61339-87001i198801-198808
61401PANEL SUB-ASSY, FENDER, RH
main61403-87005i198211-198501
sub61403-87007
main61403-87007i198501-198808
61402PANEL SUB-ASSY, FENDER, LH
main61404-87004i198211-198501
sub61404-87006
main61404-87006i198501-198808
61412PANEL, ROCKER, OUTER LH
main61431-87001i198211-198808
61423APANEL, FENDER, INNER LOWER RH
main61423-87001i198211-198808
61424APANEL, FENDER, INNER LOWER LH
main61424-87001i198211-198808
61505REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH
main61505-87001i198211-198808
61506REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH
main61505-87001i198211-198808
61511CREINFORCEMENT, QUARTER LOCK PILLAR, RH
main61517-87001i198211-198808
main61707-87001i198211-198808
61606FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH
main61771-87001i198408-198508
W/O *RW
main61771-87001i198211-198408
main61771-87002i198211-198408
W/*RW
main61771-87003i198408-198808
61607FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH
main61772-87001i198211-198808
61611PANEL, QUARTER, RH
main61611-28010i198401-198501
sub61611-28020
sub61631-87003
main61611-28020i198501-198808
main61611-87008i198211-198501
sub61611-87011
sub61631-87004
main61611-87009i198211-198403
sub61611-87012
sub61631-87004
main61611-87010i198403-198501
sub61611-87013
sub61631-87003
main61611-87011i198501-198808
sub61611-87013
main61611-87013i198501-198808
sub61611-87015
main61611-87014i198508-198808
W/LARGE SIDE MOULDING
sub61611-87016
61612PANEL, QUARTER, LH
main61612-28010i198211-198501
sub61612-28030
sub61632-87003
main61612-28030i198501-198808
main61612-87004i198211-198501
sub61612-87006
sub61632-87004
main61612-87005i198403-198501
sub61612-87007
sub61632-87003
main61612-87006i198501-198808
sub61612-87007
main61612-87007i198501-198808
main61612-87008i198508-198808
W/LARGE SIDE MOULDING
61613AEXTENSION, QUARTER PANEL REAR, RH
main61625-87002i198211-198808
W/*RW
main61625-87003i198211-198808
main61625-87006i198508-198703
main61625-87008i198703-198808
sub61625-87006
61614AEXTENSION, QUARTER PANEL, REAR LH
main61626-87002i198211-198808
main61626-87003i198508-198703
main61626-87004i198703-198808
61615BREINFORCEMENT, QUARTER PANEL, OUTER FRONT
main61615-87001i198211-198410
main61615-87002i198211-198410
61619REINFORCEMENT, SLIDE DOOR LOCK STRIKER
main61503-87001i198211-198808
main61504-87001i198211-198808
61619AREINFORCEMENT, QUARTER PANEL
main61619-87003i198211-198410
61619DREINFORCEMENT, QUARTER PANEL, RH
main61619-95D00i198608-198808
main61619-95D01i198601-198808
61629AREINFORCEMENT, QUARTER PANEL, LH
main61629-95D00i198601-198808
main61629-95D01i198608-198808
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
main61631-87001i198211-198501
sub61631-87003
main61631-87003i198501-198808
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
main61632-87001i198211-198501
sub61632-87003
main61632-87003i198501-198808
sub61632-87005
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
main61607-87031i198508-198808
main61633-87002i198211-198508
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
main61608-87002i198508-198808
main61634-87002i198211-198508
61669ARETAINER, FRONT DOOR OPEN SWITCH SET
main61669-87001i198211-198808
61675AREINFORCE, SEAT BELT ANCHOR, NO.2 UPPER RH
main61675-28010i198211-198808
main61675-87001i198211-198808
61676AREINFORCE, SEAT BELT ANCHOR, NO.2 UPPER LH
main61676-28010i198211-198808
main61676-87001i198211-198808
61707PANEL SUB-ASSY, QUARTER, INNER RH
main61073-87001i198608-198808
sub61703-87G05
main61073-87002i198608-198808
sub61073-87004
main61073-87003i198608-198808
W/SUN ROOF
main61073-87004i198608-198808
W/SUN ROOF
main61073-87005i198608-198808
W/SWIVEL SEAT
sub61703-87G05
main61073-87006i198608-198808
W/SUN ROOF,SWIVEL SEAT
sub61073-87003
main61073-87007i198608-198808
W/SWIVEL SEAT
sub61073-87003
main61703-28010i198211-198408
sub61703-28900
main61703-28020i198211-198408
sub61703-28901
main61703-28050i198408-198501
sub61703-28904
main61703-28070i198408-198501
sub61703-28906
main61703-28904i198501-198508
main61703-28906i198501-198508
main61703-28908i198508-198808
W/SUN ROOF
main61703-28909i198508-198808
W/SUN ROOF
main61703-28911i198508-198808
main61703-28912i198508-198808
main61703-87023i198211-198301
sub61703-87G28
main61703-87039i198211-198312
sub61073-87003
main61703-87039i198312-198408
W/SUN ROOF
sub61073-87003
main61703-87040i198211-198312
sub61073-87004
main61703-87040i198312-198408
W/SUN ROOF
sub61073-87004
main61703-87042i198301-198408
sub61703-87067
main61703-87049i198312-198408
sub61703-87074
main61703-87050i198312-198408
sub61703-87075
main61703-87055i198408-198508
W/SUN ROOF
sub61703-87G35
main61703-87056i198408-198508
W/SUN ROOF
sub61703-87G36
main61703-87067i198408-198508
sub61073-87003
main61703-87074i198408-198508
sub61703-87G33
main61703-87075i198408-198508
sub61703-87G34
main61703-87G01i198508-198608
W/SWIVEL SEAT
sub61073-87003
main61703-87G02i198508-198608
sub61703-87G05
main61703-87G05i198508-198608
W/SWIVEL SEAT
main61703-87G06i198508-198608
W/SUN ROOF,SWIVEL SEAT
sub61073-87003
main61703-87G33i198508-198608
sub61703-87G05
main61703-87G34i198508-198608
sub61073-87004
main61703-87G35i198508-198608
W/SUN ROOF
sub61073-87003
main61703-87G36i198508-198608
W/SUN ROOF
sub61073-87004
main61703-87G79i198608-198808
sub61073-87003
61708PANEL SUB-ASSY, QUARTER, INNER LH
main61704-28010i198211-198501
sub61704-28900
main61704-28020i198211-198501
sub61704-28901
main61704-28900i198501-198508
main61704-28901i198501-198508
main61704-28906i198508-198808
W/SUN ROOF
main61704-28907i198508-198808
W/SUN ROOF
main61704-28909i198508-198808
main61704-28910i198508-198808
main61704-87025i198211-198301
sub61704-87046
main61704-87034i198312-198508
W/SUN ROOF
sub61704-87051
main61704-87034i198211-198312
sub61704-87051
main61704-87035i198211-198312
sub61704-87052
main61704-87035i198312-198508
W/SUN ROOF
sub61704-87052
main61704-87036i198301-198508
sub61704-87053
main61704-87037i198312-198508
sub61704-87053
main61704-87038i198312-198508
sub61704-87054
main61704-87043i198508-198608
main61704-87051i198508-198808
W/SUN ROOF
main61704-87052i198508-198808
W/SUN ROOF
sub61704-87051
main61704-87053i198508-198808
main61704-87054i198508-198808
sub61704-87053
main61704-87065i198608-198808
61719BBRACKET, ROOF SIDE, INNER
main61719-87001i198508-198808
61725BOX, FUEL INLET
main61709-28010i198608-198808
W/FUEL LID OPENER
main61709-87005i198211-198708
main61709-87006i198508-198808
W/FUEL LID OPENER
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
main61743-87001i198211-198808
61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH
main61744-87001i198211-198808
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
main61745-87001i198211-198808
61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH
main61746-87001i198211-198808
61759ABRACKET, ROOF SIDE REINFORCEMENT
main61759-87001i198508-198808
62589EPAD, QUARTER PILLAR
main62589-87001i198801-198808
63168ARETAINER, ROOF REINFORCEMENT, NO.1
main63168-87001i198211-198808
63169RETAINER, ROOF REINFORCEMENT, NO.2
main63169-87001i198211-198808
64158CREINFORCEMENT, REAR PILLAR, LOWER LH
main64158-87001i198211-198808
67171AREINFORCEMENT, DOOR HINGE, RH
main67171-87002i198508-198808
67172AREINFORCEMENT, DOOR HINGE, LH
main67172-87002i198508-198808
67179RETAINER, REAR DOOR SWITCH, LH
main67179-87001i198211-198808
68981ARETAINER, BACK DOOR STAY, RH
main68981-87002i198211-198808
main68981-87003i198211-198808
68982ARETAINER, BACK DOOR STAY, LH
main68982-87001i198211-198808
main68982-87002i198211-198808
9011906250
main90119-06250
9033325001
main90333-25001

73 parts on this diagram · 4 diagrams in section

SIDE MEMBER — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
