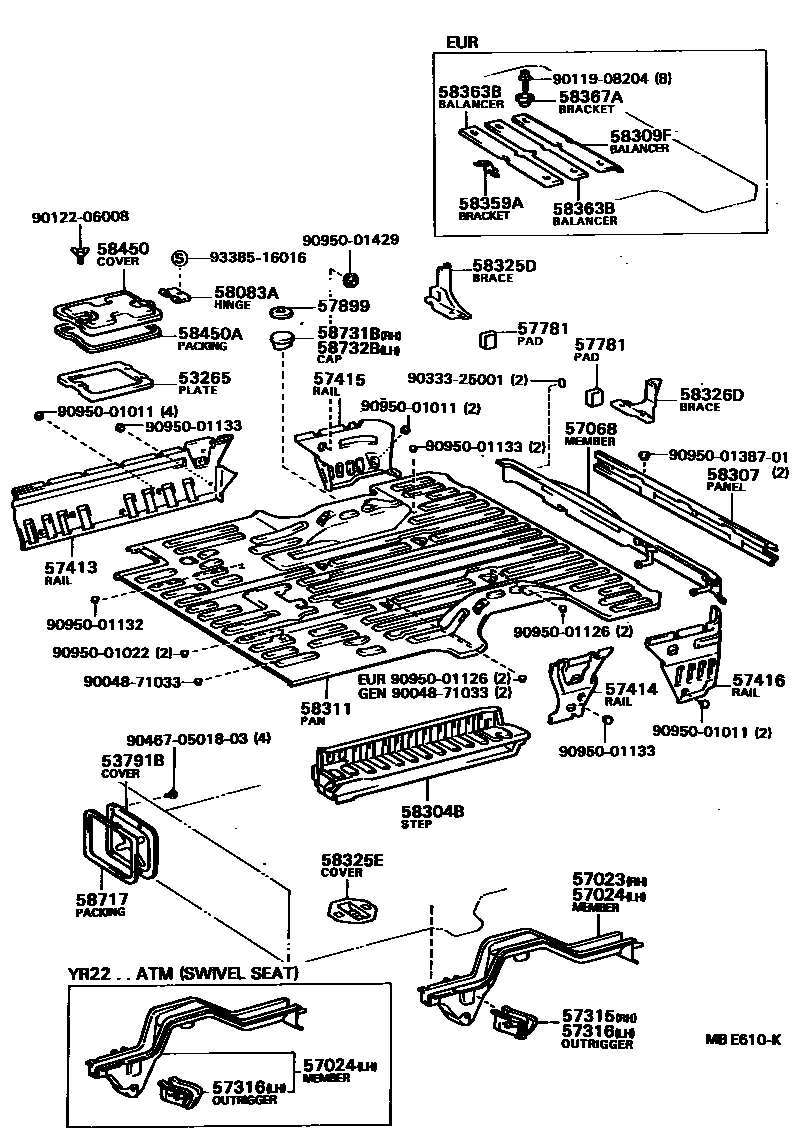

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1

53265PLATE, BATTERY CARRIER MOUNTING, NO.2

main53205-87001iCR21,YR2#..RHD¥2,930198608-198808

main53205-95D00iYR31..ARL¥2,930198601-198808

sub53205-87001¥2,930

main53265-87007iCR21,YR2#..RHD198211-198608

main53266-28020iCR21,YR2#,31..LHD198211-198808

53791BCOVER, COOL AIR INTAKE HOLE

main53791-87003iYR31;CR21,YR20,21..ARL,GEN;CR21,YR20,21..LHD..EUR¥1,120198211-198808

57023MEMBER SUB-ASSY, REAR SIDE, RH

main57023-28901iYR2#..GL..GEN¥37,600198406-198411

sub57023-28902¥37,800

main57023-28902iYR2#..LHD..DLX..GEN¥37,800198406-198808

main57023-28903iCR21,YR2#..LHD..GL..EUR¥37,600198406-198411

sub57023-28904¥37,800

main57023-28904iYR2#..LHD..EUR¥37,800198406-198808

main57023-28906iCR21,YR20,21..RHD..EUR¥37,800198406-198808

sub57023-28904¥37,800

sub57807-87001¥2,100

main57023-28907iCR21,YR2#..RHD..(ARL,GEN)¥37,800198406-198808

sub57023-28902¥37,800

sub57807-87001¥2,100

main57023-28910iYR31..ARL¥60,600198601-198808

main57023-28911iYR31..EUR¥60,600198608-198808

57024MEMBER SUB-ASSY, REAR SIDE, LH

main57024-28901iYR20,21..LHD..GEN¥37,800198406-198808

main57024-28902iCR21,YR2#..LHD..EUR¥37,800198406-198808

main57024-28904iYR20,21..RHD..GL..EUR¥37,800198406-198808

main57024-28905iCR21,YR2#..RHD..DLX..EUR¥37,600198406-198508

sub57024-28904¥37,800

main57024-28906iYR21,22..GL..ARL¥37,800198406-198808

main57024-28907iYR2#..RHD..DLX..(ARL,GEN)¥37,600198406-198808

sub57024-28906¥37,800

main57024-28910iYR31..ARL¥60,600198601-198808

main57024-28911iYR31..EUR¥60,600198608-198808

main57024-87011iYR22..4FC..ARL198508-198808

W/SWIVEL SEAT

sub57024-87013¥40,000

57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57068-28020iCR21,YR2#..LHD..EUR¥13,900198211-198501

*FRG

sub57068-28040¥14,400

main57068-28040iYR21..LHD..5F..EUR¥14,400198501-198808

*FRG

main57068-87004iCR21,YR2#¥13,200198211-198501

sub57068-87007¥13,400

main57068-87007iYR2#..EUR,GEN¥13,400198501-198808

main57068-87009iCR21,YR2#..ARL¥13,400198508-198808

main57068-95D00iYR31..EUR¥15,100198608-198808

main57068-95D02iYR31..ARL¥15,100198601-198808

57315OUTRIGGER, NO.3 RH

main57315-28010iYR2#,31..LHD..GL¥1,150198501-198808

main57315-28040iYR2#,31..LHD..DLX¥1,150198509-198808

sub57315-28080¥3,960

main57315-87004iYR21..RHD..EUR¥1,150198508-198808

PLANT.C21-C24

main57315-87004iCR21,YR21..RHD¥1,150198501-198508

main57315-87005iYR21..LHD..DLX¥1,130198501-198509

sub57315-28080¥3,960

main57315-87006iCR21,YR2#..ARL¥1,130198508-198808

PLANT.K11

sub57315-87004¥1,150

57316OUTRIGGER, NO.3 LH

main57315-87004iYR2#,31..LHD¥1,150198501-198808

main57316-87002iYR2#,31..GL..ARL¥1,150198508-198808

PLANT.C21-C24

main57316-87002iYR21..RHD..GL¥1,150198501-198508

main57316-87003iCR21,YR21..DLX..ARL¥1,150198508-198808

PLANT.C21-C24

main57316-87003iCR21,YR21..RHD..DLX¥1,150198501-198508

main57316-87004iYR2#..GL..ARL¥1,160198508-198808

PLANT.K11

sub57316-87002¥1,150

main57316-87005iCR21,YR21..DLX..ARL¥1,160198508-198808

PLANT.K11

sub57316-87003¥1,150

57413RAIL, FLOOR SIDE, CENTER RH

main57405-28010iCR21,YR2#,31..LHD..EUR¥13,500198211-198808

sub57405-28011

sub82819-95J10¥640

main57405-87002iCR21,YR2#..RHD..(ARL,EUR)¥8,900198211-198508

sub57405-87007¥9,100

main57405-87004iCR21,YR2#..RHD..GEN¥12,800198211-198508

sub57405-87009¥9,300

main57405-87007iCR21,YR2#,31..RHD¥9,100198508-198808

sub57405-87008¥9,400

main57405-87008iYR22..4FC..ARL¥9,400198508-198808

W/SWIVEL SEAT

main57413-28010iYR20,21..LHD..GEN¥4,480198211-198808

sub57405-28060¥2,090

57414RAIL, FLOOR SIDE, CENTER LH

main57406-28010iCR21,YR2#..LHD..EUR¥13,500198211-198508

sub57406-28041¥9,300

sub90950-01022¥200

sub90950-01429¥110

main57406-28020iYR2#..LHD..GEN¥12,800198211-198508

sub57406-28031¥9,300

sub90950-01022¥200

sub90950-01429¥110

main57406-28030iYR21..GEN¥13,600198508-198808

sub57406-28031¥9,300

sub90950-01022¥200

main57406-28040iYR2#,31..LHD..EUR¥13,500198508-198808

sub57406-28041¥9,300

sub90950-01022¥200

main57406-87001iCR21,YR2#,31..RHD..(ARL,EUR)¥13,500198211-198808

sub57406-28070¥2,550

main57414-87002iCR21,YR2#..RHD..GEN198211-198508

sub57406-28070¥2,550

57415RAIL, FLOOR SIDE, REAR RH

main57047-28020iCR21,YR2#..EUR¥6,500198403-198508

sub57047-87007¥6,300

sub90950-01429¥110

main57047-28030iYR21..GEN¥6,400198508-198808

main57047-87001iCR21,YR20..LHD..EUR¥6,500198211-198508

sub57047-87007¥6,300

sub90950-01429¥110

main57047-87003iYR2#..LHD..GEN198211-198508

main57047-87005iCR21,YR21..ARL¥6,500198403-198508

sub57047-87006¥6,500

main57047-87006iCR21,YR2#..ARL¥6,500198508-198512

sub57047-87007¥6,300

main57047-87007iYR21..EUR¥6,300198508-198808

57416RAIL, FLOOR SIDE, REAR LH

main57048-28020iCR21,YR2#..RHD..EUR¥6,500198308-198508

sub57048-87009¥6,300

sub90950-01429¥110

main57048-28030iYR21..GEN¥6,400198508-198808

main57048-87001iCR21,YR20..LHD..EUR¥6,500198211-198403

sub57048-87009¥6,300

main57048-87004iYR2#..LHD..GEN198211-198508

main57048-87006iCR21,YR21..ARL¥11,700198403-198508

sub57048-87009¥6,300

main57048-87007iCR21,YR2#..RHD..GEN¥11,700198403-198508

sub57048-87009¥6,300

main57048-87009iCR21,YR2#,31..ARL,EUR¥6,300198508-198808

57781PAD, DUST PROOF REAR FLOOR, NO.1

main57575-87002iCR21,YR2#,31¥1,950198211-198808

57899SEAL, REAR FLOOR, REAR

main57899-87001iCR21,YR2#,31..RHD¥510198508-198808

58083AHINGE SUB-ASSY, BATTERY SERVICE COVER, MALE

main58083-87002iCR21,YR2#,31¥750198211-198808

58304BSTEP SUB-ASSY, REAR FLOOR, LH

main58304-87002iCR21,YR2#..RHD¥37,900198211-198408

main58304-87004iCR21,YR2#,31..RHD¥38,100198408-198808

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-87003iCR21,YR2#¥12,000198211-198501

sub58307-87004¥11,800

sub57068-87006¥13,400

sub57068-87007¥13,400

main58307-87004iCR21,YR2#¥11,800198501-198808

main58307-95D00iYR31¥13,200198601-198808

58309FBALANCER SUB-ASSY, REAR FLOOR

main58309-28010iYR21..LHD..5F..GL..EUR198701-198808

DENMARK SPEC

main58309-28010iCR21,YR2#..EUR198211-198508

main58309-28010iYR21..LHD..GL..EUR198508-198808

NORWAY SPEC

58311PAN, REAR FLOOR

main58311-28020iYR2#..LHD..GEN198211-198508

main58311-28030iCR21,YR2#..LHD..EUR198211-198508

main58311-28080iYR2#,31..LHD¥63,400198508-198808

sub58311-28081¥68,000

sub58731-87002¥590

sub58732-87002¥590

main58311-28090iYR2#,31..LHD..GL..EUR¥63,400198508-198808

W/SWIVEL SEAT

sub58311-28091¥68,000

sub58731-87002¥590

sub58732-87002¥590

main58311-28110iYR21..LHD..5F..GL..EUR¥63,400198701-198808

DENMARK SPEC

sub58311-28111¥68,000

sub58731-87002¥590

sub58732-87002¥590

main58311-28110iYR21..LHD..GL..EUR¥63,400198508-198808

NORWAY SPEC

sub58311-28111¥68,000

sub58731-87002¥590

sub58732-87002¥590

main58311-87017iCR21,YR2#..RHD..(ARL,GEN)198211-198508

main58311-87029iCR21,YR2#..RHD..EUR198211-198508

main58311-87033iCR21,YR2#,31..ARL¥63,400198508-198808

main58311-87034iYR22..4FC..ARL¥63,400198508-198808

W/SWIVEL SEAT

main58311-87035iYR21..RHD..EUR¥63,400198508-198808

58325DBRACE, REAR FLOOR PANEL, RH

main58325-87001iCR21,YR2#,31¥1,440198211-198808

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-87002-03iYR2#,31..LHD..GL198608-198808

GRAY,GRAY,TRIM1#

main58325-87002-04iYR2#,31..RHD..GL198608-198808

BLUE,BLUE,TRIM8#

main58325-87002-06iCR21,YR2#,31198608-198808

BROWN,BROWN,TRIM4#

58326DBRACE, REAR FLOOR PANEL, LH

main58326-87001iCR21,YR2#,31¥1,440198211-198808

58359ABRACKET, REAR FLOOR BALANCER, FRONT

main58359-28010iCR21,YR2#..EUR198211-198508

58363BBALANCER, REAR FLOOR, NO.1

main58363-28010iCR21,YR2#..EUR¥27,100198211-198508

main58363-28020iYR21..LHD..GL..EUR¥27,100198508-198808

NORWAY SPEC

main58363-28020iYR21..LHD..5F..GL..EUR¥27,100198701-198808

DENMARK SPEC

58367ABRACKET, REAR FLOOR BALANCER

main58367-28010iCR21,YR2#..EUR¥650198211-198508

main58367-28010iYR21..LHD..GL..EUR¥650198508-198808

NORWAY SPEC

main58367-28010iYR21..LHD..5F..GL..EUR¥650198701-198808

DENMARK SPEC

58450COVER ASSY, BATTERY SERVICE HOLE

main58209-87001iCR21,YR2#,31¥3,310198211-198808

58450APACKING, BATTERY SERVICE HOLE COVER

main58449-87002iCR21,YR2#,31¥650198211-198808

58717PACKING, COOLER AIR INLET COVER

main58717-87004iYR31;CR21,YR20,21..ARL,GEN;CR21,YR20,21..LHD..EUR¥1,000198211-198808

58731BCAP, REAR ABSORBER, RH

main58731-87001iCR21,YR2#,31¥2,000198211-198808

58732BCAP, REAR ABSORBER, LH

main58732-87001iCR21,YR2#,31¥2,000198211-198808

9004871033

main90048-71033¥140

9011908204

main90119-08204¥180

9012206008

main90122-06008¥550

9033325001

main90333-25001¥140

904670501803

main90467-0501803

9095001011

main90950-01011¥170

9095001022

main90950-01022¥200

9095001126

main90950-01126¥360

9095001132

main90950-01132¥180

9095001133

main90950-01133¥590

909500138701

main90950-0138701

9095001429

main90950-01429¥110

9338516016

main93385-16016¥80

42 parts on this diagram · 3 diagrams in section
