FRONT FLOOR PANEL & FRONT FLOOR MEMBER

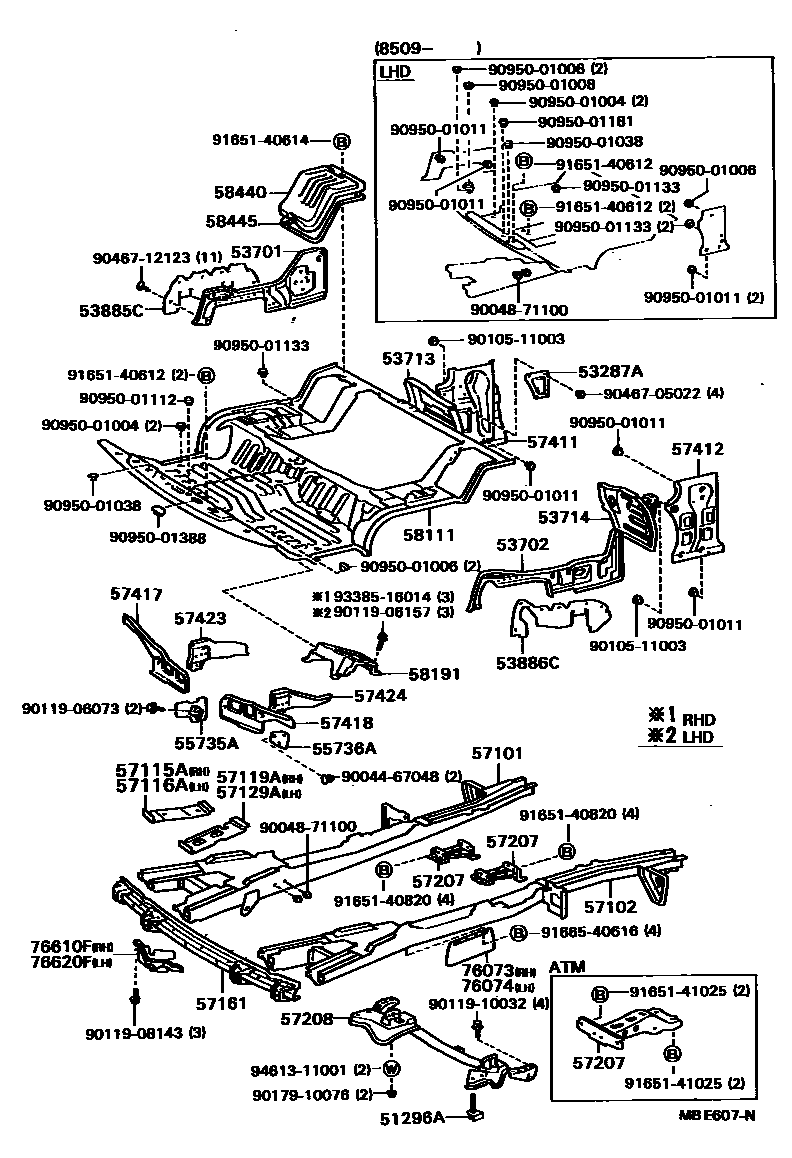

Parts diagram
51296ABOLT, ENGINE FRONT SUPPORT MEMBER
main51296-87001×2i198211-198808
RH
main51296-87002×2i198211-198808
LH
53287ACOVER, COOLER PIPE HOLE
main53287-87001i198508-198808
53701APRON SUB-ASSY, FRONT FENDER, RH
main53701-28010i198402-198808
sub53701-28011
sub31489-28110
main53701-87009i198402-198508
main53701-87010i198508-198808
53702APRON SUB-ASSY, FRONT FENDER, LH
main53702-87010i198211-198508
main53702-87012i198508-198808
53713APRON, FENDER SIDE, RH
main53707-87004i198211-198608
main53707-87011i198608-198808
53714APRON, FENDER SIDE, LH
main53708-28011i198608-198808
main53708-87001i198211-198608
main53708-87002i198305-198608
main53708-87008i198508-198608
sub53708-87007
main53708-87013i198608-198808
main53708-87014i198608-198808
sub53708-28050
main53708-87015i198608-198808
sub53708-87012
53885CSEAL, FENDER APRON MUDGUARD, RH
main53885-87003i198211-198808
main53885-95D01i198601-198808
53886CSEAL, FENDER APRON MUDGUARD, LH
main53886-87001i198211-198808
main53886-95D00i198601-198808
55735APLATE, WATER GUARD, LH
main55735-87002i198508-198808
55736ASEAL, WATER GUARD PLATE
main55736-87002i198508-198808
57101MEMBER SUB-ASSY, FRONT SIDE, RH
main57101-28010i198211-198408
main57101-28020i198211-198408
main57101-28060i198508-198808
main57101-28080i198408-198508
main57101-28090i198408-198508
main57101-28100i198508-198608
main57101-28101i198608-198808
sub47351-87003
main57101-28120i198512-198808
W/SWIVEL SEAT
main57101-87017i198211-198408
sub48815-24020
sub48823-28040
main57101-87018i198211-198408
sub48815-24020
sub48823-28040
main57101-87027i198408-198508
main57101-87028i198408-198508
main57101-87037i198508-198808
main57101-87038i198508-198808
main57101-87039i198510-198608
W/SWIVEL SEAT
main57101-87048i198608-198808
main57101-87049i198608-198808
W/SWIVEL SEAT
main57101-95D03i198601-198608
sub57101-95D11
sub90948-02123
main57101-95D05i198608-198808
sub57101-95D10
sub90948-02123
main57101-95D08i198608-198808
sub57101-95D11
sub90948-02123
57102MEMBER SUB-ASSY, FRONT SIDE, LH
main57102-28010i198211-198408
main57102-28020i198211-198408
main57102-28040i198408-198508
main57102-28050i198408-198508
main57102-28070i198508-198808
sub57102-28090
sub57219-87001
main57102-28080i198508-198608
main57102-28081i198608-198808
sub57102-28090
sub57219-87001
main57102-28100i198512-198808
W/SWIVEL SEAT
sub57102-28090
sub57219-87001
main57102-87018i198211-198408
sub48815-24020
sub48823-28040
main57102-87019i198211-198408
sub48815-24020
sub48823-28040
main57102-87020i198305-198408
sub48815-24020
sub48823-28040
main57102-87021i198305-198408
sub57102-87030
sub48815-24020
sub48823-28040
main57102-87027i198408-198508
main57102-87028i198408-198508
main57102-87029i198408-198508
sub57102-87030
main57102-87035i198508-198608
main57102-87036i198508-198608
main57102-87037i198508-198808
main57102-87038i198510-198608
W/SWIVEL SEAT
main57102-87045i198608-198808
main57102-87046i198608-198808
main57102-87047i198608-198808
W/SWIVEL SEAT
main57102-95D01i198601-198808
sub57102-95D05
sub90948-02123
main57102-95D03i198608-198808
sub57102-95D07
sub90948-02123
57115APLATE, FRONT SIDE MEMBER, OUTER RH
main57115-28020i198608-198808
main57115-87002i198211-198503
main57115-87003i198503-198508
main57115-87005i198508-198808
main57115-87006i198508-198608
57116APLATE, FRONT SIDE MEMBER, OUTER LH
main57116-28020i198608-198808
main57116-87002i198503-198508
*UB
main57116-87003i198503-198508
main57116-87005i198508-198808
main57116-87006i198508-198608
57119APLATE, FRONT SIDE MEMBER, FRONT RH
main57119-28020i198608-198808
main57119-87002i198503-198508
*UB
main57119-87003i198503-198508
main57119-87004i198508-198608
57129APLATE, FRONT SIDE MEMBER, FRONT LH
main57129-28020i198608-198808
main57129-87002i198503-198508
*UB
main57129-87003i198211-198808
main57129-87004i198508-198608
57161CROSSMEMBER, FRONT
main57104-28010i198211-198310
main57104-28020i198211-198508
W/*UB
main57104-28060i198502-198508
main57104-87005i198508-198808
main57104-87006i198310-198502
main57104-87009i198508-198808
main57104-87011i198508-198808
57207BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER
main51431-87001i198211-198308
RH
main51431-87002i198308-198808
RH
main51432-87001i198211-198308
LH
main51432-87002i198308-198808
LH
main57209-95D01i198601-198808
main57255-87004i198211-198308
main57255-87005i198308-198808
57208MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
main51025-87001i198211-198308
main51025-87002i198305-198308
main51025-87004i198308-198508
sub51025-28010
main51025-87005i198308-198508
main51025-87009i198508-198808
main51025-87010i198508-198808
sub51025-28110
main51025-95D00i198601-198808
sub51025-95D02
57411PLATE, FLOOR SIDE RAIL, RH
main57045-28010i198211-198508
main57045-28020i198508-198808
main57045-87001i198211-198403
main57045-87004i198403-198508
sub57045-28030
main57045-87006i198508-198808
sub57045-28030
57412PLATE, FLOOR SIDE RAIL, LH
main57046-28010i198211-198808
main57046-28020i198608-198808
main57046-87001i198211-198403
main57046-87003i198508-198608
sub57046-28080
main57046-87005i198508-198808
sub57046-28100
main57046-87006i198508-198808
sub57046-28080
main57046-87007i198608-198808
sub57046-28100
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
main57417-28010i198508-198808
main57417-87001i198508-198808
sub57417-28020
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
main57418-28010i198601-198808
main57418-87001i198508-198808
sub57418-28020
main57418-87002i198510-198808
57423BRACKET, FRONT FLOOR REINFORCEMENT, RH
main57423-28010i198508-198808
main57423-87001i198508-198808
sub57423-28020
57424BRACKET, FRONT FLOOR REINFORCEMENT, LH
main57424-28010i198508-198808
main57424-87001i198508-198808
sub57424-28020
58111PAN, FRONT FLOOR
main58111-28020i198211-198408
main58111-28040i198211-198408
W/COOL BOX
main58111-28070i198308-198408
W/FOOT REST
main58111-28090i198408-198508
main58111-28100i198408-198508
W/FOOTREST
main58111-28110i198408-198508
W/COOL BOX
main58111-28120i198408-198508
W/COOL BOX,FOOTREST
main58111-28130i198508-198808
main58111-28140i198508-198808
main58111-28150i198508-198808
main58111-28160i198508-198808
main58111-87018i198311-198408
main58111-87023i198211-198408
W/COOL BOX
main58111-87024i198311-198408
main58111-87025i198408-198508
main58111-87027i198408-198508
main58111-87030i198408-198508
main58111-87031i198408-198508
main58111-87032i198408-198508
W/COOL BOX
main58111-87033i198408-198508
W/COOL BOX,FOOTREST
main58111-87034i198508-198808
sub58111-87054
main58111-87036i198508-198808
main58111-87039i198508-198808
main58111-87046i198508-198808
W/COOL BOX
main58111-87047i198508-198808
W/COOL BOX
58191FOOTREST, FRONT FLOOR
main58190-28010i198408-198808
main58191-87001i198408-198808
58440COVER ASSY, BATTERY SERVICE HOLE
main58207-87002i198211-198808
58445PACKING, BATTERY SERVICE HOLE COVER
main58459-87001i198211-198808
76073PROTECTOR SUB-ASSY, STEERING MAIN SHAFT, RH
main76073-95D00i198601-198808
76074PROTECTOR SUB-ASSY, STEERING MAIN SHAFT, LH
main76073-95D00i198601-198808
76610FPROTECTOR ASSY, STEERING MAIN SHAFT, RH
main76610-95D00i198601-198808
76620FPROTECTOR ASSY, STEERING MAIN SHAFT, LH
main76620-95D00i198608-198808
9004467048
main90044-67048
9004871100
main90048-71100
9010511003
main90105-11003
9011906073
main90119-06073
9011906157
main90119-06157
9011908143
main90119-08143
9011910032
main90119-10032
9017910076
main90179-10076
9046705022
main90467-05022
9046712123
main90467-12123
9095001004
main90950-01004
9095001006
main90950-01006
9095001008
main90950-01008
9095001011
main90950-01011
9095001038
main90950-01038
9095001112
main90950-01112
9095001133
main90950-01133
9095001181
main90950-01181
9095001388
main90950-01388
9165140612
main91651-40612
9165140614
main91651-40614
9165140820
main91651-40820
9165141025
main91651-41025
9166540616
main91665-40616
9338516014
main93385-16014
9461311001
main94613-11001

59 parts on this diagram · 3 diagrams in section
