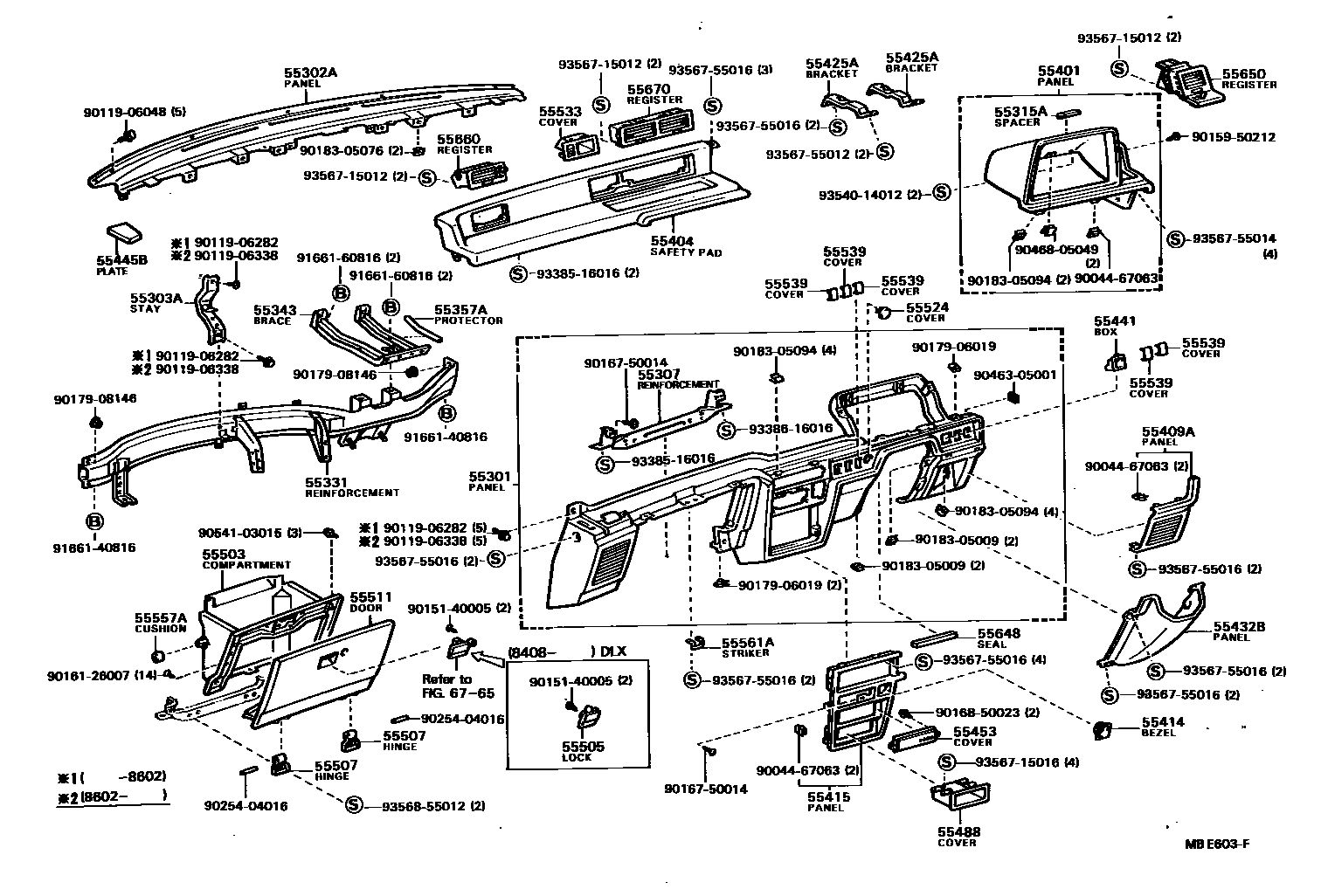

INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
WINE,WINE,TRIM4#
BLUE,BLUE,TRIM1#
BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM4#
55303ASTAY SUB-ASSY, INSTRUMENT PANEL
55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER
55315ASPACER, INSTRUMENT PANEL, NO.1
55331REINFORCEMENT, INSTRUMENT PANEL
*SOOS
55357APROTECTOR, EDGE, NO.1
55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
WINE
55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
WINE,WINE,TRIM4#
BLUE,BLUE,TRIM1#
GRAY & BLUE,GRAY
BEIGE & WINE,BEIGE
GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
WINE,RED/MAROON,TRIM4#
BLUE,BLUE,TRIM1#
GRAY & BLUE,GRAY
BEIGE & WINE,BEIGE
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER
55414BEZEL, CIGAR LIGHTER HOLE
55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER
BLACK,BLACK,TRIM4#
WINE,WINE,TRIM4#
BLUE,BLUE,TRIM1#
55425ABRACKET, METER HOOD SET
55432BPANEL, INSTRUMENT PANEL FINISH, LOWER
55441BOX, INSTRUMENT PANEL
55445BPLATE, INSTRUMENT PANEL FINISH
55453COVER, RADIO TUNER OPENING
55488COVER, STEREO OPENING
sub55521-28020
55503COMPARTMENT SUB-ASSY, GLOVE
55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
55507HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR
LH
RH
55511DOOR, GLOVE COMPARTMENT
WINE,WINE,TRIM4#
BROWN,BROWN,TRIM4#
55524COVER, SWITCH BACE HOLE
55539COVER, SPARE SWITCH HOLE
55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK
55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK
55648SEAL, INSTRUMENT PANEL UNDER COVER, NO.1
W/*TIS
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
WINE,RED/MAROON,TRIM4#
BLUE,BLUE,TRIM1#
6765
9004467063
main90044-67063
9011906048
main90119-06048
9011906282
main90119-06282
9011906338
main90119-06338
9015140005
main90151-40005
9015950212
main90159-50212
9016126007
main90161-26007
9016750014
main90167-50014
9016850023
main90168-50023
9017906019
main90179-06019
9017908146
main90179-08146
9018305009
main90183-05009
9018305076
main90183-05076
9018305094
main90183-05094
9025404016
main90254-04016
9046305001
main90463-05001
9046805049
main90468-05049
9054103015
main90541-03015
9166140816
main91661-40816
9166160816
main91661-60816
9338516016
main93385-16016
9338616016
main93386-16016
9354014012
main93540-14012
9356715012
main93567-15012
9356715016
main93567-15016
9356755012
main93567-55012
9356755014
main93567-55014
9356755016
main93567-55016
9356855012
main93568-55012
62 parts on this diagram · 2 diagrams in section
