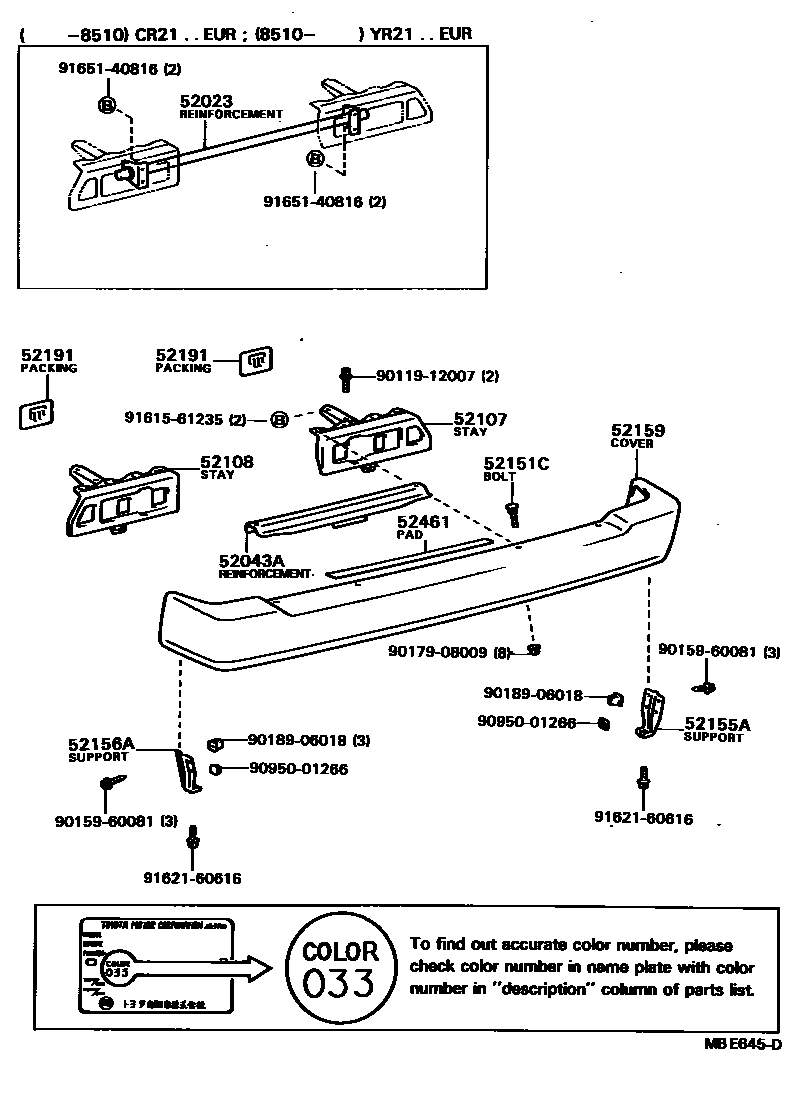

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-28010iYR20..GL..GEN198211-198308

*UB

sub52023-28030

main52023-28010iCR21,YR2#,31..ARL198508-198808

sub52023-28030

main52023-28030iYR2#..GL..GEN198308-198508

*UB

main52023-87001iYR2#..EUR198305-198808

52043AREINFORCEMENT SUB-ASSY, REAR BUMPER BAR NO.2

main52043-87001iYR2#,31..EUR,GEN198211-198808

52107STAY SUB-ASSY, REAR BUMPER, RH

main52015-87002iYR2#198211-198808

sub52015-87003

main52015-87003iYR2#..EUR198305-198808

52108STAY SUB-ASSY, REAR BUMPER, LH

main52016-87003iCR21..EUR198305-198808

main52016-87004iYR31..EUR198211-198808

sub52016-87003

52151CBOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)

main90112-08033iCR21,YR20..DLX198211-198308

BLACK

main90112-08033iCR21,YR2#..DLX198308-198808

BLACK,UPR

main90112-08056iYR2#,31..GL..(EUR,GEN)198308-198808

CHROME PLATED,UPR

main90112-08056iCR21,YR20..GL198211-198308

CHROME PLATED

main90112-08061iYR2#,31..EUR,GEN198308-198808

LWR

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-28020iYR2#..GL..GEN198211-198508

*UB

main52155-28020iCR21,YR2#,31..ARL198508-198808

main52155-87001iCR21,YR2#198211-198808

52156ASUPPORT, REAR BUMPER SIDE, LH

main52155-87001iCR21,YR2#198211-198808

main52156-28010iYR2#..GL..GEN198211-198508

*UB

main52156-28010iCR21,YR2#,31..ARL198508-198808

52159COVER, REAR BUMPER

main52159-28010iCR21,YR2#..DLX..ARL198508-198808

main52159-28020-02iYR2#..GL..GEN198211-198408

*UB,RED(391),RED/MAROON,391

sub52159-28900

sub52159-28020

main52159-28900iYR2#..GL..GEN198211-198508

*UB,UNPAINTED

main52159-28900iYR2#,31..GL..ARL198508-198808

UNPAINTED

main52159-87001iYR2#,31..EUR,GEN198605-198808

UNPAINTED

main52159-87001iCR21,YR2#..DLX198211-198605

main52159-87002-02iCR21,YR2#..GL198211-198408

RED(391),RED/MAROON,391

sub52159-87001

main52159-87002-03iCR21,YR2#..GL198211-198605

SILVER-M(148),SILVER METALLIC,148

sub52159-87001

main52159-87002-05iCR21,YR2#..GL198211-198508

ROSE BEIGE-M(3D4),BEIGE,3D4

sub52159-87001

main52159-87002-06iYR21..GL198408-198508

BROWN-M(2K9),BROWN,2K9

sub52159-87001

main52159-87002-07iCR21,YR2#..GL198211-198408

LIGHT GREEN-M(6H1),GREEN,6H1

sub52159-87001

main52159-87002-08iCR21,YR2#..GL198211-198605

WHITE(033),WHITE,033

sub52159-87001

main52159-87002-12iCR21,YR2#..GL198211-198408

RED-M(2K8),RED/MAROON,2K8

sub52159-87001

main52159-87002-14iYR21..GL198408-198508

BLUE-M(8A9),BLUE METALLIC,8A9

sub52159-87001

main52159-87002-15iYR21..GL..(EUR,GEN)198508-198605

LIGHT BEIGE-M(4D2),LIGHT BEIGE METALLIC,4D2

sub52159-87001

main52159-87002-16iYR21..GL..(EUR,GEN)198508-198605

BROWN-M(4C5,2X8),BROWN METALLIC,4C5 ,2X8

sub52159-87001

main52159-87002-22iYR21..GL198408-198508

GARNET RED-M(3E4),GARNET RED METALLIC,3E4

sub52159-87001

main52159-87002-24iYR21..GL..(EUR,GEN)198508-198605

ATLAS BLUE-M(8D4),ATLAS BLUE METALLIC,8D4

sub52159-87001

52191PACKING, REAR BUMPER STAY

main52191-28010iCR21,YR2#,31..ARL198508-198808

main52191-28010iYR2#..GL..GEN198211-198508

*UB

main52191-87002iYR2#,31..EUR,GEN198211-198808

52461PAD, REAR BUMPER, CENTER

main52461-87002iCR21,YR2#198211-198808

9011912007

main90119-12007

9015960081

main90159-60081

9017908009

main90179-08009

9018906018

main90189-06018

9095001266

main90950-01266

9161561235

main91615-61235

9162160616

main91621-60616

9165140816

main91651-40816

18 parts on this diagram · 2 diagrams in section
