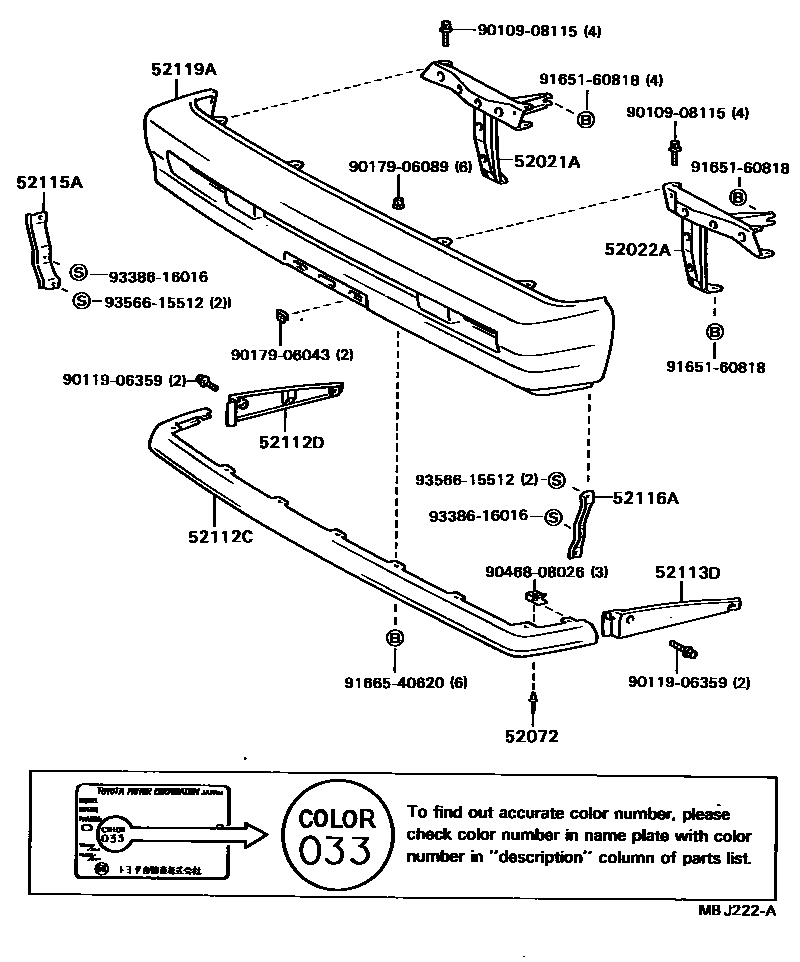

FRONT BUMPER & BUMPER STAY

0001 1 0003 1 0004 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-28010iYR2#..GL..GEN198211-198508

*UB

main52021-28040iCR21,YR2#,31..ARL198508-198808

sub52021-28030

52021AREINFORCEMENT SUB-ASSY, FRONT BUMPER, RH

main52021-87001iCR21,YR2#198211-198808

52022AREINFORCEMENT SUB-ASSY, FRONT BUMPER, LH

main52022-87001iCR21,YR2#198211-198808

52072RETAINER SUB-ASSY, FRONT BUMPER, LOWER

main52072-28010iCR21,YR2#,31..EUR198211-198808

52112CEXTENSION, FRONT BUMPER

main52112-28010iCR21,YR2#,31..EUR198211-198808

52112DEXTENSION, FRONT BUMPER, RH

main52102-87002-01iCR21,YR2#..DLX..ARL198508-198808

BLACK

main52102-87003-03iYR2#,31..GL..ARL198508-198808

SILVER-M(148),SILVER METALLIC,148

sub52102-87002

sub52102-87003

main52102-87003-05iYR2#,31..GL..ARL198508-198808

LIGHT BEIGE-M(4D2),LIGHT BEIGE METALLIC,4D2

sub52102-87002

sub52102-87003

main52102-87003-06iYR2#,31..GL..ARL198508-198608

BROWN-M(4C5,2X8),BROWN METALLIC,4C5 ,2X8

sub52102-87002

sub52102-87003

main52102-87003-08iYR2#,31..GL..ARL198508-198708

WHITE(033),WHITE,033

sub52102-87002

sub52102-87003

main52102-87003-16iYR2#,31..GL..ARL198608-198808

BROWN-M(4H4,20D),BROWN METALLIC,4H4 ,20D

sub52102-87002

sub52102-87003

main52102-87003-24iYR2#,31..GL..ARL198508-198708

BLUE-M(8D4),BLUE METALLIC,8D4

sub52102-87002

sub52102-87003

main52102-87003-28iYR2#,31..GL..ARL198708-198808

WHITE(045),WHITE,045

sub52102-87002

sub52102-87003

main52102-87003-44iYR2#,31..GL..ARL198708-198808

BLUE-M(8D7,22D),BLUE METALLIC,8D7 ,22D

sub52102-87002

sub52102-87003

main52102-87003-54iYR2#,31..GL..ARL198708-198808

LIGHT BLUE-M(8D8),LIGHT BLUE METALLIC,8D8

sub52102-87002

sub52102-87003

main52112-28020iCR21,YR2#,31..EUR198211-198808

52113DEXTENSION, FRONT BUMPER, LH

main52103-87002-01iCR21,YR2#..DLX..ARL198508-198808

BLACK

main52103-87003-03iYR2#,31..GL..ARL198508-198808

SILVER-M(148),SILVER METALLIC,148

sub52103-87002

sub52103-87003

main52103-87003-05iYR2#,31..GL..ARL198508-198808

LIGHT BEIGE-M(4D2),LIGHT BEIGE METALLIC,4D2

sub52103-87002

sub52103-87003

main52103-87003-06iYR2#,31..GL..ARL198508-198608

BROWN-M(4C5,2X8),BROWN METALLIC,4C5 ,2X8

sub52103-87002

sub52103-87003

main52103-87003-08iYR2#,31..GL..ARL198508-198708

WHITE(033),WHITE,033

sub52103-87002

sub52103-87003

main52103-87003-16iYR2#,31..GL..ARL198608-198808

BROWN-M(4H4,2OD),BROWN METALLIC,4H4 ,20D

sub52103-87002

sub52103-87003

main52103-87003-24iYR2#,31..GL..ARL198508-198708

BLUE-M(8D4),BLUE METALLIC,8D4

sub52103-87002

sub52103-87003

main52103-87003-28iYR2#,31..GL..ARL198708-198808

WHITE(045),WHITE,045

sub52103-87002

sub52103-87003

main52103-87003-44iYR2#,31..GL..ARL198708-198808

BLUE-M(8D7,22D),BLUE METALLIC,8D7 ,22D

sub52103-87002

sub52103-87003

main52103-87003-54iYR2#,31..GL..ARL198708-198808

LIGHT BLUE-M(8D8),LIGHT BLUE METALLIC,8D8

sub52103-87002

sub52103-87003

main52113-28010iCR21,YR2#,31..EUR198211-198808

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-87001iCR21,YR2#198211-198808

main52675-28010iYR2#..GL..GEN198211-198508

*UB

main52675-28020iCR21,YR2#,31..ARL198508-198808

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-87001iYR2#,31..EUR,GEN198211-198808

main52675-28010iYR2#..GL..GEN198211-198508

*UB

main52675-28020iCR21,YR2#,31..ARL198508-198808

52119ACOVER, FRONT BUMPER

main52119-28060iCR21,YR2#..DLX..ARL198508-198808

main52119-28900iYR2#..GL..GEN198211-198508

*UB,UNPAINTED

main52119-28902iYR2#,31..GL..ARL198508-198808

UNPAINTED

main52119-87001iYR21..LHD..DLX198211-198605

main52119-87001iYR2#,31..EUR,GEN198605-198808

UNPAINTED

main52119-87002-02iCR21,YR2#..GL198211-198408

RED(391),RED/MAROON,391

sub52119-87001

sub52159-87001

main52119-87002-03iYR21..GL..(EUR,GEN)198211-198605

SILVER-M(148),SILVER METALLIC,148

sub52119-87001

sub52159-87001

main52119-87002-05iCR21,YR2#..GL198211-198508

ROSE BEIGE-M(3D4),BEIGE,3D4

sub52119-87001

sub52159-87001

main52119-87002-06iYR21..GL..(EUR,GEN)198508-198605

BROWN-M(4C5,2X8),BROWN METALLIC,4C5 ,2X8

sub52119-87001

sub52159-87001

main52119-87002-07iCR21,YR2#..GL198211-198408

LIGHT GREEN-M(6H1),GREEN,6H1

sub52119-87001

sub52159-87001

main52119-87002-08iYR21..GL..(EUR,GEN)198211-198605

WHITE(033),WHITE,033

sub52119-87001

sub52159-87001

main52119-87002-14iYR21..GL198408-198508

BLUE-M(8A9),BLUE METALLIC,8A9

sub52119-87001

sub52159-87001

main52119-87002-15iYR21..GL..(EUR,GEN)198508-198605

LIGHT BEIGE-M(4D2),LIGHT BEIGE METALLIC,4D2

sub52119-87001

sub52159-87001

main52119-87002-22iYR21..GL198408-198508

GARNET RED-M(3E4),GARNET RED METALLIC,3E4

sub52119-87001

sub52159-87001

main52119-87002-24iYR21..GL..(EUR,GEN)198508-198605

ATLAS BLUE-M(8D4),ATLAS BLUE METALLIC,8D4

sub52119-87001

sub52159-87001

main52119-87003iCR21,YR20,21..LHD..DLX..EUR198211-198605

W/*HC

main52119-87003iYR21..LHD..EUR198605-198808

W/*HC,UNPAINTED

main52119-87004-05iYR21..GL198408-198508

ROSE BEIGE-M & BROWN(2K9),BEIGE/BROWN,2K9

sub52119-87004

sub52119-87001

main52119-87004-12iCR21,YR2#..GL198211-198408

SILVER-M & RED-M(2K8),RED/MAROON,2K8

sub52119-87004

sub52119-87001

main52119-87005-02iCR21,YR20..LHD..GL..EUR198211-198408

W/*HC,RED(391),RED/MAROON,391

sub52119-87003

main52119-87005-03iCR21,YR20,21..LHD..GL..EUR198211-198605

W/*HC,SILVER-M(148),SILVER METALLIC,148

sub52119-87003

main52119-87005-04iYR21..LHD..GL..EUR198408-198508

W/*HC,BLUE-M(8A9),BLUE METALLIC,8A9

sub52119-87003

main52119-87005-05iCR21,YR2#..LHD..GL..EUR198211-198508

W/*HC,ROSE BEIGE-M(3D4),BEIGE,3D4

sub52119-87003

main52119-87005-06iYR21..LHD..GL..EUR198508-198605

W/*HC,BROWN-M(4C5,2X8),BROWN METALLIC,4C5 ,2X8

sub52119-87003

main52119-87005-07iCR21,YR20..LHD..GL..EUR198211-198408

W/*HC,LIGHT GREEN-M(6H1),GREEN,6H1

sub52119-87003

main52119-87005-08iCR21,YR20,21..LHD..GL..EUR198211-198605

W/*HC,WHITE(033),WHITE,033

sub52119-87003

main52119-87005-12iYR21..LHD..GL..EUR198408-198508

W/*HC,GARNET RED-M(3E4),GARNET RED METALLIC,3E4

sub52119-87003

main52119-87005-14iYR21..LHD..GL..EUR198508-198605

W/*HC,ATLAS BLUE-M(8D4),ATLAS BLUE METALLIC,8D4

sub52119-87003

main52119-87005-15iYR21..LHD..GL..EUR198508-198605

W/*HC,LIGHT BEIGE-M(4D2),LIGHT BEIGE METALLIC,4D2

sub52119-87003

main52119-87006iCR21,YR20..LHD..GL..EUR198211-198408

W/*HC,SILVER-M & RED-M(2K8)

sub52119-87003

main52119-87006-05iYR21..LHD..GL..EUR198408-198508

W/*HC,ROSEBEIGE-M & BROWN(2K9),BEIGE/BROWN,2K9

sub52119-87006

sub52119-87003

9010908115

main90109-08115

9011906359

main90119-06359

9017906043

main90179-06043

9017906089

main90179-06089

9046808026

main90468-08026

9165160818

main91651-60818

9166540620

main91665-40620

9338616016

main93386-16016

9356615512

main93566-15512

19 parts on this diagram · 3 diagrams in section
