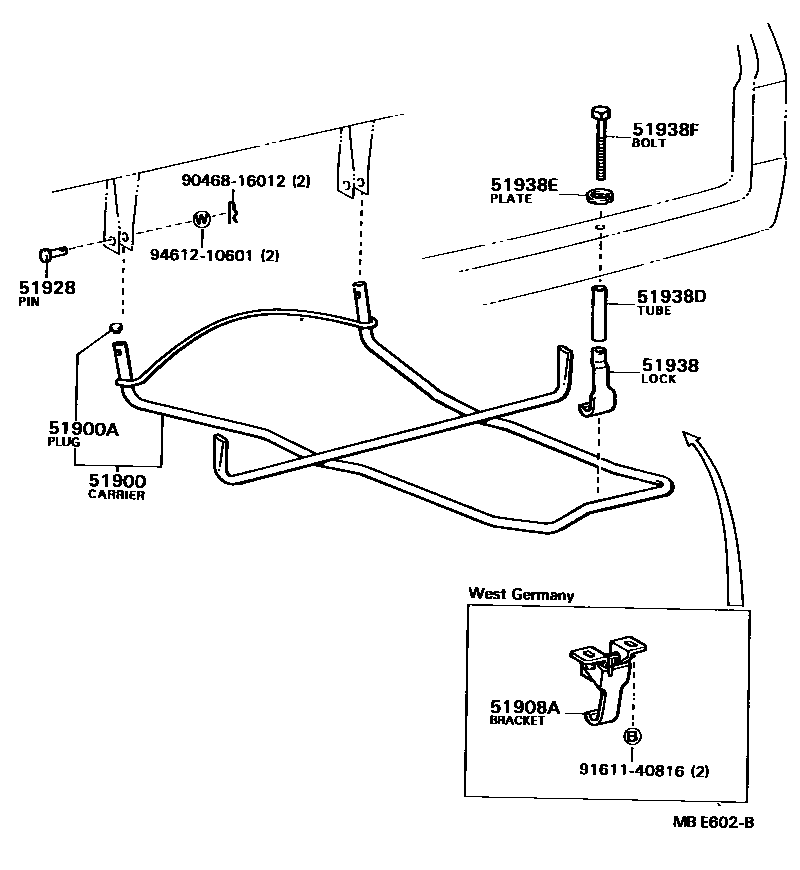

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-28020iCR21,YR2#198211-198808

sub51900-28021

main51900-28040iCR21,YR20,21..LHD..EUR198211-198808

*FRG

sub51900-28041

main51900-28050iYR31198601-198808

51900APLUG, HOLE(FOR SPARE WHEEL CARRIER)

main90950-01591iCR21,YR2#198702-198808

main90950-01592iYR31198702-198808

51908ABRACKET SUB-ASSY, SPARE WHEEL MOUNTING

main51908-28010iCR21,YR20,21..LHD..EUR198211-198808

*FRG

51928PIN, SPARE WHEEL CARRIER

main90240-06002iCR21,YR2#,31198211-198808

51938LOCK, SPARE WHEEL CARRIER

main51938-28020iCR21,YR2#198211-198511

sub51938-22020

main51938-28030iCR21,YR2#,31198511-198808

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90440-17032iCR21,YR20,21..LHD..EUR198211-198808

L=43

main90440-17032iYR31198601-198808

main90440-17033iCR21,YR2#198211-198508

main90440-17033iYR21..LHD..EUR;CR21,YR2#..ARL,GEN198508-198808

L=80.5

main90440-17036iYR21..LHD..EUR198508-198808

L=58

main90440-17037iCR21,YR2#..ARL,EUR198508-198608

L=113.5

main90440-17038iCR21,YR2#..ARL,EUR198608-198808

L=95

51938EPLATE, SPARE WHEEL CARRIER LOCK

main51937-26010iCR21,YR2#,31198211-198808

51938FBOLT(FOR SPARE WHEEL CARRIER LOCK)

main90101-12007iCR21,YR2#..ARL,EUR198608-198808

L=187.5

main90101-12094iCR21,YR20,21..LHD..EUR198211-198808

L=135

main90101-12094iYR31198601-198808

main90101-12101iYR21..LHD198508-198808

L=172

main90101-12101iCR21,YR2#198211-198508

main90101-12124iCR21,YR2#..ARL,EUR198508-198608

L=205.5

main90101-12125iYR21..LHD..EUR198508-198808

L=150

9046816012

main90468-16012

9161140816

main91611-40816

9461210601

main94612-10601

11 parts on this diagram · 1 diagram in section
