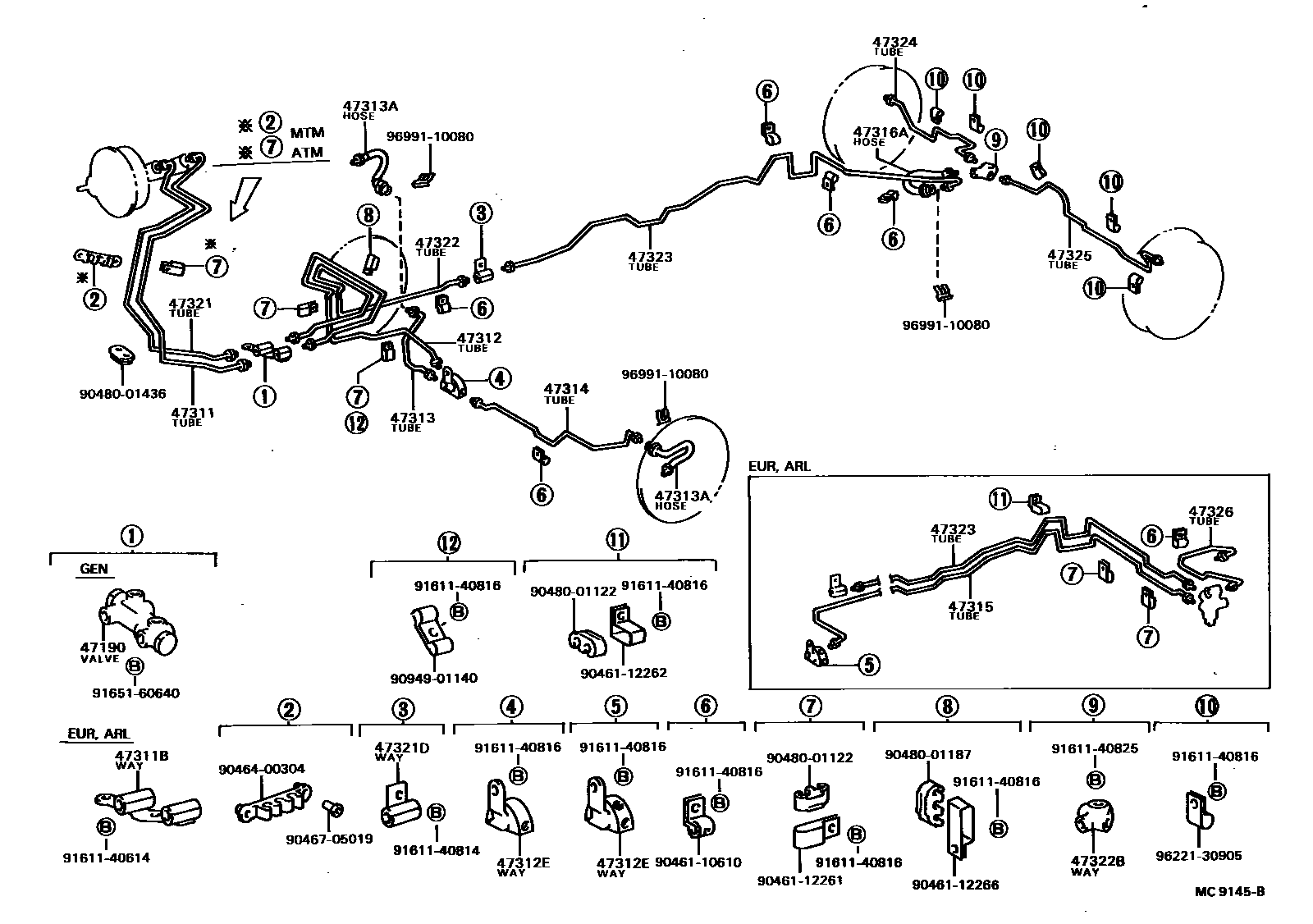

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-28020iCR21,YR21..GEN198508-198508

main47190-28030iCR21,YR2#..GEN198211-198508

47311TUBE, FRONT BRAKE, NO.1

main47311-28050iCR21,YR2#..RHD..GEN198211-198508

main47311-28060iCR21,YR2#..RHD..5F..(ARL,EUR)198211-198508

main47311-28070iCR21,YR2#..LHD..EUR198211-198508

main47311-28080iYR21..LHD..4FC;YR21..LHD..DLX..EUR198211-198508

SWEDEN SPEC

main47311-28100iYR2#..LHD..GEN198211-198508

main47311-28110iYR2#..RHD..4FC198211-198508

main47311-28180iCR21,YR2#,31..RHD..5F198508-198808

main47311-28190iYR2#,31..RHD..4FC198508-198808

main47311-28200iYR21,31..LHD;YR22..GL..EUR198508-198808

main47311-28220iYR21..DLX..EUR;YR21..LHD..4FC..EUR198508-198808

SWEDEN SPEC

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10097iCR21,YR2#,31198211-198808

47312TUBE, FRONT BRAKE, NO.2

main47312-28050iYR21..LHD..4FC;YR21..LHD..DLX..EUR198407-198508

SWEDEN SPEC

main47312-28050iCR21,YR2#198211-198508

main47312-28060iYR20..LHD..EUR198211-198407

SWEDEN SPEC

sub47312-28050

main47312-28070iYR31;CR21,YR2#..ARL,GEN198508-198808

main47312-28080iYR2#..EUR198508-198808

sub47312-28120

sub90480-01181

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90413-10025iYR31..EUR198608-198808

main90413-10129iCR21,YR2#..GEN198211-198508

main90414-10011iCR21,YR2#..ARL,EUR198211-198508

main90414-10014iCR21,YR2#,31198508-198808

47313TUBE, FRONT BRAKE, NO.3

main47313-28030iCR21,YR2#198211-198508

main47313-28030iYR20..LHD..EUR198407-198508

SWEDEN SPEC

main47313-28040iYR20..LHD..EUR198211-198407

SWEDEN SPEC

sub47313-28030

main47313-28050iCR21,YR2#..ARL,GEN198508-198608

main47313-28060iYR2#..EUR198508-198808

main47313-28070iYR31..ARL198601-198808

main47313-28080iYR31..EUR198608-198808

main47313-28090iCR21,YR2#..ARL,GEN198608-198808

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main47330-28010iYR2#..EUR198511-198808

RH

main47340-28010iYR2#..EUR198511-198808

LH

main90947-02480iYR21..EUR198508-198511

RH

main90947-02482iYR21..EUR198508-198511

LH

main90947-02505iCR21,YR2#..ARL,GEN198608-198808

main90947-02506iYR31..EUR198608-198808

main96940-32805iCR21,YR20198211-198310

main96940-32855iCR21,YR2#198310-198608

main96940-33055iYR31198601-198608

47314TUBE, FRONT BRAKE, NO.4

main47314-28030iYR20..LHD..EUR198407-198508

SWEDEN SPEC

main47314-28030iCR21,YR2#198211-198508

main47314-28040iYR20..LHD..EUR198211-198407

SWEDEN SPEC

sub47314-28030

main47314-28050iCR21,YR2#..ARL,GEN198508-198608

main47314-28060iYR2#..EUR198508-198808

main47314-28070iYR31..ARL198601-198808

main47314-28080iYR31..EUR198608-198808

main47314-28100iCR21,YR2#..ARL,GEN198608-198808

sub47314-28120

47315TUBE, FRONT BRAKE, NO.5

main47315-28020iCR21,YR2#..ARL,EUR198211-198508

main47315-28020iYR20..LHD..EUR198407-198508

SWEDEN SPEC

main47315-28030iYR20..LHD..EUR198211-198407

SWEDEN SPEC

sub47315-28020

main47315-28050iYR31..EUR198608-198808

main47315-28070iCR21,YR2#..ARL,GEN198508-198808

main47315-28080iYR31..ARL198601-198808

47316TUBE, FRONT BRAKE, NO.6

main47316-28010iYR20..LHD..EUR198211-198508

SWEDEN SPEC

main47316-28020iYR21..DLX..EUR;YR21..LHD..4FC..EUR198508-198808

SWEDEN SPEC

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02523iYR31..EUR198608-198808

sub90947-02492

main96940-33105iCR21198211-198808

main96940-33106iYR2#..EUR198705-198808

sub96940-33107

main96940-33605iYR31..ARL198601-198808

sub90947-02492

47321TUBE, REAR BRAKE, NO.1

main47321-28050iCR21,YR2#..RHD..GEN198211-198508

main47321-28060iYR2#..RHD..5F..(ARL,EUR)198211-198508

main47321-28070iCR21,YR2#..LHD..EUR198211-198508

main47321-28080iYR20..LHD..EUR198211-198508

SWEDEN SPEC

main47321-28100iYR2#..LHD..GEN198211-198508

main47321-28110iYR2#..RHD..4FC198211-198508

main47321-28180iCR21,YR2#,31..RHD..5F198508-198808

main47321-28190iYR2#,31..RHD..4FC198508-198808

main47321-28200iYR21,31..LHD;YR22..GL..EUR198508-198808

main47321-28220iYR21..DLX..EUR;YR21..LHD..4FC..EUR198508-198808

SWEDEN SPEC

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10063iYR31..EUR198211-198808

main90412-10133iYR31..ARL198601-198808

main90413-10183iYR2#..EUR198508-198808

47322TUBE, REAR BRAKE, NO.2

main47322-28050iCR21,YR2#198211-198508

main47322-28050iYR20..LHD..EUR198407-198508

SWEDEN SPEC

main47322-28060iYR20..LHD..EUR198211-198407

SWEDEN SPEC

sub47322-28050

main47322-28070iCR21,YR2#..ARL,GEN198508-198808

sub47322-28120

sub90480-01181

main47322-28080iYR2#..EUR198508-198808

main47322-28090iYR31..ARL198601-198808

sub47322-28140

sub90480-01181

main47322-28100iYR31..EUR198608-198808

sub47322-28101

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10130iCR21,YR2#,31198211-198808

47323TUBE, REAR BRAKE, NO.3

main47323-28070iCR21,YR2#..GEN198211-198508

main47323-28100iYR20..LHD..EUR198407-198508

SWEDEN SPEC

main47323-28110iYR20..LHD..EUR198211-198407

SWEDEN SPEC

sub47323-28100

main47323-28130iYR2#..EUR198508-198808

main47323-28160iCR21,YR2#..ARL,GEN198508-198808

main47323-28170iYR31..ARL198601-198808

47324TUBE, REAR BRAKE, NO.4

main47324-28030iCR21,YR20,21..GEN198211-198608

main47324-28031iYR21..GEN198608-198808

sub47324-28032

main47324-28040iCR21,YR21..ARL,EUR198211-198608

main47324-28040iYR21..LHD..4FC;YR21..LHD..DLX..EUR198407-198508

SWEDEN SPEC

main47324-28041iCR21,YR21..ARL,EUR198608-198808

main47324-28060iYR20..LHD..EUR198211-198407

SWEDEN SPEC

sub47324-28040

main47324-28070iYR22198508-198608

main47324-28071iYR22198608-198808

main47324-28071iYR21..EUR198708-198808

W/LSD

main47324-28090iYR31198601-198808

47325TUBE, REAR BRAKE, NO.5

main47325-28050iCR21,YR20,21..GEN198211-198808

main47325-28060iYR20..LHD..EUR198407-198508

SWEDEN SPEC

main47325-28060iCR21,YR2#..ARL,EUR198211-198808

main47325-28080iYR20..LHD..EUR198211-198407

SWEDEN SPEC

sub47325-28060

main47325-28090iYR21..EUR198708-198808

W/LSD

main47325-28090iYR22198508-198808

main47325-28110iYR31198601-198808

47326TUBE, REAR BRAKE, NO.6

main47326-28060iYR20..LHD..EUR198407-198508

SWEDEN SPEC

main47326-28060iCR21,YR2#,31198211-198808

main47326-28070iYR20..LHD..EUR198211-198407

SWEDEN SPEC

sub47326-28060

9046110610

main90461-10610

9046112261

main90461-12261

9046112262

main90461-12262

9046112266

main90461-12266

9046400304

main90464-00304

9046705019

main90467-05019

9048001122

main90480-01122

9048001187

main90480-01187

9048001436

main90480-01436

9094901140

main90949-01140

9161140614

main91611-40614

9161140814

main91611-40814

9161140816

main91611-40816

9161140825

main91611-40825

9165160640

main91651-60640

9622130905

main96221-30905

9699110080

main96991-10080

36 parts on this diagram · 9 diagrams in section
