STEERING WHEEL

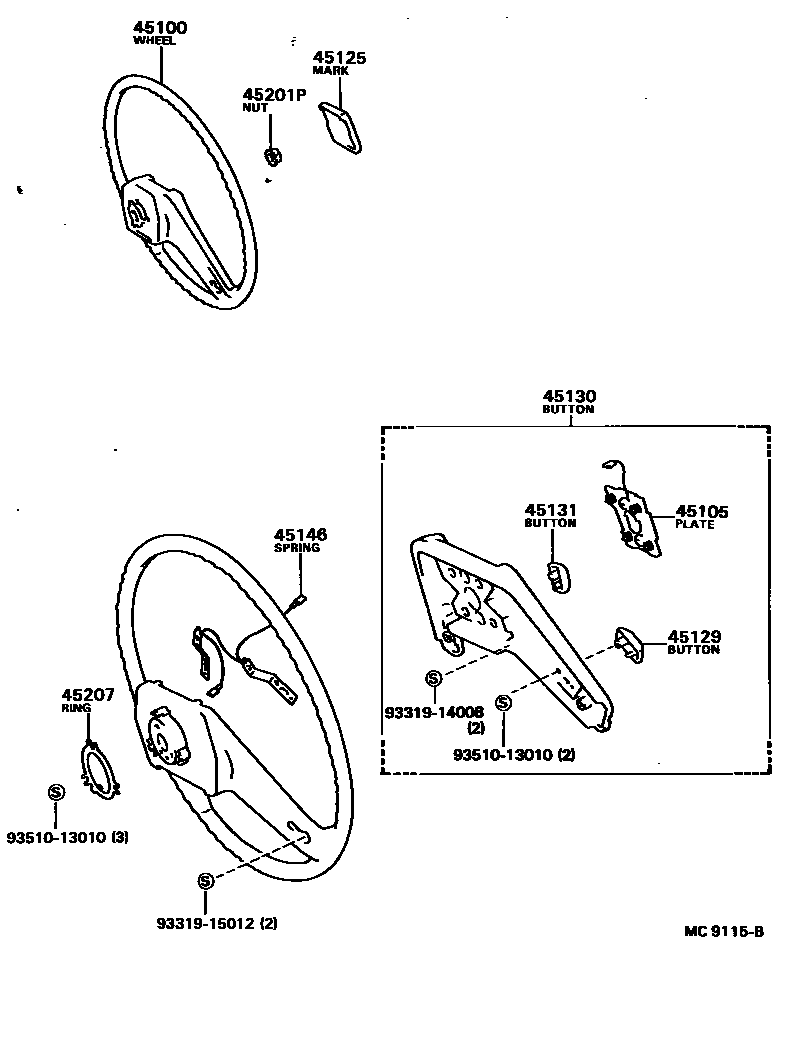

Parts diagram
45100WHEEL ASSY, STEERING
main45100-28020-01i198701-198808
LETHAER,BLACK,BLACK,TRIM4#
main45100-32010-02i198211-198508
WINE,RED/MAROON,TRIM4#
sub45100-32010
main45100-32020-02i198211-198508
URETHAN TYPE,WINE,RED/MAROON,TRIM4#
sub45100-32020
main45100-32020-03i198211-198408
URETHAN TYPE,GRAY,GRAY,TRIM1#
sub45100-32020
main45100-32020-04i198408-198508
URETHAN TYPE,BLUE,BLUE,TRIM1#
sub45100-32020
main45100-32020-05i198211-198408
URETHAN TYPE,BEIGE,BEIGE,TRIM4#
sub45100-32020
main45100-32040-03i198608-198808
URETHAN TYPE,GRAY,SHADOW GRAY,TRIM1#
sub45100-32040
main45100-32040-05i198508-198808
URETHAN TYPE,BEIGE,BEIGE,TRIM4#
sub45100-32040
main45100-32040-14i198508-198808
URETHAN TYPE,BLUE,BLUE,TRIM8#
sub45100-32040
main45100-32060-05i198508-198808
BEIGE,BEIGE,TRIM4#
sub45100-32060
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
main45105-32010i198211-198508
main45105-32020i198211-198508
URETHAN TYPE
main45105-32030i198508-198808
URETHAN TYPE
main45105-32040i198508-198808
45125MARK, STEERING WHEEL PAD
main45125-28060-02i198211-198508
WINE,RED/MAROON,TRIM4#
main45125-28060-03i198211-198408
GRAY,GRAY,TRIM1#
main45125-28060-04i198408-198508
BLUE,BLUE,TRIM1#
main45125-28060-05i198211-198408
BEIGE,BEIGE,TRIM4#
main45125-28110i198508-198808
URETHAN TYPE
main45125-28120i198508-198808
main45125-28140i198701-198808
45129BUTTON, HORN, NO.2
main45129-32010-03i198211-198408
GRAY,GRAY,TRIM1#
sub45129-32010
main45129-32010-04i198408-198508
BLUE,BLUE,TRIM1#
sub45129-32010
main45129-32010-05i198211-198408
BEIGE,BEIGE,TRIM4#
sub45129-32010
main45129-32010-12i198211-198508
WINE,RED/MAROON,TRIM4#
sub45129-32010
45130BUTTON ASSY, HORN
main45130-28060-03i198608-198808
URETHAN TYPE,GRAY,GRAY,TRIM1#
sub45130-28060
main45130-28060-04i198508-198808
URETHAN TYPE,BLUE,BLUE,TRIM8#
sub45130-28060
main45130-28060-06i198508-198808
URETHAN TYPE,BROWN,BROWN,TRIM4#
sub45130-28060
main45130-28070-06i198508-198808
BROWN,BROWN,TRIM4#
sub45130-28070
main45130-28090-01i198701-198808
BLACK,BLACK,TRIM4#
main45130-32010-02i198211-198508
WINE,RED/MAROON,TRIM4#
sub45130-32010
45131BUTTON, HORN, NO.1
main45131-32010-02i198211-198408
WINE,RED/MAROON,TRIM4#
sub45131-32010
main45131-32010-02i198408-198508
WINE,RED/MAROON,TRIM1#
sub45131-32010
main45131-32010-03i198211-198408
GRAY,GRAY,TRIM1#
sub45131-32010
main45131-32010-04i198408-198508
BLUE,BLUE,TRIM1#
sub45131-32010
main45131-32010-05i198211-198408
BEIGE,BEIGE,TRIM4#
sub45131-32010
45146SPRING, HORN BUTTON CONTACT
main45146-32010i198211-198508
main45146-32020i198211-198508
URETHAN TYPE
45201PNUT, STEERING WHEEL SET
main90179-12086i198211-198808
45207RING, HORN CONTACT
main45176-20030i198211-198808
main45176-32010i198211-198508
URETHAN TYPE
9331914008
main93319-14008
9331915012
main93319-15012
9351013010
main93510-13010

12 parts on this diagram · 5 diagrams in section
