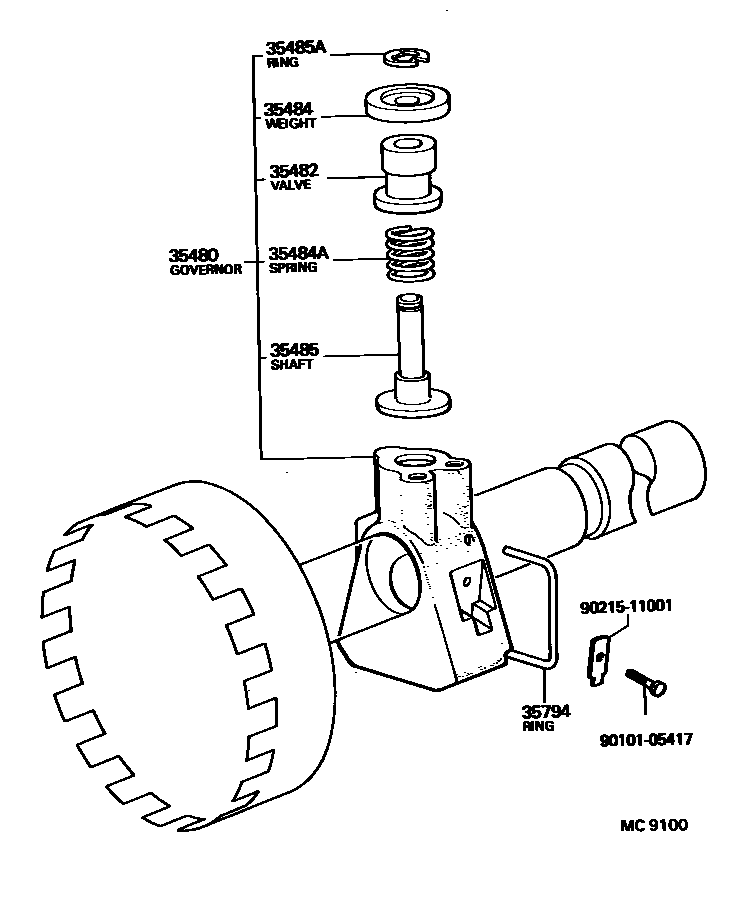

REAR OIL PUMP & GOVERNOR (ATM)

0001 1 0002 1

35480GOVERNOR

main35480-26020iYR2#..4FC198211-198508

main35480-28020iYR22,31..4FC198508-198808

main35480-28030iYR21..4FC198508-198808

35482VALVE, GOVERNOR

main35482-20010iYR2#..4FC198211-198508

main35482-28020iYR22,31..4FC198508-198808

main35482-30030iYR21..4FC198508-198808

35484WEIGHT, GOVERNOR, OUTER

main35484-20020iYR2#..4FC198211-198508

main35484-22010iYR2#,31..4FC198508-198808

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09049iYR22,31..4FC198508-198808

INNER

main90501-09069iYR22,31..4FC198508-198808

OUTER

main90501-09070iYR21..4FC198508-198808

main90501-09673iYR2#..4FC198211-198508

35485SHAFT, GOVERNOR VALVE

main35485-14010iYR22,31..4FC198508-198808

main35485-22010iYR20,21..4FC198211-198808

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iYR2#,31..4FC198211-198808

35794RING, GOVERNOR RETAINING

main35794-22010iYR2#,31..4FC198211-198808

9010105417

main90101-05417

9021511001

main90215-11001

9 parts on this diagram · 2 diagrams in section
