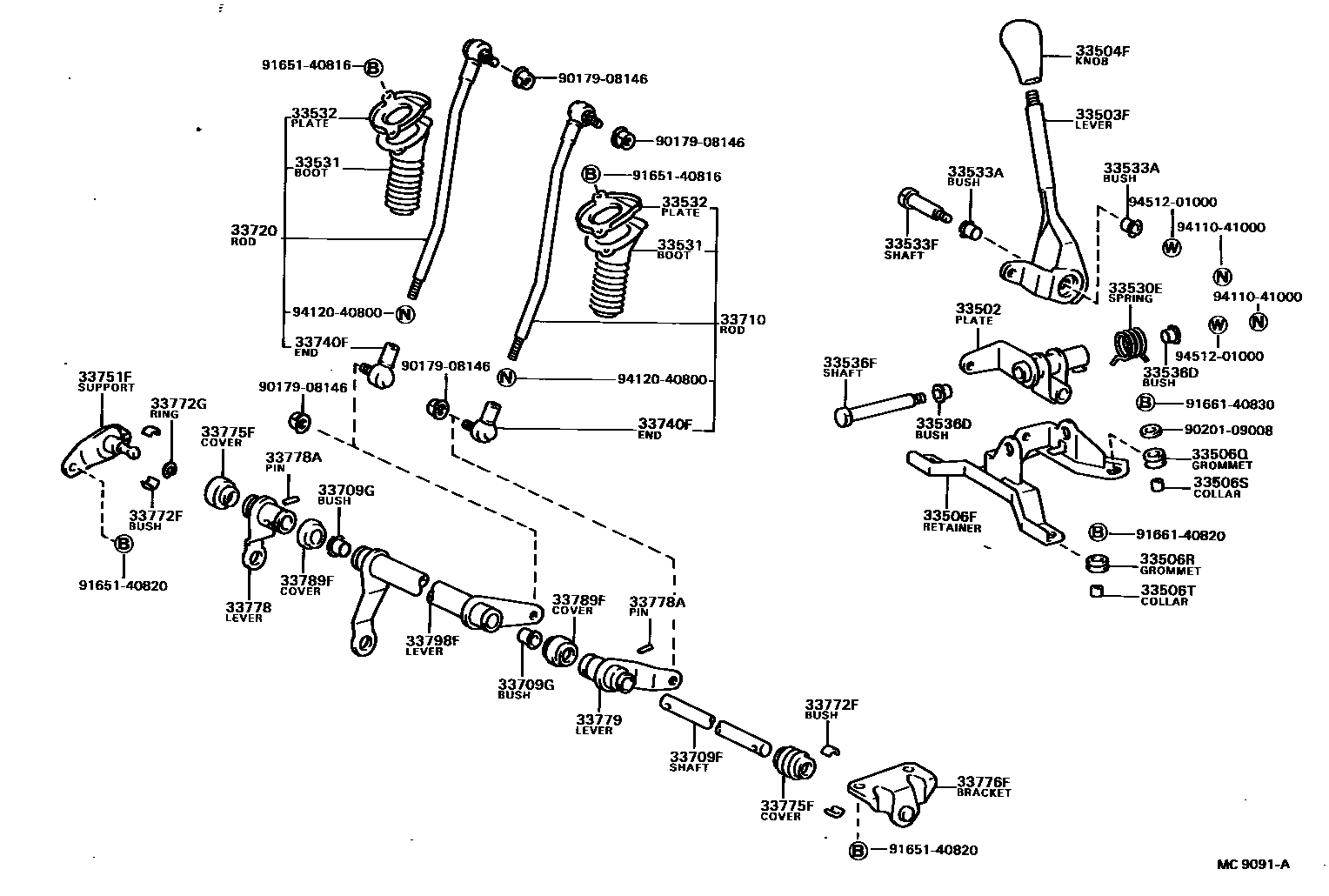

SHIFT LEVER & RETAINER
33502PLATE SUB-ASSY, SHIFT LEVER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504FKNOB SUB-ASSY, SHIFT LEVER
LETHAER,BLACK,BLACK,TRIM4#
33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
33506QGROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
33506RGROMMET, NO.2(FOR CONTROL SHIFT LEVER RETAINER)
33506SCOLLAR, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
33506TCOLLAR, NO.2(FOR CONTROL SHIFT LEVER RETAINER)
33530ESPRING, TENSION (FOR SELECT RETURN)
33531BOOT, DUST (FOR CONTROL SHIFT LEVER)
33532PLATE, DUST BOOT
33533ABUSH (FOR BELLCRANK SHAFT)
33533FSHAFT, BELLCRANK (FOR FLOOR SHIFT)
33536DBUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT)
33536FSHAFT, CONTROL SELECT LEVER (FOR FLOOR SHIFT)
33709FSHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT)
33709GBUSH (FOR CROSS SHAFT, NO.1
CROSS SHAFT NO.2
CROSS SHAFT NO.1
33710ROD ASSY, GEAR SHIFTING, NO.1
33720ROD ASSY, SHIFT LEVER HOUSING
33751FSUPPORT, GEAR SHIFT LINK LEVER (FOR FLOOR SHIFT)
33772FBUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT)
33772GRING, SNAP (FOR CROSS SAFT SUPPORT BUSH)
33775FCOVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT)
CROSS SHAFT NO.1,LH
CROSS SHAFT NO.2,RH
CROSS SHAFT NO.1,RH;CROSS SHAFT NO.2,LH
33776FBRACKET, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT)
CROSS SHAFT NO.2
CROSS SHAFT NO.1
33778LEVER, CROSS SHAFT, NO.1
CROSS SHAFT NO.1
CROSS SHAFT NO.2
33778APIN(FOR CROSS SHAFT LEVER, NO.1)
CROSS SHAFT NO.2
CROSS SHAFT NO.1
33779ARM, SHIFT LEVER HOUSING, NO.2
CROSS SHAFT NO.1
CROSS SHAFT NO.2
33789FCOVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT)
CROSS SHAFT NO.1
33798FLEVER, CROSS SHAFT, NO.3
CROSS SHAFT NO.1
CROSS SHAFT NO.2
9017908146
main90179-08146
9020109008
main90201-09008
9165140816
main91651-40816
9165140820
main91651-40820
9166140820
main91661-40820
9166140830
main91661-40830
9411041000
main94110-41000
9412040800
main94120-40800
9451201000
main94512-01000
39 parts on this diagram · 5 diagrams in section
