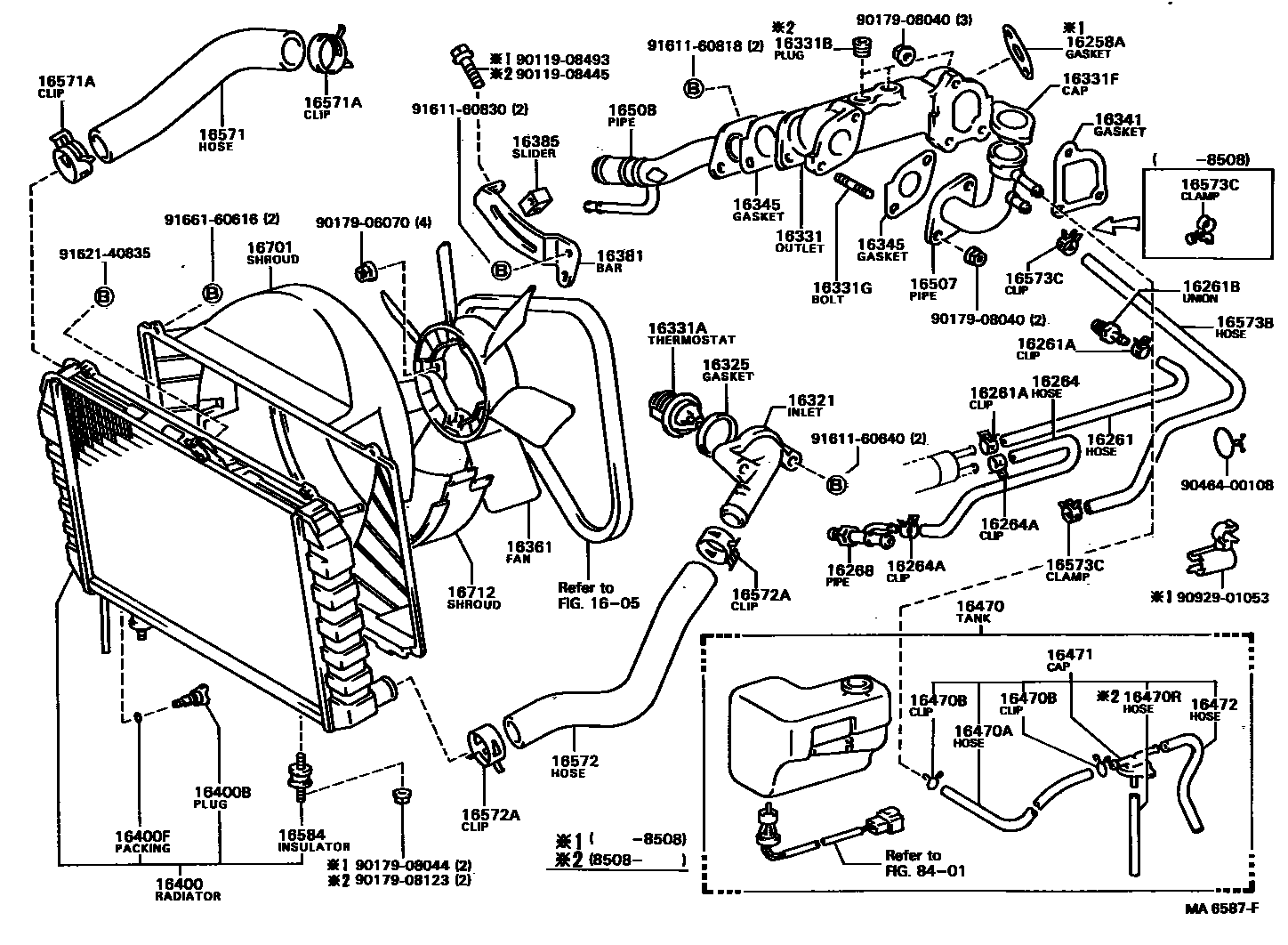

RADIATOR & WATER OUTLET
1605
16258AGASKET(FOR HEATER RETURN)
sub16258-64020
16261HOSE, WATER BY-PASS
16261BUNION(FOR WATER BY-PASS HOSE)
16264HOSE, WATER BY-PASS, NO.2
16321INLET, WATER
16325GASKET, WATER INLET HOUSING, NO.1
sub16325-63011
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 82-95
16331BPLUG(FOR WATER OUTLET)
16331GBOLT, STUD(FOR WATER INLET)
16345GASKET, WATER OUTLET PIPE
sub16345-64030
16381BAR, FAN BELT ADJUSTING
16385SLIDER, FAN BELT ADJUSTING
W/PS
16400RADIATOR ASSY
sub16400-64500
sub16400-72070
sub16400-72110
sub16400-72230
sub16400-72110
sub16400-73120
sub16400-73120
sub16400-73121
sub16400-73160
sub16400-73190
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
W/LEVEL SENSOR
W/LEVEL SENSOR
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
NO.1
L=400,NO.2
L=1800(*H,L=620),NO.1
sub90099-33370
L=1000(*H,L=420)
L=600(*H,L=105),NO.3
sub90445-12078
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
L=600(*H,L=120)
16472HOSE, BREATHER
L=600(*H,L=150)
16507PIPE SUB-ASSY, RADIATOR
16508PIPE SUB-ASSY, RADIATOR, NO.2
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-37003
16572HOSE, RADIATOR, OUTLET
16573BHOSE, RADIATOR, NO.3
16584INSULATOR, RADIATOR MOUNTING
16701SHROUD SUB-ASSY, FAN
16712SHROUD, FAN, NO.2
8401
9011908445
main90119-08445
9011908493
main90119-08493
9017906070
main90179-06070
9017908040
main90179-08040
9017908044
main90179-08044
9017908123
main90179-08123
9046400108
main90464-00108
9092901053
main90929-01053
9161160640
main91611-60640
9161160818
main91611-60818
9161160830
main91611-60830
9162140835
main91621-40835
9166160616
main91661-60616
54 parts on this diagram · 3 diagrams in section
