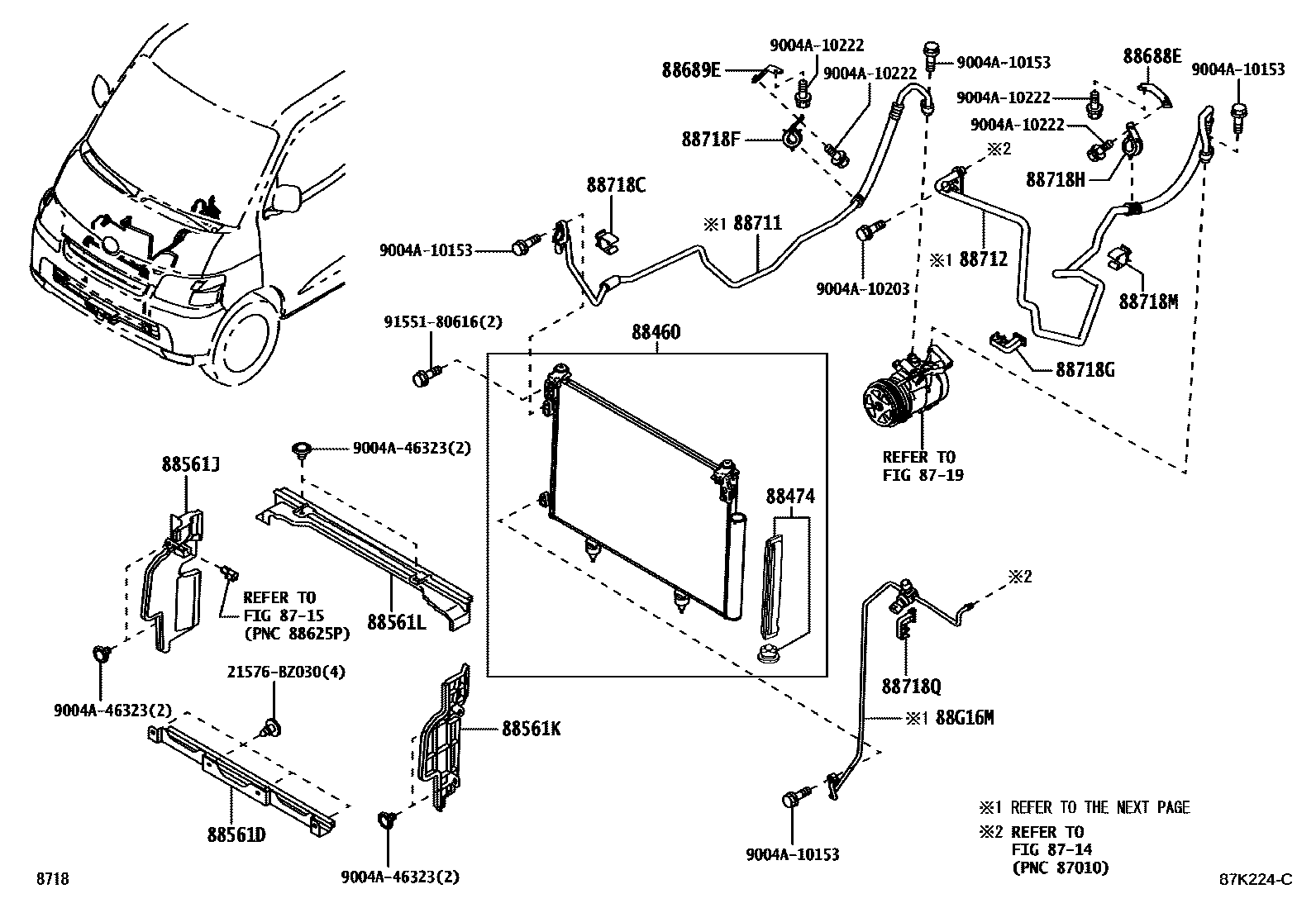

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER 0002 1TUBE ASSY 0003 1CONDENSER 0004 1TUBE ASSY

8714

8715

8719

88460CONDENSER ASSY, COOLER

main88460-BZ170iS403..PIC202201

main88460-BZ300iS403..HRF202212

88474DRYER, COOLER

main88474-B2010iS403202201

88561DGRILLE, AIR INLET NO.3

main88561-BZ630iS403202201

88561JGRILLE, AIR INLET NO.1

main88561-BZA30iS403..HRF202212

main88561-BZA80iS403..PIC202201

88561KGRILLE, AIR INLET NO.2

main88561-BZ620iS403..PIC202201

main88561-BZA50iS403..HRF202212

88561LGRILLE, AIR INLET NO.4

main88561-BZ600iS403202201

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-BZ240iS403202201

88689EBRACKET, COOLER, NO.1

main88688-BZ250iS403202201

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-BZ710iS403..PIC202201

main88711-BZ730iS403..HRF202212

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-BZA10iS403..PIC202201

main88712-BZA30iS403..HRF202212

88718CCLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)

main88718-BZ640iS403202201

88718FCLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)

main88718-BZ470iS403202201

88718GCLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)

main88718-BZ570iS403202201

88718HCLAMP, NO.3(FOR COOLER REFRIGERANT HOSE)

main88718-BZ480iS403202201

88718MCLAMP, PIPING

main88718-BZ580iS403202201

88718QCLAMP, PIPING

main88718-BZ570iS403202201

88G16MTUBE, LIQUID, NO.1

main88716-BZG80iS403202201

21576BZ030CLIP, PUMP STRAINER

main21576-BZ030

9004A10153

main9004A-10153

9004A10203

main9004A-10203

9004A10222

main9004A-10222

9004A46323

main9004A-46323

9155180616

main91551-80616

26 parts on this diagram · 4 diagrams in section
