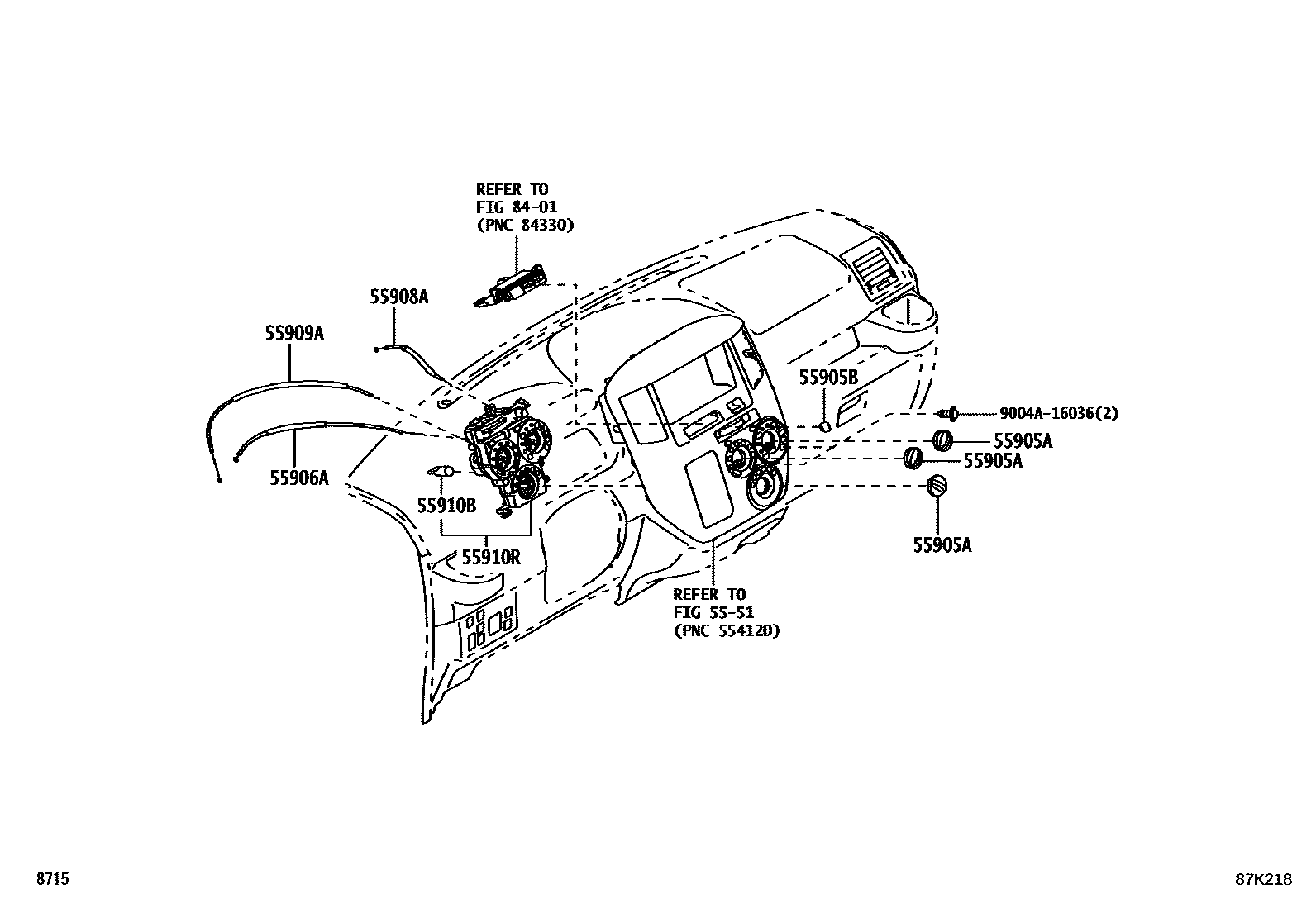

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1AIR DUCT 0003 1SENSOR 0004 1W/CIRCULATOR

5551

55905AKNOB, HEATER CONTROL

main55905-BZ440×3iS403202201

55905BKNOB, HEATER CONTROL, NO.2

main55905-BZ450iS403202201

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-BZ080iS403202201

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-BZ080iS403202201

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-BZ050iS403202201

55910BBULB, HEATER CONTROL

main81936-BZ160iS403202201

55910RCONTROL ASSY, HEATER

main55910-BZA30iS403202201

8401

9004A16036

main9004A-16036

10 parts on this diagram · 4 diagrams in section
