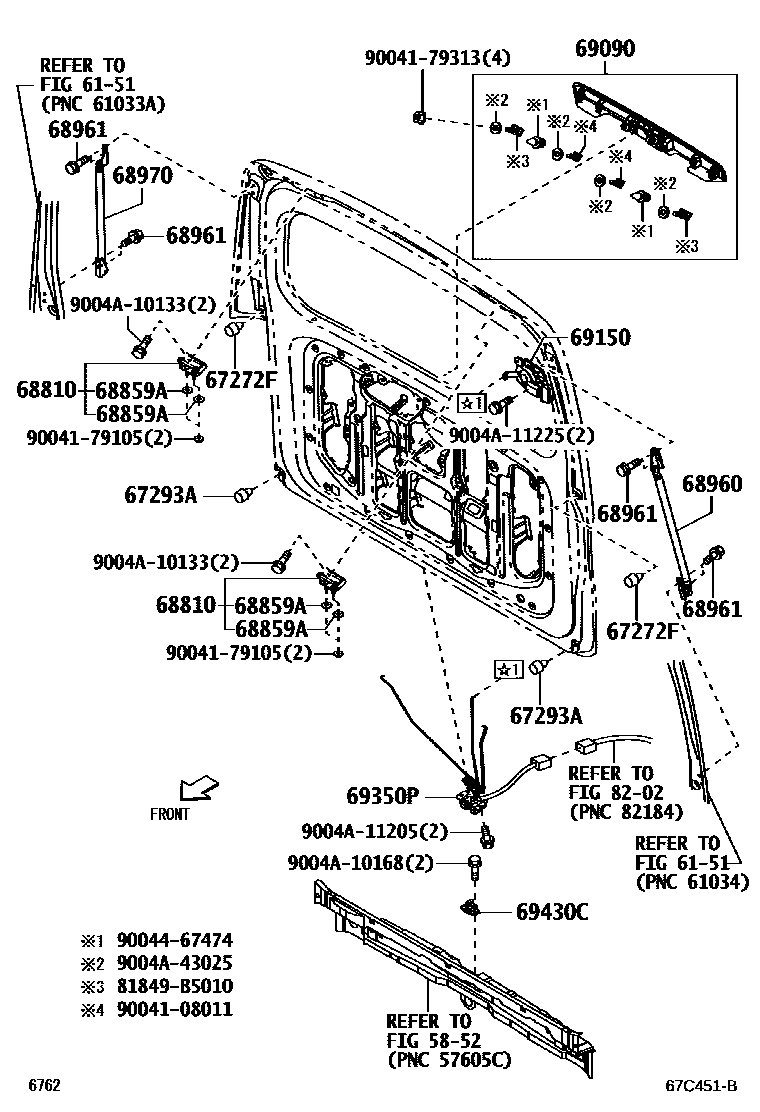

BACK DOOR LOCK & HINGE

5852

6151

67272FCUSHION, BACK DOOR STOPPER, NO.2

main9004A-54016iS403..HRF¥170202212

67293ACUSHION, BACK DOOR STOPPER

main9004A-54015iS403..HRF¥220202212

68810HINGE ASSY, BACK DOOR, UPPER

main68801-BZ091iS403..HRF¥1,390202212

68859ASPACER, BACK DOOR HINGE COVER

main68859-BZ040iS403..HRF202212

sub68859-87201¥380

68960STAY ASSY, BACK DOOR, LH

main68960-BZ260iS403..HRF¥6,000202212

68961BOLT, BACK DOOR STAY

main90041-19710iS403..HRF¥110202212

68970STAY ASSY, BACK DOOR, RH

main68950-BZ260iS403..HRF¥6,000202212

69090HANDLE ASSY, BACK DOOR, OUTSIDE

main69090-BZ050iS403..HRF¥6,300202212

69150ACTUATOR ASSY, BACK DOOR LOCK

main69150-BZ030iS403..HRF¥5,600202212

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-B5050iS403..HRF¥5,700202212

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-B5010iS403..HRF¥1,160202212

8202

81849B5010

main81849-B5010¥160

9004108011

main90041-08011¥210

9004179105

main90041-79105¥140

9004179313

main90041-79313¥120

9004467474

main90044-67474¥80

9004A10133

main9004A-10133

9004A10168

main9004A-10168

9004A11205

main9004A-11205

9004A11225

main9004A-11225

9004A43025

main9004A-43025¥110

24 parts on this diagram · 1 diagram in section
