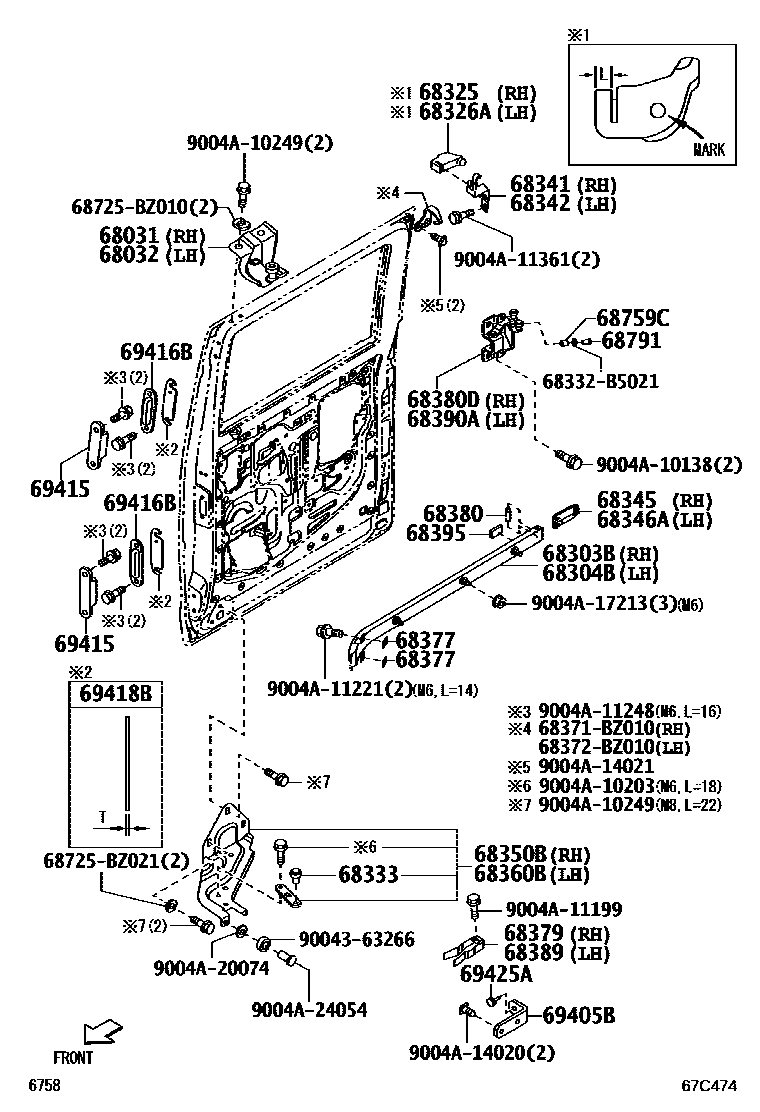

SLIDE ROLLER & RAIL

68031ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, RH

main68031-BZ020iS403..HRF202212

68032ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, LH

main68032-BZ020iS403..HRF202212

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-B5021iS403..HRF202212

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-B5031iS403..HRF202212

68325CUSHION, SLIDE DOOR UPPER RAIL, RH

main68325-BZ041iS403..HRF202212

MARK=6R,L=8.5

main68325-BZ051iS403..HRF202212

MARK=3R,L=11.5

68326ACUSHION, SLIDE DOOR UPPER RAIL, LH

main68326-BZ031iS403..HRF202212

MARK=6L,L=8.5

main68326-BZ041iS403..HRF202212

MARK=3L,L=11.5

68333ROLLER, SLIDE DOOR CENTER, NO.1

main68332-B5011×2iS403..HRF202212

68341BASE, SLIDE DOOR UPPER ROOLER, RH

main68033-BZ010iS403..HRF202212

68342BASE, SLIDE DOOR UPPER ROOLER, LH

main68034-BZ010iS403..HRF202212

68345COVER, SLIDE DOOR CENTER RAIL

main68345-BZ011iS403..HRF202212

68346ACOVER, SLIDE DOOR CENTER RAIL, LH

main68346-BZ011iS403..HRF202212

68350BROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-BZ013iS403..HRF202212

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-BZ013iS403..HRF202212

68377PAD, SLIDE DOOR CENTER RAIL, FRONT

main68377-97502×4iS403..HRF202212

68379SPRING, SLIDE DOOR CATCH, RH

main68379-B5010iS403..HRF202212

68380CUSHION ASSY, SLIDE DOOR

main52209-BZ010×2iS403..HRF202212

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-BZ050iS403..HRF202212

68389SPRING, SLIDE DOOR CATCH, LH

main68389-B5010iS403..HRF202212

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-BZ050iS403..HRF202212

68395PACKING, SLIDE DOOR CENTER RAIL

main68395-BZ010×2iS403..HRF202212

68759CSPACER, CENTER DOOR HINGE

main68759-B5010×2iS403..HRF202212

68791PIN, DOOR HINGE, NO.1

main68791-BZ020×2iS403..HRF202212

69405BSTOP SUB-ASSY, SLIDE DOOR OPEN

main69416-BZ010×2iS403..HRF202212

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69043-BZ011×4iS403..HRF202212

69416BSTOPPER, SLIDE DOOR DOWN MALE

main69413-BZ010×4iS403..HRF202212

69418BSHIM, SLIDE DOOR DOWN STOP MALE

main69418-BZ020iS403..HRF202212

T=0.5

main69418-BZ030iS403..HRF202212

T=1.0

main69418-BZ040iS403..HRF202212

T=1.5

main69418-BZ050iS403..HRF202212

T=2.0

69425ACUSHION, SLIDE DOOR STOP

main69419-87502×2iS403..HRF202212

68332B5021REINFORCEMENT, SLIDE DOOR CENTER RAIL

main68332-B5021

68371BZ010

main68371-BZ010

68372BZ010

main68372-BZ010

68725BZ010PIN, DOOR HINGE

main68725-BZ010

68725BZ021PIN, DOOR HINGE

main68725-BZ021

9004363266

main90043-63266

9004A10138

main9004A-10138

9004A10203

main9004A-10203

9004A10249

main9004A-10249

9004A11199

main9004A-11199

9004A11221

main9004A-11221

9004A11248

main9004A-11248

9004A11361

main9004A-11361

9004A14020

main9004A-14020

9004A14021

main9004A-14021

9004A17213

main9004A-17213

9004A20074

main9004A-20074

9004A24054

main9004A-24054

45 parts on this diagram · 1 diagram in section
