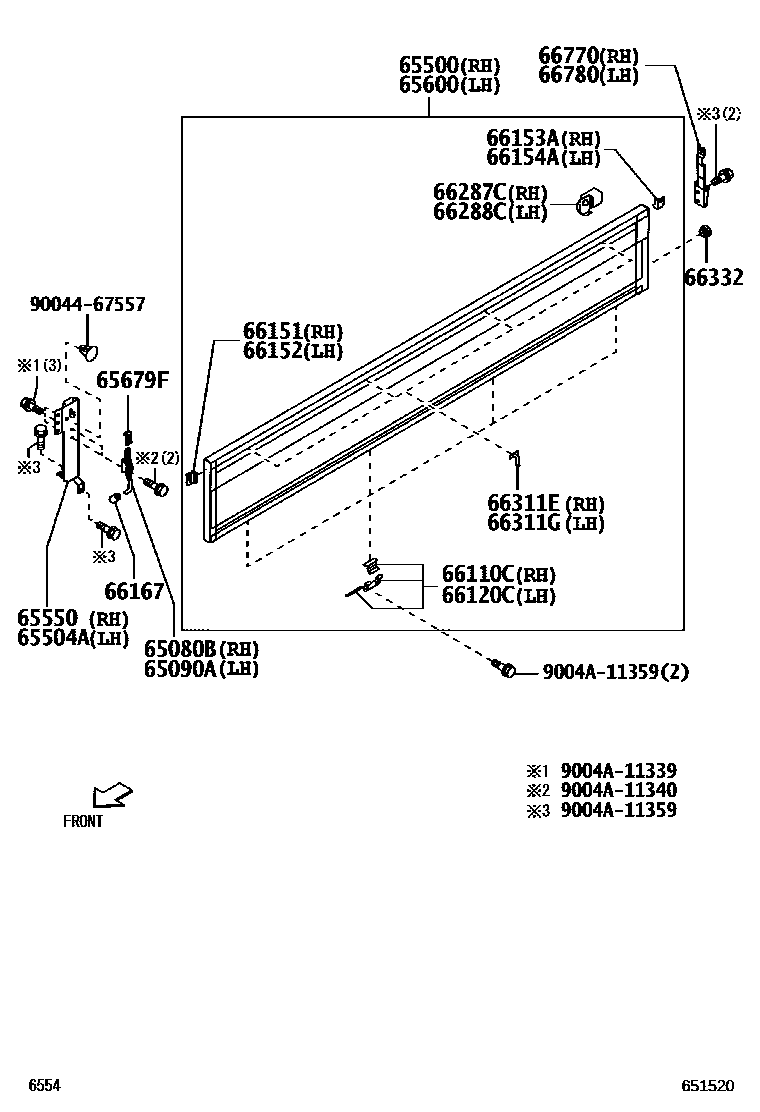

REAR BODY SIDE PANEL
65080BHANDLE ASSY, SIDE GATE LATCH
65090AHANDLE ASSY, SIDE GATE LATCH, LH
65500PANEL ASSY, REAR BODY SIDE, RH
65504APOST SUB-ASSY, SIDE PANEL FRONT END, LH
65550POST ASSY, SIDE PANEL FRONT END, RH
65600PANEL ASSY, REAR BODY SIDE, LH
65679FPROTECTOR, SIDE GATE
66110CHINGE ASSY, SIDE GATE, NO.1 RH
66120CHINGE ASSY, SIDE GATE, NO.1 LH
66151LATCH, SIDE GATE FEMALE, RH
66152LATCH, SIDE GATE FEMALE, LH
66153ALATCH, TAIL GATE FEMALE, RH
66154ALATCH, TAIL GATE FEMALE, LH
66167CAP, SIDE GATE LATCH HANDLE
66287CBRACKET, TAIL GATE CHAIN, RH
66288CBRACKET, TAIL GATE CHAIN, LH
66311EHOOK, ROPE
66311GHOOK, ROPE
66332CUSHION, RUBBER
66770SUPPORT SUB-ASSY, SIDE GATE, RH
66780SUPPORT SUB-ASSY, SIDE GATE, LH
9004467557
main90044-67557
9004A11339
main9004A-11339
9004A11340
main9004A-11340
9004A11359
main9004A-11359
25 parts on this diagram · 1 diagram in section
