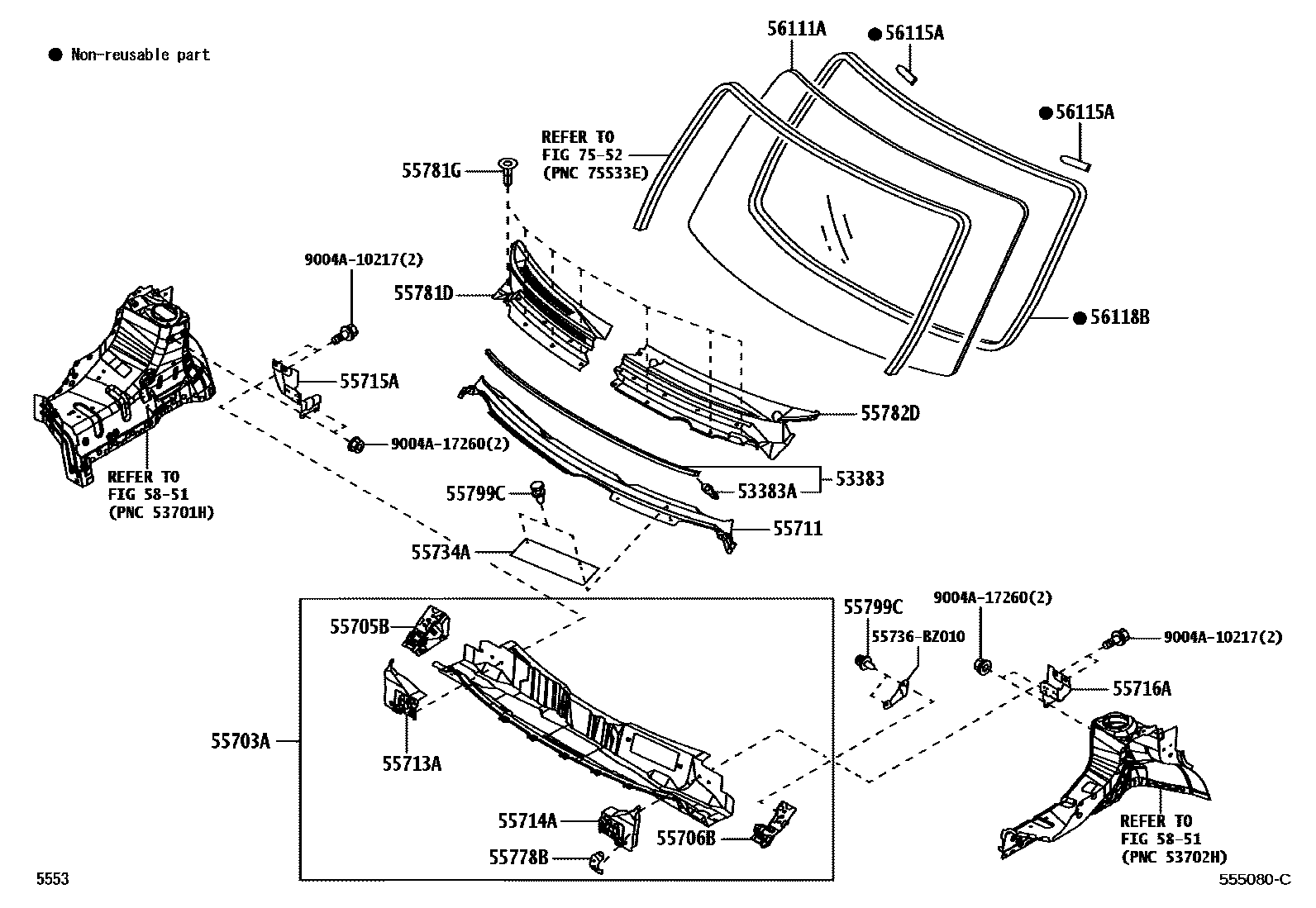

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1 0003 1 0004 1

53383SEAL, HOOD TO COWL TOP

main53383-BZ050iS403202201

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90044-67533×7iS403202201

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-BZ380iS403202201

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-BZ060iS403202201

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-BZ060iS403202201

55711PANEL, COWL TOP, OUTER

main55701-BZ120iS403202201

55713APANEL, COWL TOP SIDE, RH

main61121-BZ040iS403202201

55714APANEL, COWL TOP SIDE, LH

main61122-BZ040iS403202201

55715ABRACE, COWL TOP TO APRON, RH

main55715-BZ010iS403202201

55716ABRACE, COWL TOP TO APRON, LH

main55716-BZ010iS403202201

55734APLATE, WATER GUARD, RH

main55734-BZ010iS403202201

55778BBRACKET, IDENTIFICATION NUMBER PLATE

main55774-BZ300iS403202201

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-BZ090iS403202201

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90044-67620-C1×7iS403202201

BLACK

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-BZ080iS403202201

55799CCLIP, COWL TOP VENTILATOR LOUVER

main9004A-46323×4iS403202201

56111AGLASS, WINDSHIELD

main56101-BZ760iS403..4FC..D202201

main56111-BZE40iS403..5F;S403..4FC..R202201

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-BZ080×2iS403202201

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56117-BZ060iS403202201

L=2652

5851

7552

55736BZ010SEAL, WATER GUARD PLATE

main55736-BZ010

9004A10217

main9004A-10217

9004A17260

main9004A-17260

24 parts on this diagram · 4 diagrams in section
