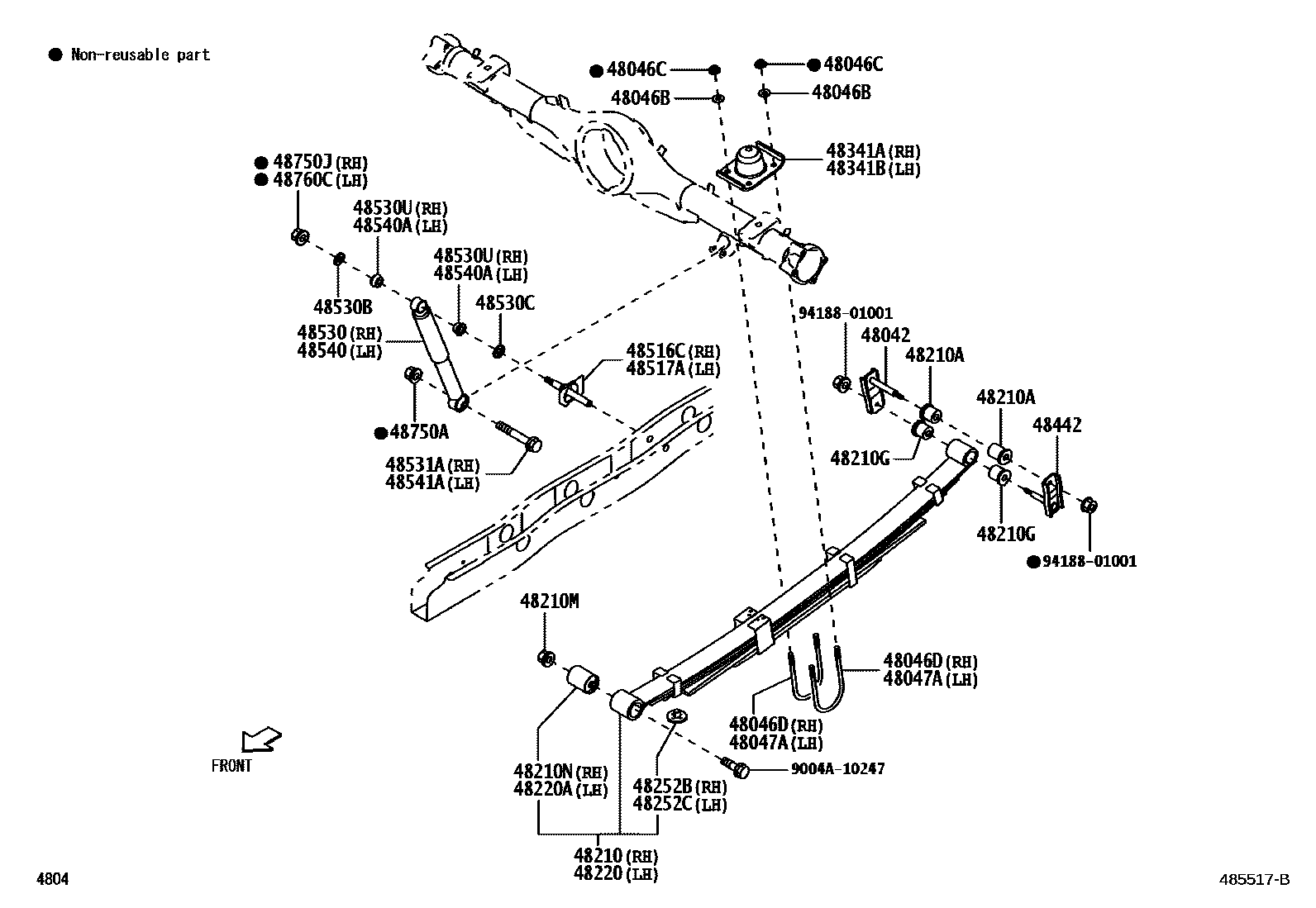

REAR SPRING & SHOCK ABSORBER
48042SHACKLE SUB-ASSY, REAR SPRING, NO.2
48046BWASHER(FOR REAR SPRING U BOLT)
48046CNUT(FOR REAR SPRING U BOLT)
48046DBOLT, U(FOR REAR SPRING RH)
48047ABOLT, U(FOR REAR SPRING LH)
48210SPRING ASSY, REAR RH
48210ABUSH(FOR REAR SPRING SHACKLE UPPER)
48210GBUSH(FOR REAR SPRING SHACKLE LOWER)
48210MNUT(FOR REAR SPRING)
48210NBUSH(FOR REAR SPRING LEAF RH)
48220SPRING ASSY, REAR LH
48220ABUSH(FOR REAR SPRING LEAF LH)
48252BSILENCER, REAR SPRING, NO.1
RH
48252CSILENCER, REAR SPRING, NO.2
LH
48442SHACKLE, SPRING, NO.2
48516BRACKET, REAR SHOCK ABSORBER, UPPER RH
48516CBRACKET, REAR SHOCK ABSORBER, NO.1 RH
48517BRACKET, REAR SHOCK ABSORBER, UPPER LH
48517ABRACKET, REAR SHOCK ABSORBER, NO.1 LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-BZ120
MARK 48531-BZC30
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530UBUSH(FOR REAR SHOCK ABSORBER RH)
48531ABOLT, UNION(FOR REAR SHOCK ABSORBER RH)
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-BZ120
MARK 48531-BZC30
48540ABUSH(FOR REAR SHOCK ABSORBER LH)
48541ABOLT, UNION(FOR REAR SHOCK ABSORBER LH)
48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
9004A10247
main9004A-10247
9418801001
main94188-01001
34 parts on this diagram · 2 diagrams in section
