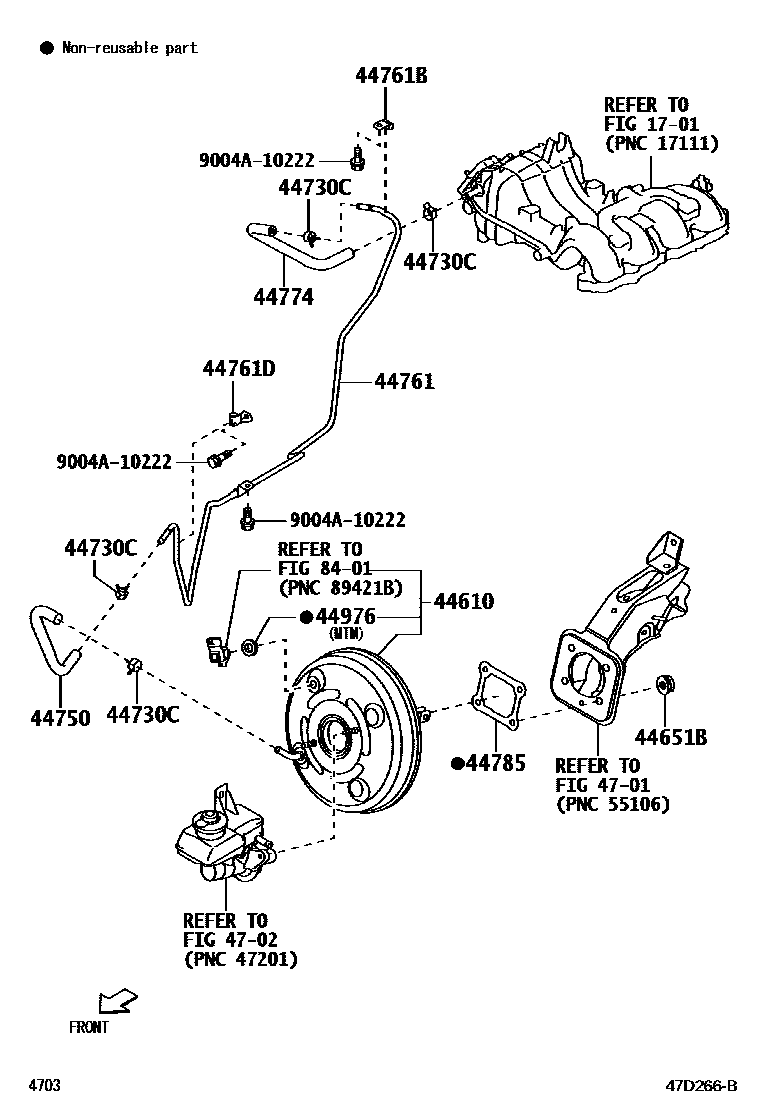

BRAKE BOOSTER & VACUUM TUBE

1701

44610BOOSTER ASSY, BRAKE

main44610-BZA80iS403202201

44651BNUT, BOOSTER

main90041-79300×4iS403202201

44730CCLIP(FOR VACUUM HOSE)

main9004A-46337×4iS403202201

44750HOSE ASSY, VACUUM

main44750-BZ520iS403202201

44761TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

main44761-BZ090iS403202201

44761BCLAMP, CONNEECTOR TUBE

main90044-62270iS403202201

44761DCLAMP, VACUUM CHECK VALVE TO CONNECTOR TUBE

main9004A-46399iS403202201

44774HOSE, UNION TO CONNECTOR TUBE

main44774-BZ080iS403202201

44785GASKET, BRAKE BOOSTER

main47275-BZ010iS403202201

sub47278-87703

44976SEAL, BOOSTER

main44685-B2010iS403..5F202201

4701

4702

8401

9004A10222

main9004A-10222

15 parts on this diagram · 1 diagram in section
