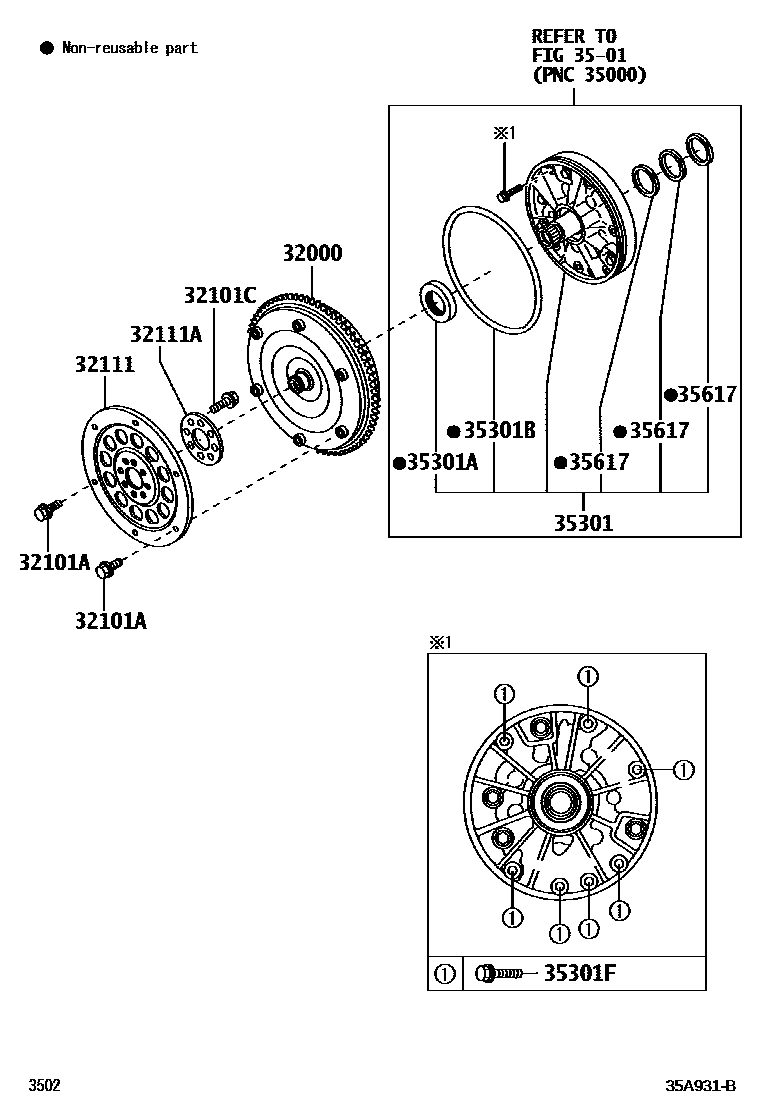

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-B5130iS403..4FC202201

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90041-05595iS403..4FC202201

M8,L=9,SILVER

main90041-05596×5iS403..4FC202201

M8,L=9,BLACK

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main9004A-10200×8iS403..4FC202201

32111PLATE, PUMP IMPELLER DRIVE

main32111-BZ070iS403..4FC202201

32111APLATE(FOR PUMP IMPELLER DRIVE PLATE)

main32113-BZ030iS403..4FC202201

3501

35301BODY SUB-ASSY, FRONT OIL PUMP

main35310-B1050iS403..4FC202201

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90043-11336iS403..4FC202201

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90043-01161iS403..4FC202201

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90041-05122×7iS403..4FC202201

35617RING, CLUTCH DRUM OIL SEAL

main35653-B1010×3iS403..4FC202201

11 parts on this diagram · 1 diagram in section
