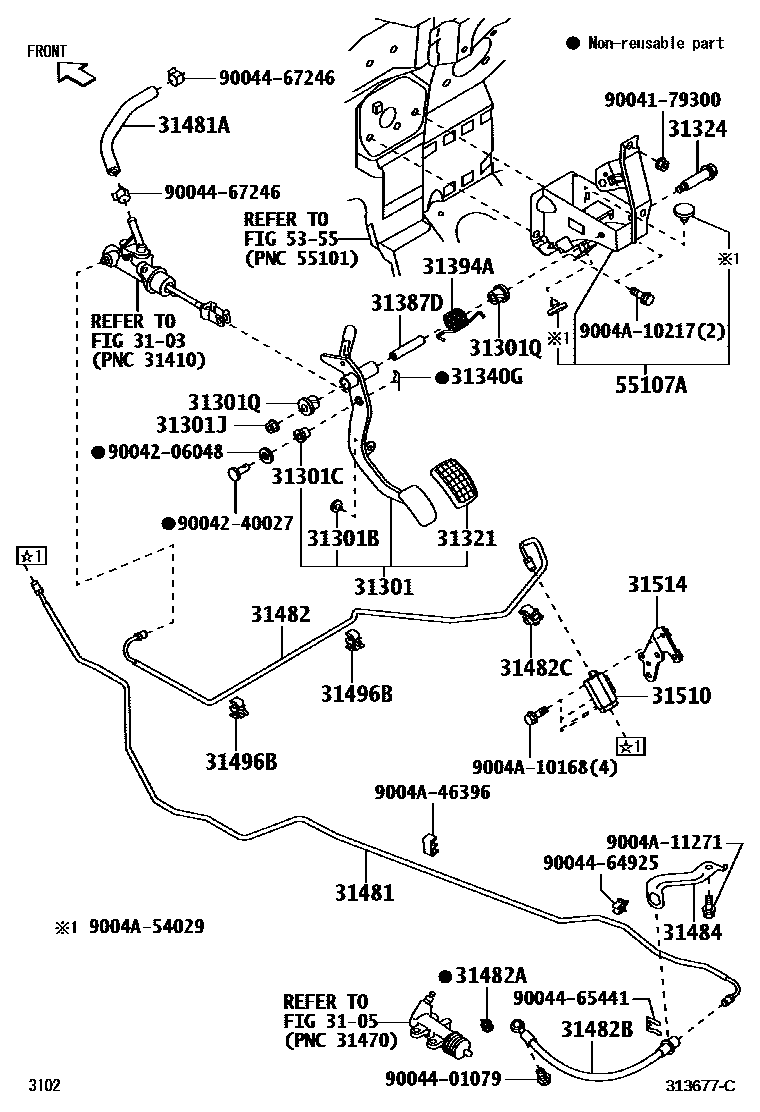

CLUTCH PEDAL & FLEXIBLE HOSE

3103

3105

31301PEDAL SUB-ASSY, CLUTCH

main31301-BZ610iS403..5F202201

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main9004A-54003iS403..5F202201

31301CBUSH(FOR CLUTCH PEDAL)

main90043-86123iS403..5F202201

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main9004A-17260iS403..5F202201

31301QBUSH(FOR CLUTCH PEDAL SPRING)

main9004A-38094iS403..5F202201

31321PAD, CLUTCH PEDAL

main31321-BZ130iS403..5F202201

31324SHAFT, CLUTCH PEDAL

main91551-80880iS403..5F202201

31340GCLIP(FOR CLUTCH RELEASE CABLE)

main90044-68076iS403..5F202201

31387DSPACER(FOR CLUTCH RELEASE SECTOR)

main9004A-56111iS403..5F202201

31394ASPRING, PEDAL W/HOOK

main31394-BZ230iS403..5F202201

31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

main31482-BZ250iS403..5F202201

31481AHOSE, CLUTCH, NO.1

main31434-B5030iS403..5F202201

31482TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE

main31482-BZ230iS403..5F202201

31482AGASKET(FOR CLUTCH RELEASE CYLINDER)

main47389-97201iS403..5F202201

31482BHOSE, CLUTCH, NO.2

main9004A-94098iS403..5F202201-202211

sub9004A-94159

main9004A-94159iS403..5F202212

31482CCLAMP(FOR CLUTCH TUBE)

main47372-B2040iS403..5F202201

31484BRACKET, FLEXIBLE HOSE(FOR CLUTCH)

main31484-BZ020iS403..5F202201

31496BCLAMP, CLUTCH TUBE

main77286-B5030iS403..5F202201

31510ORIFICE ASSY, CLUTCH

main31510-B5050iS403..5F202201

31514BRACKET, CLUTCH ORIFICE

main31514-BZ050iS403..5F202201

5355

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-BZ510iS403..5F202201

9004179300

main90041-79300

9004206048

main90042-06048

9004240027

main90042-40027

9004401079

main90044-01079

9004464925

main90044-64925

9004465441

main90044-65441

9004467246

main90044-67246

9004A10168

main9004A-10168

9004A10217

main9004A-10217

9004A11271

main9004A-11271

9004A46396

main9004A-46396

9004A54029

main9004A-54029

36 parts on this diagram · 1 diagram in section
