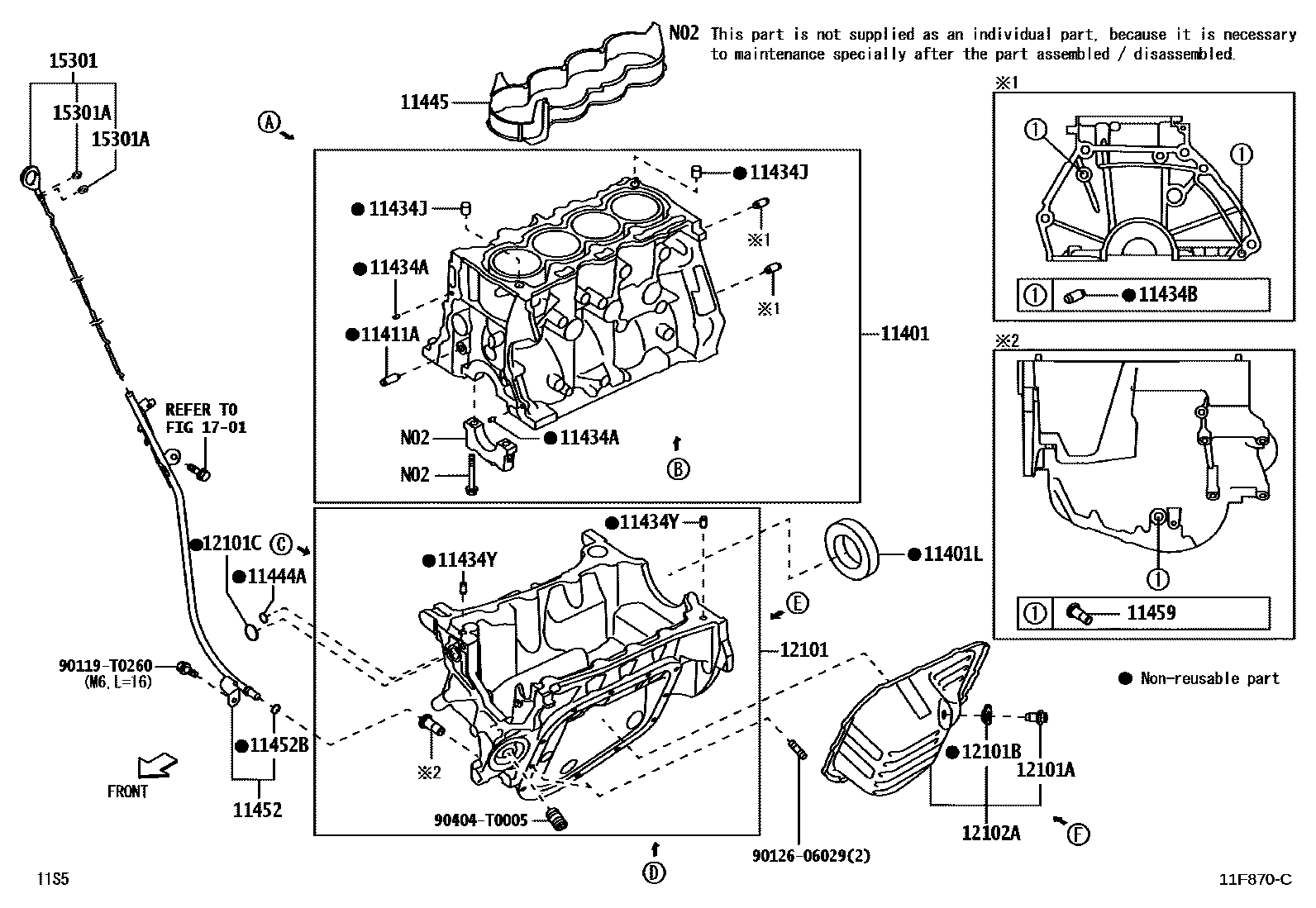

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
11401LSEAL, ENGINE REAR OIL
11411APIN, RING(FOR CYLINDER BLOCK NO.1 )
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
L=22,OD=10
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434YPIN, STRAIGHT(FOR OIL PAN)
11444ARING, O
11445SPACER, CYLINDER BLOCK WATER JACKET
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
11459SUPPORT, OIL LEVEL GAGE GUIDE
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12101CRING, O(FOR OIL PAN)
12102APAN SUB-ASSY, OIL, NO.2
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
1701
90119T0260
main90119-T0260
9012606029
main90126-06029
90404T0005
main90404-T0005
23 parts on this diagram · 3 diagrams in section
