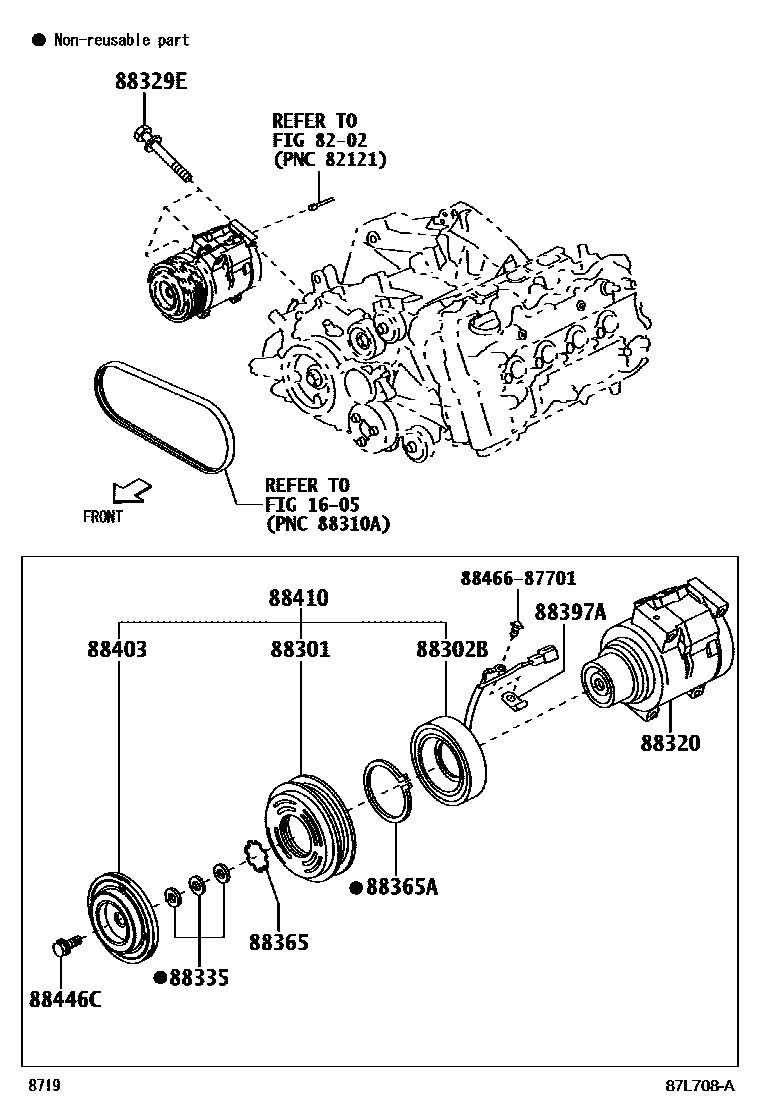

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

1605

8202

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-BZ070iS403..VAN202205

main88412-BZ160iS403..T2202205

88302BSTATOR, MAGNET CLUTCH

main88411-BZ240iS403..T2202205

main88411-BZ250iS403..VAN..(CRI,GEN,MMR)202205

main88411-BZ280iS403..GCC202205

88320COMPRESSOR ASSY, COOLER

main88320-BZ120iS403..VAN..(CRI,GEN,MMR)202205

main88320-BZ370iS403..T2202205

main88320-BZ420iS403..GCC202205

88329EBOLT, COMPRESSOR, NO.1

main88329-BZ050×4iS403202205

88335GASKET KIT, OVERHAUL

main88335-14020iS403202205

88365RING, SNAP

main90099-07065iS403..VAN..(CRI,GEN,MMR)202205

main90099-07125iS403..T2;S403..GCC202205

88365ARING, SNAP (FOR COMPRESSOR)

main90099-07114iS403202205

88397ACLIP, COMPRESSOR

main85369-87702iS403..CRI,GEN,MMR,THAI202205

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-87301iS403..VAN202205

main88403-BZ080iS403..T2202205

88410CLUTCH ASSY, MAGNET

main88410-BZ360iS403..T2202205

main88410-BZ370iS403..VAN..(CRI,GEN,MMR)202205

main88410-BZ420iS403..GCC202205

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iS403202205

8846687701

main88466-87701

14 parts on this diagram · 3 diagrams in section
