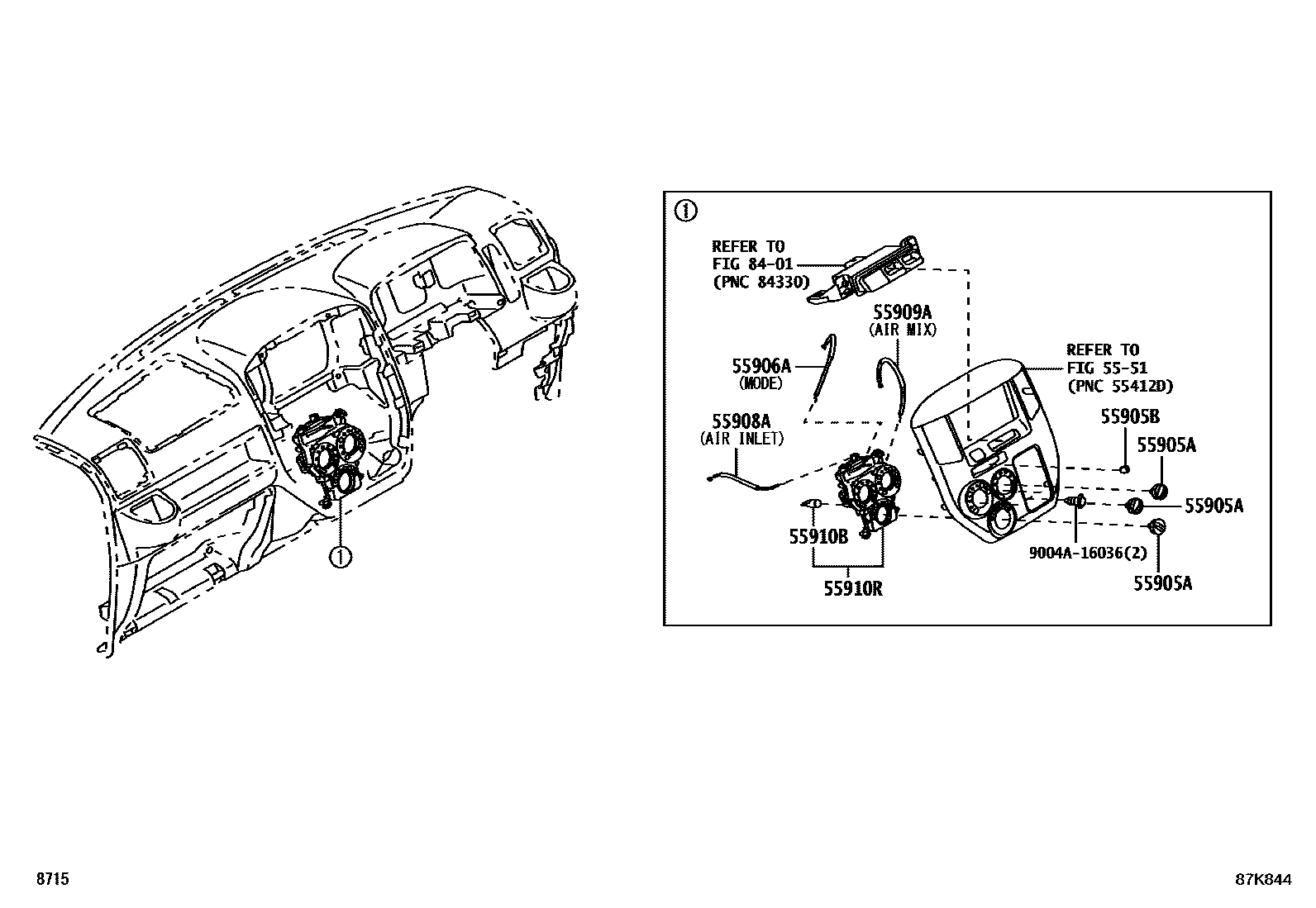

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1AIR DUCT 0003 1CONTROL PANEL 0004 1AIR DUCT

5551

55905AKNOB, HEATER CONTROL

main55905-BZ140iS403202205

55905BKNOB, HEATER CONTROL, NO.2

main55905-BZ150iS403202205

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-BZ080iS403202205

FOR DOOR,MODE

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-BZ080iS403202205

FOR DOOR,AIR INLET

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-BZ030iS403..RHD202205

FOR DOOR,AIR MIX

main55909-BZ050iS403..LHD202205

FOR DOOR,AIR MIX

55910BBULB, HEATER CONTROL

main81936-BZ020iS403202205

55910RCONTROL ASSY, HEATER

main55910-BZ171iS403..RHD202205

main55910-BZ201iS403..LHD202205

8401

9004A16036

main9004A-16036

10 parts on this diagram · 4 diagrams in section
