TIRE PRESSURE WARNING SYSTEM

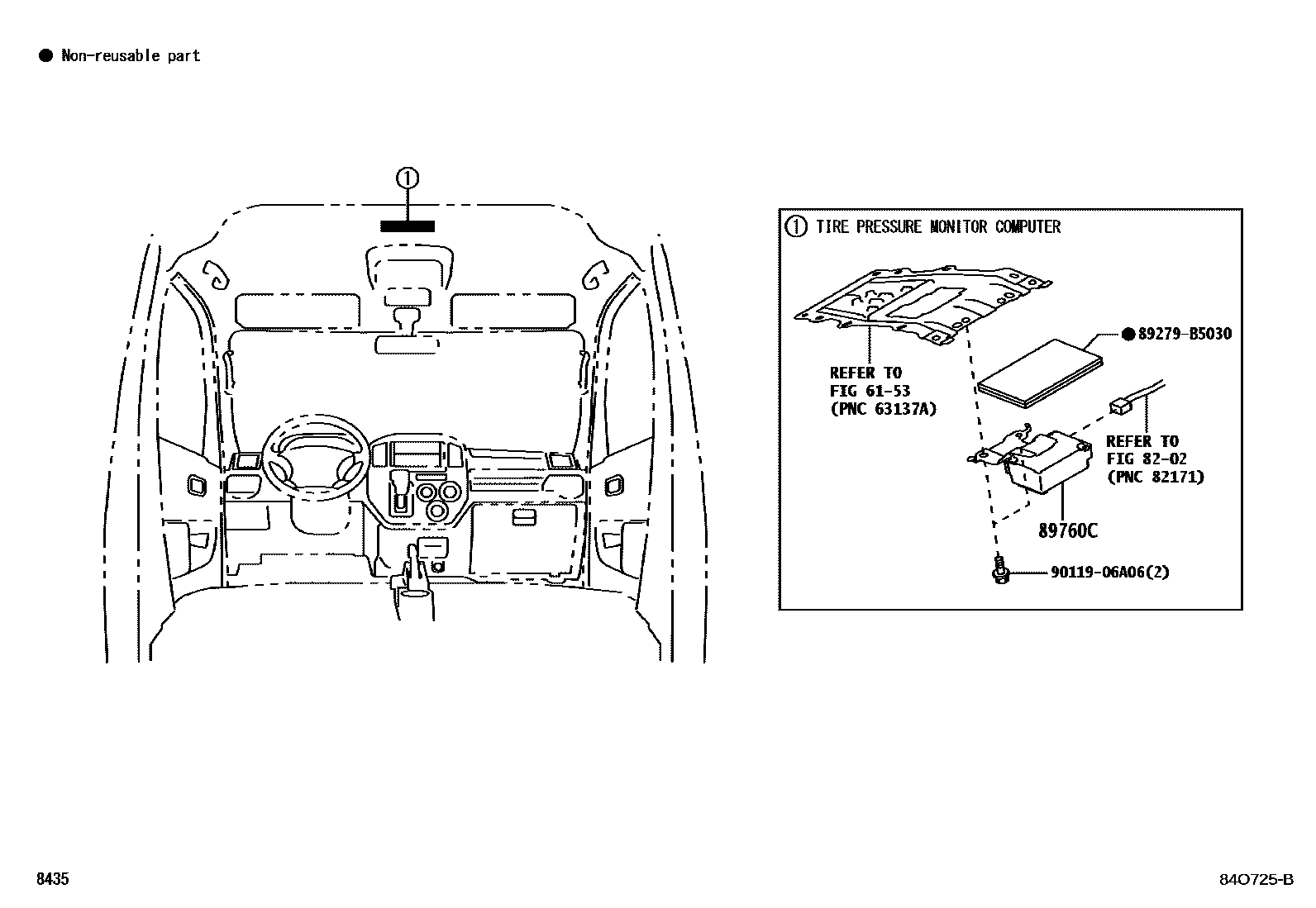

Parts diagram

6153

8202

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-B5010i202205-202301

main89760-B5011i202302

89279B5030COVER, ENGINE CONTROL COMPUTER

main89279-B5030

9011906A06

main90119-06A06

5 parts on this diagram · 1 diagram in section
