WIRING & CLAMP

0001 1ENGINE 0002 1INSTRUMENT PANEL 0003 1INSTRUMENT PANEL 0004 1DOOR & ROOF 0005 1DOOR & ROOF 0006 1FLOOR 0007 1FLOOR

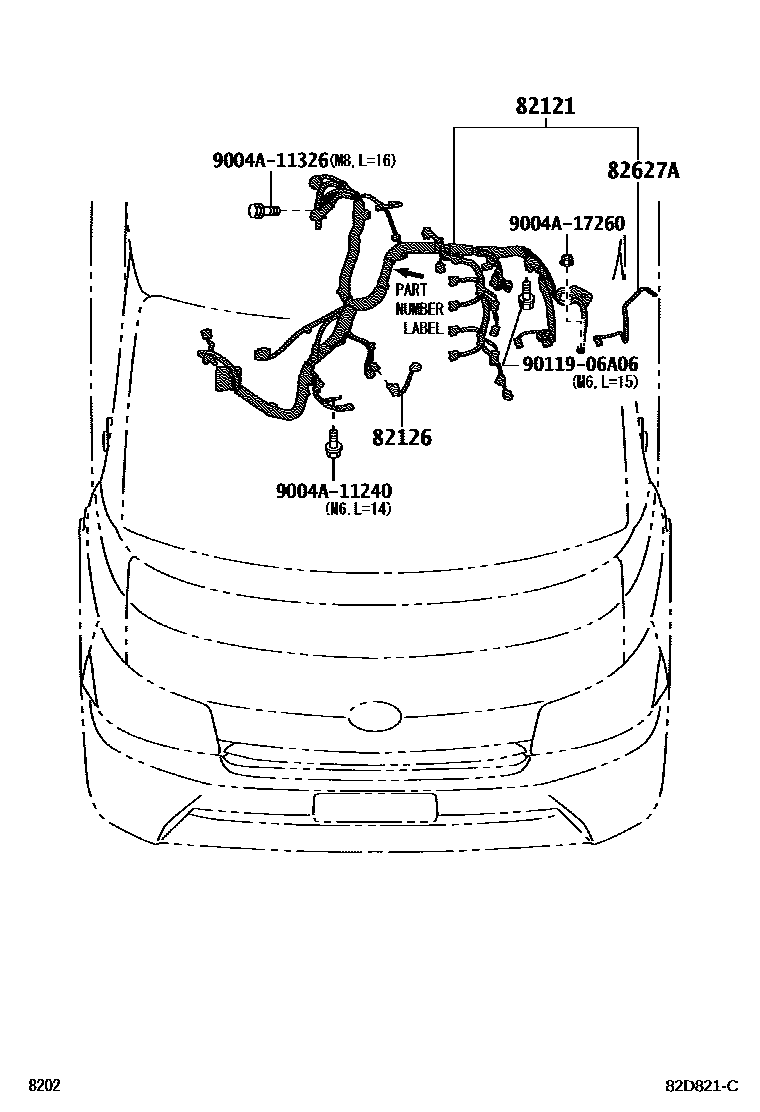

82121WIRE, ENGINE

main82121-BZK70iS403..5F202205

W/PART NUMBER LABEL

main82121-BZK90iS403..LHD..T2..GEN202205-202503

G - ABS&W/O ABS(ANTI-LOCK BRK SYSTM),W/PART NUMBER LABEL

main82121-BZL00iS403..4FC202205

W/PART NUMBER LABEL

82126WIRE, ENGINE

main82126-BZ070iS403202205

82627AWIRE, FUSIBLE LINK

main82627-BZ170iS403202205

9004A11240

main9004A-11240

9004A11326

main9004A-11326

9004A17260

main9004A-17260

9011906A06

main90119-06A06

7 parts on this diagram · 7 diagrams in section
