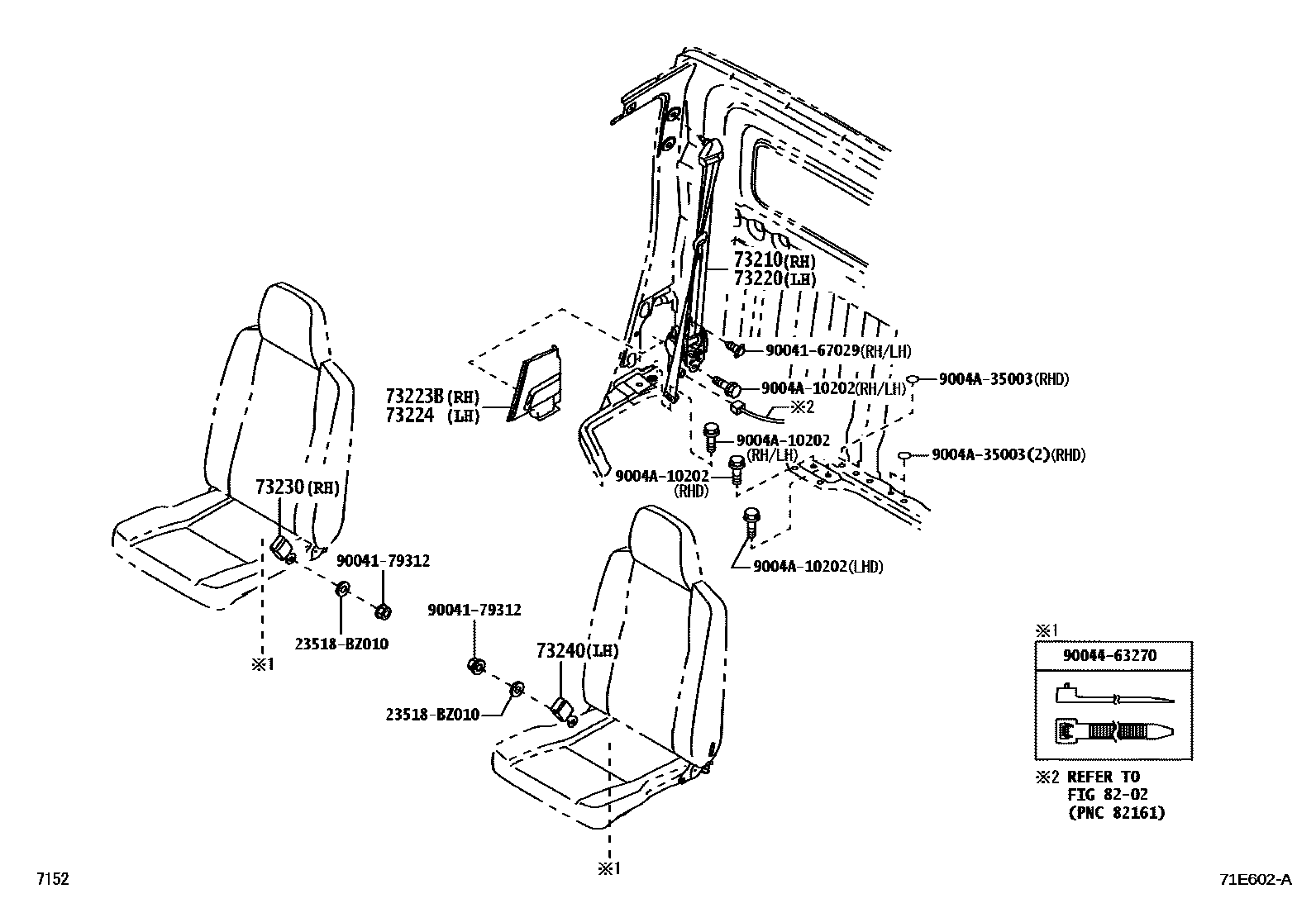

SEAT BELT

0001 1 0002 1FR 0003 1FR 0004 1REAR

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-BZ550-B0iS403..T2202205

SHADOW GRAY,TRIM1#

main73210-BZ720-B0iS403..GCC202205

SHADOW GRAY,TRIM1#

main73210-BZ730-B0iS403..VAN..(CRI,GEN,MMR)202205

SHADOW GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-BZ540-B0iS403..T2202205

SHADOW GRAY,TRIM1#

main73220-BZ591-B0iS403..VAN..(CRI,GEN,MMR)202205

SHADOW GRAY,TRIM1#

main73220-BZ600-B0iS403..GCC202205

SHADOW GRAY,TRIM1#

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-BZ021-B0iS403..T2202205

DK.GRAY,TRIM1#

main73223-BZ040-B0iS403..LHD..VAN..(CRI,GEN,MMR)202205-202208

DK.GRAY,TRIM1#

main73223-BZ060-B0iS403..LHD..VAN..(CRI,GEN,MMR)202208

DK.GRAY,TRIM1#

73224COVER, FRONT SEAT BELT RETRACTOR, LH

main73224-BZ020-B0iS403..T2202205

DK.GRAY,TRIM1#

main73224-BZ040-B0iS403..VAN202205

DK.GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-BZA20-C1iS403..VAN..(CRI,GEN,MMR)202205

BLACK,TRIM1#

main73230-BZA40-B0iS403..T2;S403..GCC202205

DK.GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-BZ820-B0iS403..GCC202205

DK.GRAY,TRIM1#

main73230-BZA30-C1iS403..VAN..(CRI,GEN,MMR)202205

BLACK,TRIM1#

main73230-BZA40-B0iS403..T2202205

DK.GRAY,TRIM1#

8202

23518BZ010WASHER, WAVE(FOR ELASTIC FACE VALVE SET)

main23518-BZ010

9004167029

main90041-67029

9004179312

main90041-79312

9004463270

main90044-63270

9004A10202

main9004A-10202

9004A35003

main9004A-35003

13 parts on this diagram · 4 diagrams in section
