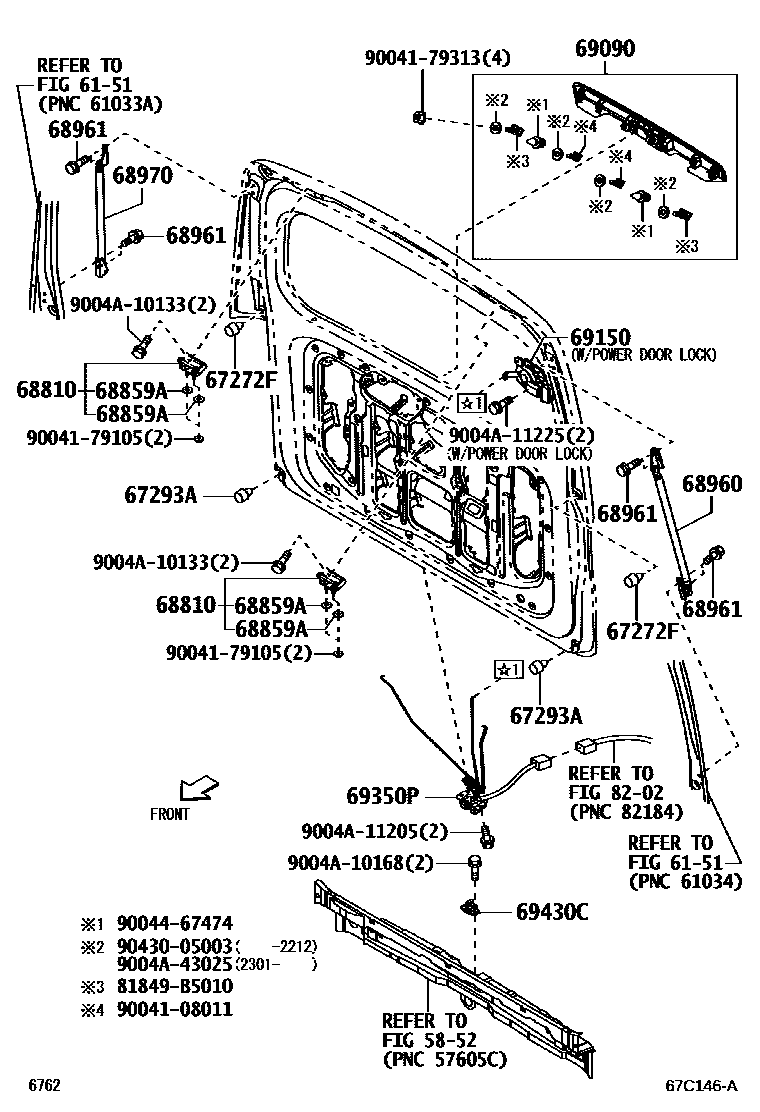

BACK DOOR LOCK & HINGE

5852

6151

67272FCUSHION, BACK DOOR STOPPER, NO.2

main9004A-54016iS403..VAN¥170202205

67293ACUSHION, BACK DOOR STOPPER

main9004A-54015iS403..VAN¥220202205

68810HINGE ASSY, BACK DOOR, UPPER

main68801-BZ091iS403..VAN¥1,390202205

TYPE B:REFER ILLUST.

68859ASPACER, BACK DOOR HINGE COVER

main68859-BZ040iS403..VAN202205

TYPE B:REFER ILLUST.

sub68859-87201¥380

68960STAY ASSY, BACK DOOR, LH

main68960-BZ081iS403..VAN¥5,700202205

68961BOLT, BACK DOOR STAY

main90041-19710iS403..VAN¥110202205

68970STAY ASSY, BACK DOOR, RH

main68950-BZ081iS403..VAN¥5,700202205

69090HANDLE ASSY, BACK DOOR, OUTSIDE

main69090-BZ050iS403..VAN¥6,300202205

69150ACTUATOR ASSY, BACK DOOR LOCK

main69150-BZ030iS403..VAN..5F;S403..LHD..4FC¥5,600202205

G + IMMOBI

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-B5050iS403..VAN..5F;S403..LHD..4FC¥5,700202205

main69350-B5070iS403..4FC..GEN¥8,900202205

G + IMMOBI

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-B5010iS403..VAN¥1,160202205

8202

81849B5010

main81849-B5010¥160

9004108011

main90041-08011¥210

9004179105

main90041-79105¥140

9004179313

main90041-79313¥120

9004467474

main90044-67474¥80

9004A10133

main9004A-10133

9004A10168

main9004A-10168

9004A11205

main9004A-11205

9004A11225

main9004A-11225

9004A43025

main9004A-43025¥110

9043005003

main90430-05003¥60

25 parts on this diagram · 1 diagram in section
