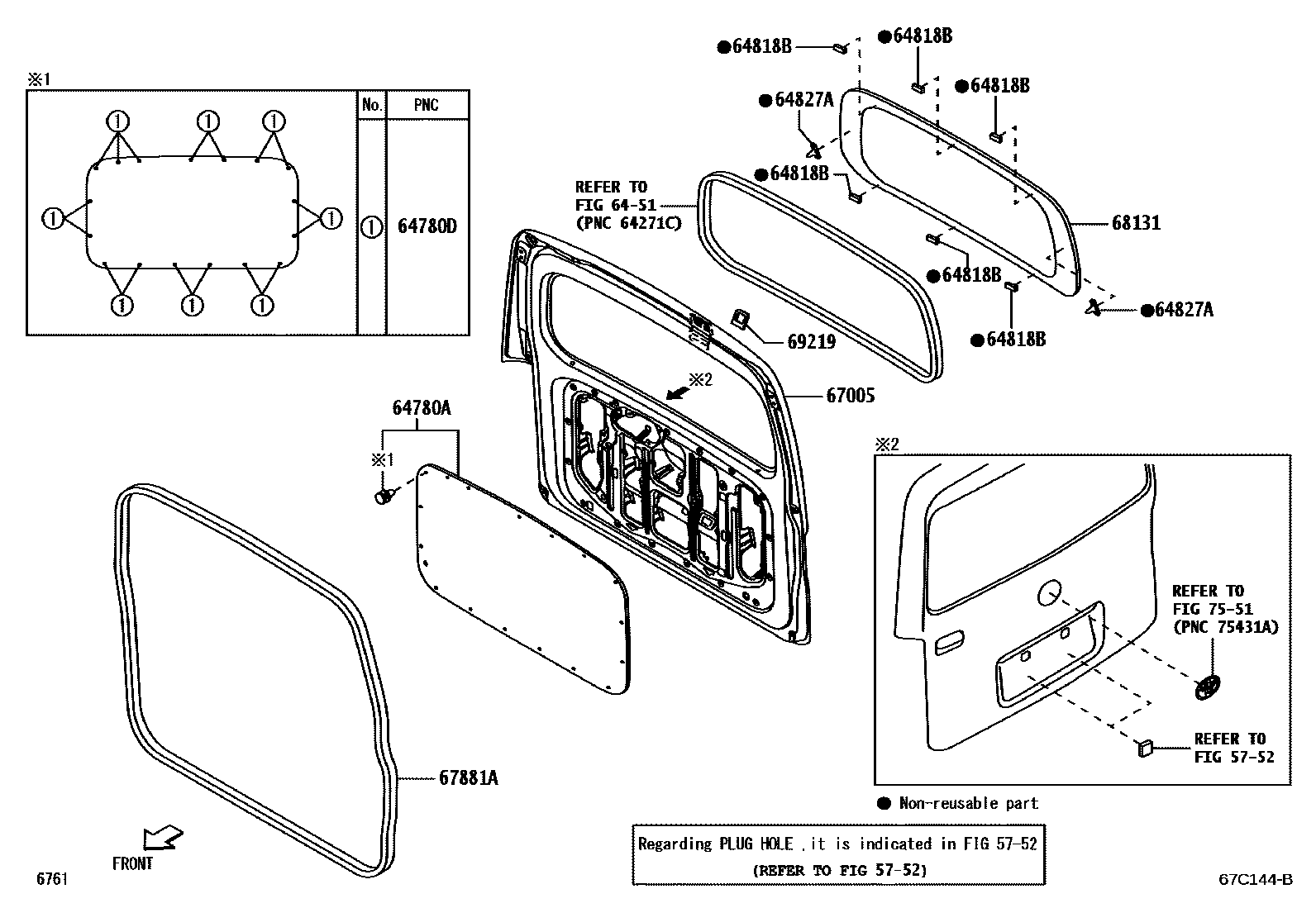

BACK DOOR PANEL & GLASS

5752

6451

64780APANEL ASSY, BACK DOOR TRIM

main64780-BZ071-B0iS403..VAN202205

DK.GRAY,TRIM1#,W/SPONGE(3)

64780DRETAINER(FOR BACK DOOR TRIM BOARD)

main67771-BZ070iS403..VAN202205

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-BZ060iS403..VAN202205

64827ACLIP, BACK WINDOW GLASS, RH

main64827-BZ030iS403..VAN202205

67005PANEL SUB-ASSY, BACK DOOR

main67005-BZ310iS403..CRI202205

main67005-BZ460iS403..VAN..(GCC,GEN,MMR)202205

67881AWEATHERSTRIP, BACK DOOR

main67881-BZ082iS403..VAN202205

FOR MOLD R.H.LINING

68131GLASS, BACK DOOR

main68131-BZ310iS403..VAN202205

69219SEAL, BACK DOOR OUTSIDE HANDLE

main69219-BZ010iS403..VAN202205

sub69219-B2010

7551

11 parts on this diagram · 1 diagram in section
