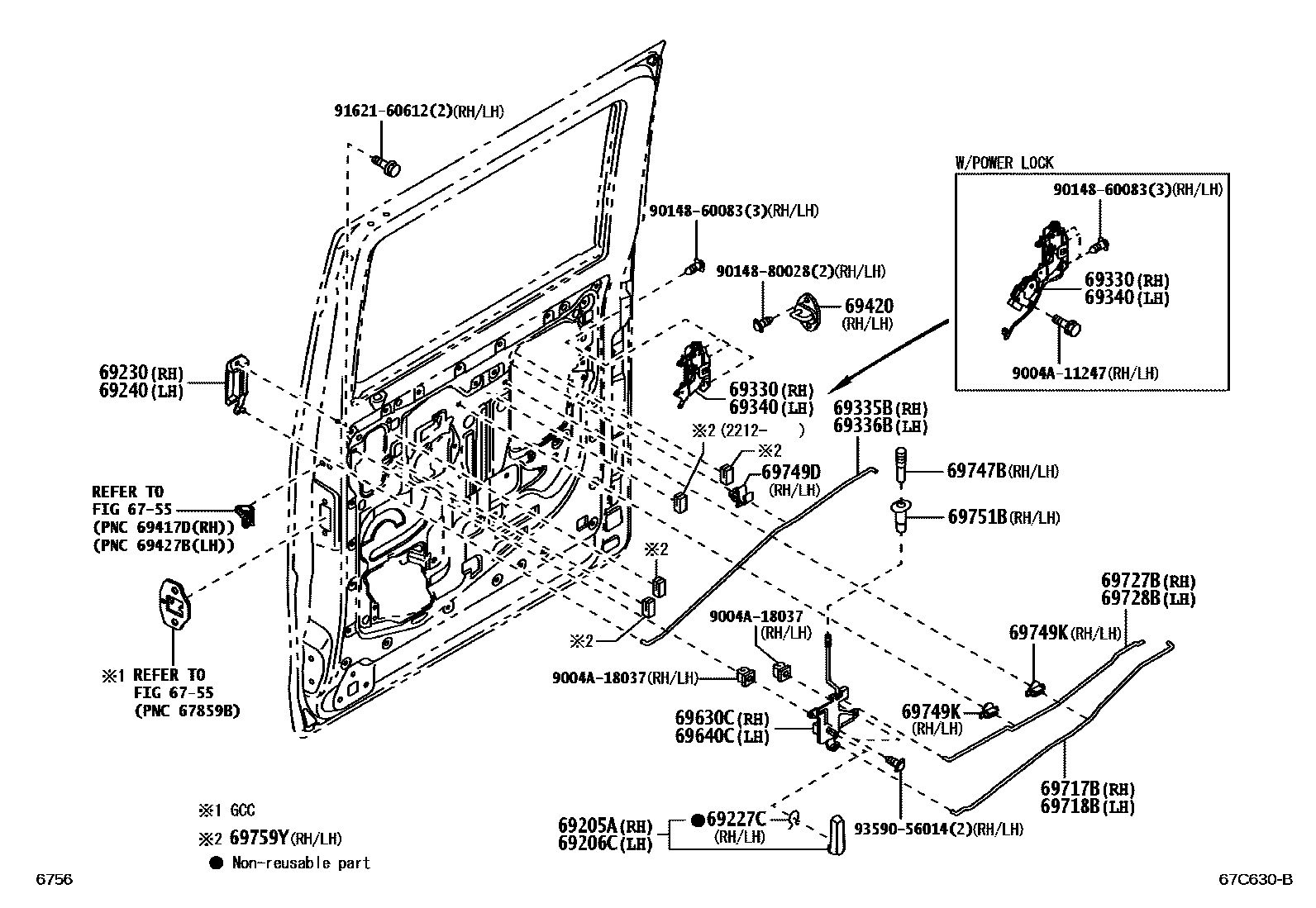

REAR DOOR LOCK & HANDLE
6755
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
DK.GRAY,TRIM1#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
DK.GRAY,TRIM1#
69227CRING, SHAFT SNAP(FOR REAR DOOR INSIDE HANDLE)
sub90520-01274
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
NO PAINT REQ.
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
NO PAINT REQ.
69330LOCK ASSY, REAR DOOR, RH
G + IMMOBI
69335BLINK, SLIDE DOOR OUTSIDE LOCKING, RH
69336BLINK, SLIDE DOOR OUTSIDE LOCKING, LH
69340LOCK ASSY, REAR DOOR, LH
G + IMMOBI
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69630CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH
69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
69727BLINK, REAR DOOR INSIDE LOCKING, NO.2 RH
69728BLINK, REAR DOOR INSIDE LOCKING, NO.2 LH
69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)
69749DCLAMP, SLIDE DOOR LOCK LINK
69749KCLAMP, REAR DOOR LOCK
sub69749-87702
69751BHOLDER, DOOR LOCKING(FOR REAR DOOR)
69759YSILENCER, REAR DOOR LOCK LINK
9004A11247
main9004A-11247
9004A18037
main9004A-18037
9014860083
main90148-60083
9014880028
main90148-80028
9162160612
main91621-60612
9359056014
main93590-56014
28 parts on this diagram · 1 diagram in section
