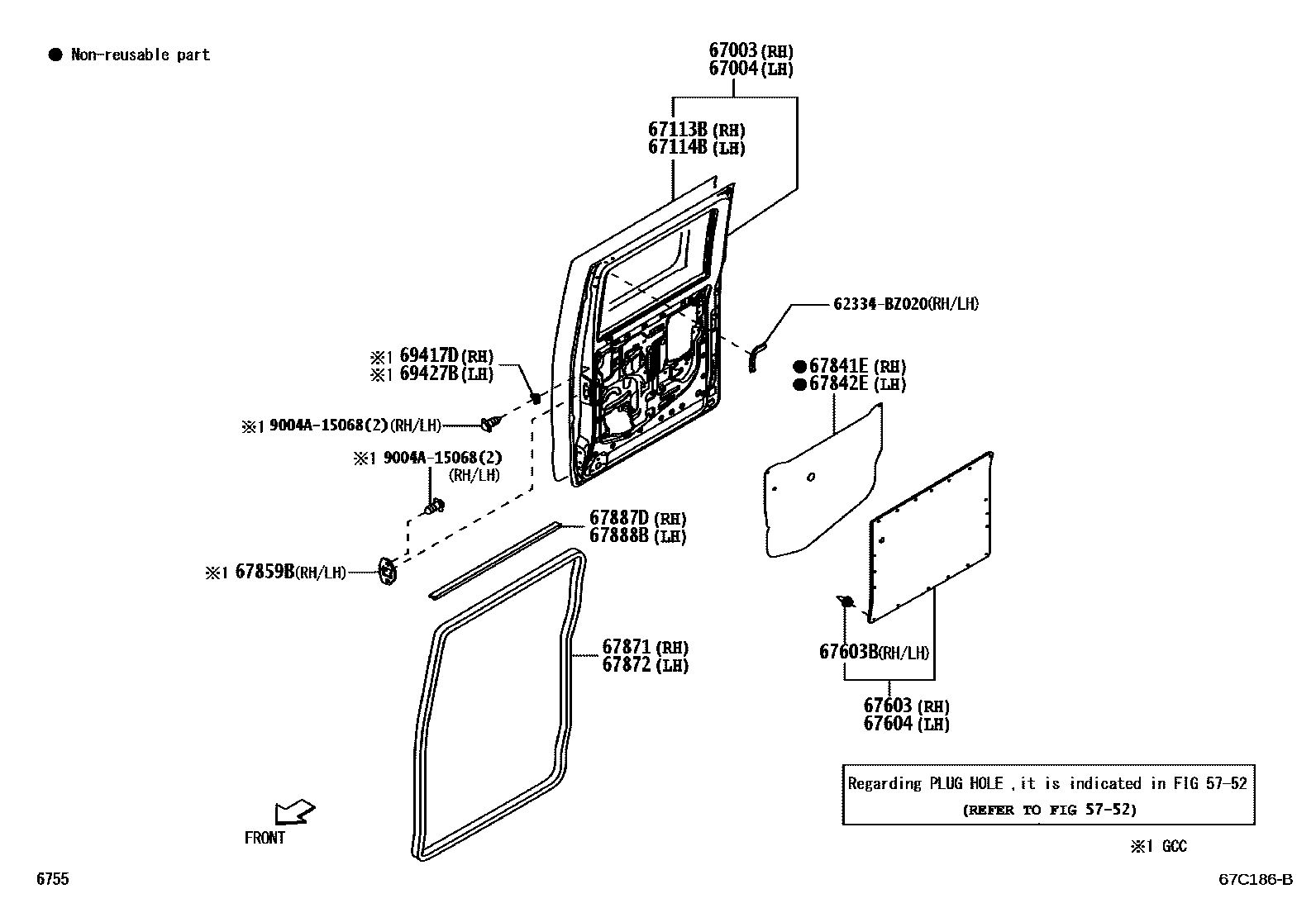

REAR DOOR PANEL & GLASS

0001 1 0002 1

5752

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-BZ211iS403..G202205

main67003-BZ241iS403..4FC..GEN202205

G + IMMOBI

main67003-BZ780iS403..GCC202205

main67003-BZ830iS403..4FC..MMR;S403..SP..5F..(CRI,GEN,MMR)202205

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-BZ221iS403..G202205

main67004-BZ251iS403..4FC..GEN202205

G + IMMOBI

main67004-BZ780iS403..GCC202205

main67004-BZ830iS403..4FC..MMR;S403..SP..5F..(CRI,GEN,MMR)202205

67113BPANEL, ACCESS PANEL, OUTSIDE RH

main67113-BZ140iS403..G202205

L/SIDE MOULDING

main67113-BZ160iS403..SP202205

67114BPANEL, ACCESS PANEL, OUTSIDE LH

main67114-BZ140iS403..G202205

main67114-BZ160iS403..SP202205

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-BZ030-B0iS403..SP202205

DK.GRAY,TRIM1#

main67630-BZ200-B1iS403..G202205

-,TRIM1#

67603BCLIP(FOR REAR DOOR TRIM BOARD)

main67771-BZ070×38iS403..VAN202205

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-BZ030-B0iS403..SP202205

DK.GRAY,TRIM1#

main67640-BZ200-B1iS403..G202205

-,TRIM1#

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-BZ140iS403..VAN202205

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-BZ140iS403..VAN202205

67859BCOVER, REAR DOOR LOWER HOLE

main68035-B5020×2iS403..GCC202205

67871WEATHERSTRIP, REAR DOOR, RH

main67871-BZ070iS403..VAN202205

67872WEATHERSTRIP, REAR DOOR, LH

main67872-BZ090iS403..VAN202205

67887DWEATHERSTRIP, SLIDE DOOR, NO.2 RH

main67887-BZ030iS403..VAN202205

67888BWEATHERSTRIP, SLIDE DOOR, NO.2 LH

main67887-BZ030iS403..VAN202205

69417DCOVER, SLIDE DOOR OPEN STOP, RH

main69480-97501iS403..GCC202205

69427BCOVER, SLIDE DOOR OPEN STOP, LH

main69480-97501iS403..GCC202205

62334BZ020PANEL, SIDE LOWER WINDOW, INNER

main62334-BZ020

9004A15068

main9004A-15068

19 parts on this diagram · 2 diagrams in section
